ES-5XP

Ubiquiti

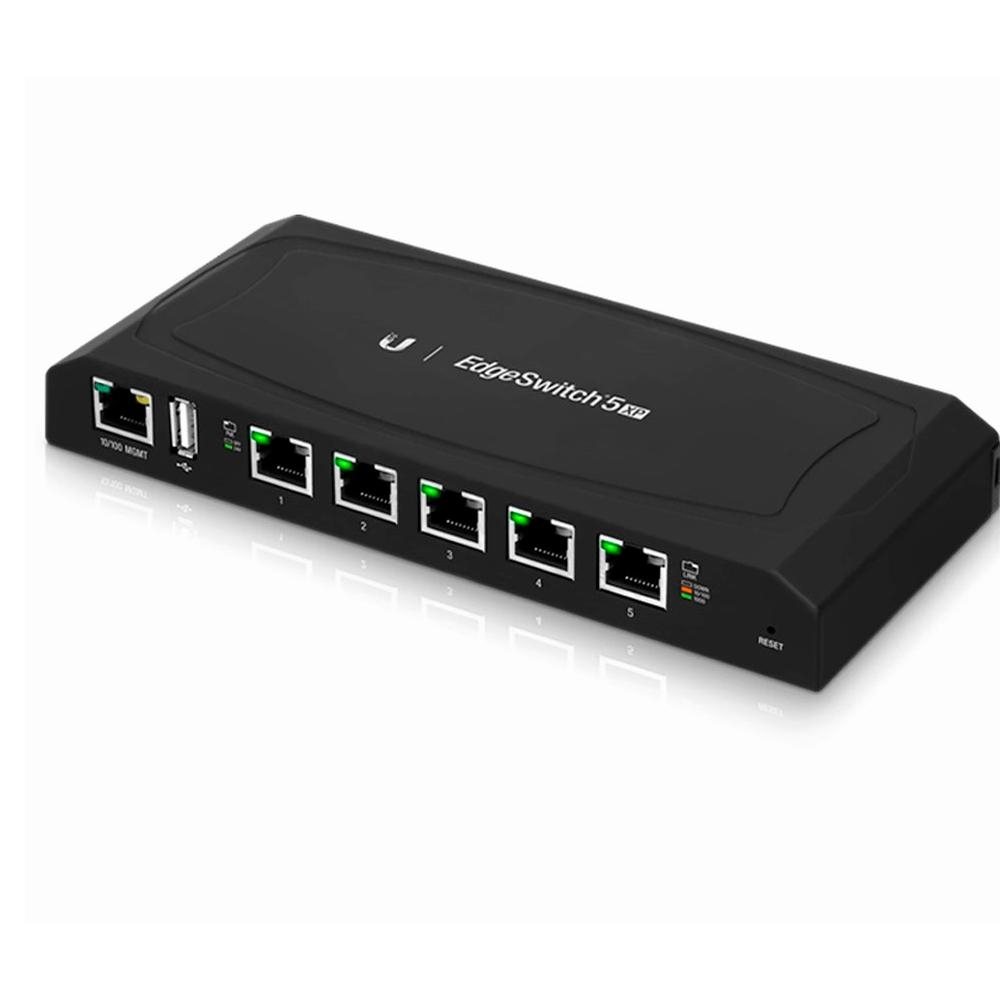

Ubiquiti ES-5XPEdgeSwitch 5-Port Gigabit 24V POE



Product Highlights
  • 5 Gigabit PoE Ports
  • 24V Configurable Passive PoE
  • EdgeSwitch XP Configuration Interface
  • Wall-Mountable
  • Model#: ES-5XP

    Sku: IT2046



    MSRP: $112.99

    In Stock

    Your Price: $112.99






    SKU: ES-5XP

    Ubiquiti Edgemax Edgeswitch 5XP, PoE

    The Ubiquiti EdgeMAX EdgeSwitch 5XP, PoE is an advanced gigabit PoE managed switch. Ubiquiti introduces the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.EdgeSwitch XP is available in multiple versions to meet your deployment needs.

    EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support.

    Features:

    • 5 Gigabit PoE Ports
    • 24V Configurable Passive PoE
    • EdgeSwitch XP Configuration Interface
    • Wall-Mountable

    Specifications ES-5XP

    Dimensions 197 x 87.5 x 27.3 mm
    Weight 250 g
    Power Input 24VDC, 2.5A Power Adapter (Included)
    Max. Power Consumption 60 W
    PoE Out Voltage Range 22-24VDC
    Max. PoE Wattage Per Data Port 11.5 W
    ESD Rating 24 kV Air / 24 kV Contact
    PoE Method Passive
    Button Reset
    USB Port 2.0 Type A (Reserved for Future Use)
    Processor MIPS 24K, 400 MHz
    System Memory 64 MB
    Code Storage 8 MB
    Certifications CE, FCC, IC
    Wall-Mount Yes
    Operating Temperature -25 to 55°C (-13 to 131° F)
    Operating Humidity 90% Non-Condensing
    PoE Configurable Per Port
    Management Port N/A
    Data Ports Off/24V
    LEDs Per Port
    Management Port Power /Link/Activity
    Data Ports PoE, Speed/Link/Activity
    Networking Interfaces
    Management Port (1) 10/100 Ethernet Port
    Data Ports (5) 10/100/1000 Ethernet Ports

    Datasheet

    PDF File Ubiquiti ES-5XPEdgeSwitch 5-Port Gigabit 24V POE
