Model: LAP-120 (Formely LBE-5AC-16-120)
International Version

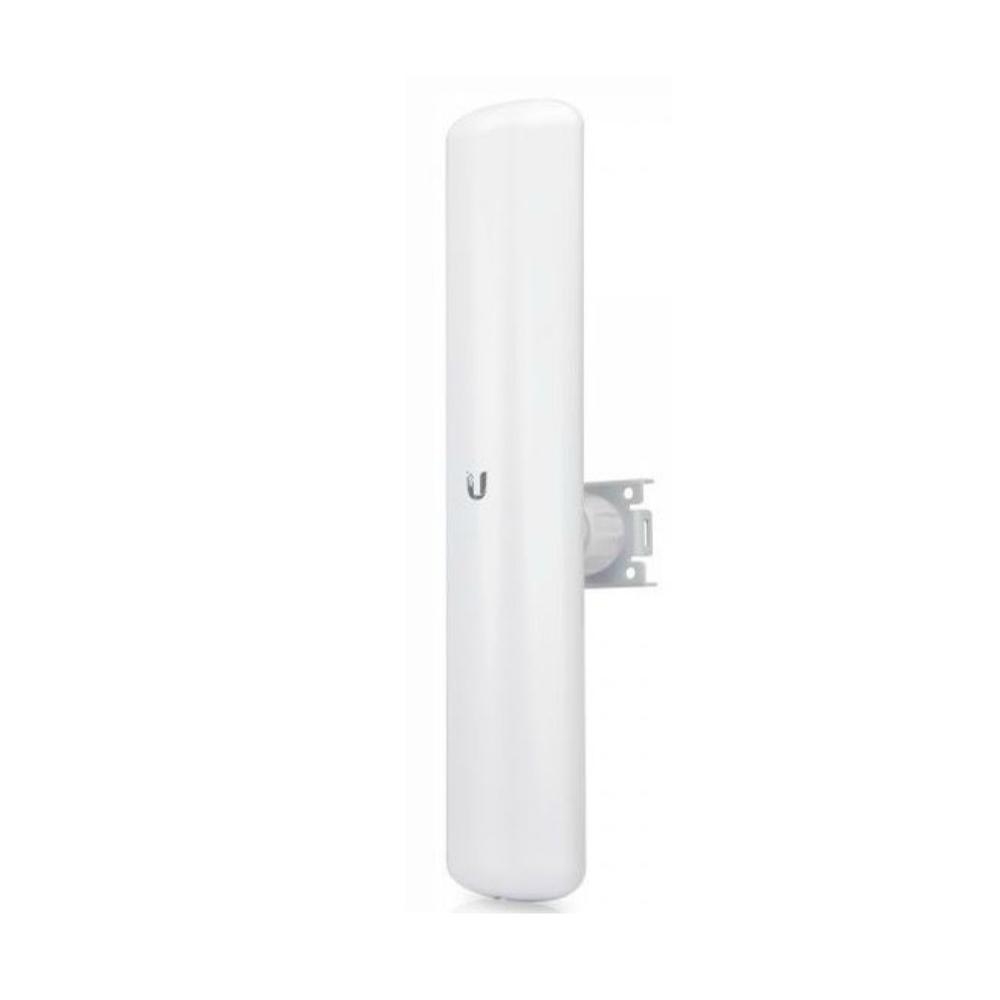

2x2 MIMO airMAX® ac Sector AP The LiteBeam™ ac AP is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
The latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks the LiteAP ac was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
The LiteAP ac combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.
The LiteAP ac features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
No tools are required. Simply connect the ball joint mount to the LiteAP ac by turning the lock nut clockwise by hand.
Product Specifications:
• Processor Specs: MIPS 74K
• Memory: 64MB
• Network Interface: 1 x 10/100 Ethernet Port
• Operating Frequency: Worldwide: 5150 - 5875MHz, USA: 5725 - 5850MHz
• Antenna Gain: 16dBi
• Maximum Power Output: 25dBm
• Maximum Power Consumption: 7W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature: -40 to 158deg F (-40 to 70deg C)
• Operating Humidity: 5 to 95% noncondensing
• Wind Survivability: 125mph (200km/h)
