NS5 US

Ubiquiti

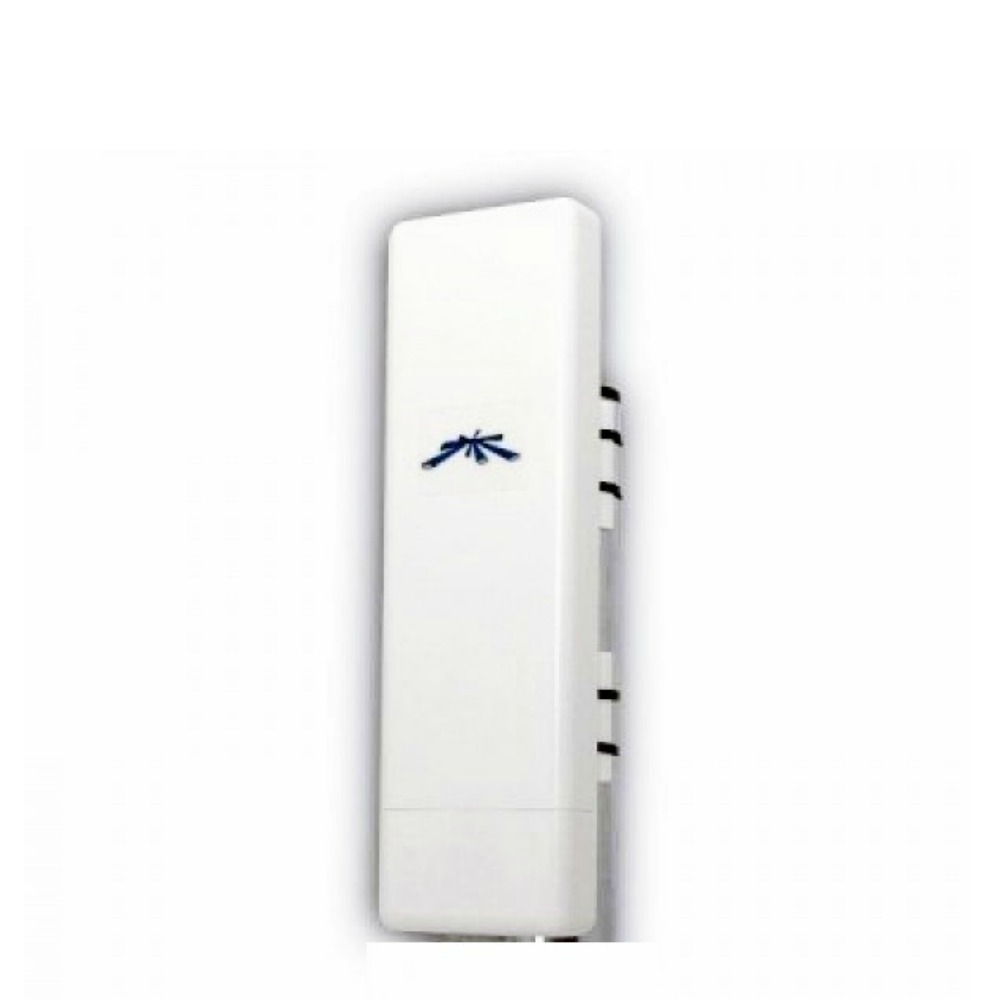

Ubiquiti NanoStation5 US Version NS5 5GHz 14dBi 250mW Indoor Outdoor CPE PoE 10km+ 25Mbps+


Model#: NS5 US

Sku: IT2061



MSRP: $59.94


Out of stock

  • Ubiquiti NanoStation5 NS5- The Ultimate 5GHz CPE for the Global WISP Community Featuring Adaptive Antenna Polarity (AAP) Technology Integrated 14 dB panel, 250 mW radio, POE
  • The device designed to advance the Global Wireless ISP industry to the next level. Featuring a compact indoor/outdoor design and an interface so intuitive even the most technically challenged can instantly become experts. But, don't be fooled; it is as powerful as it is simple.
  • Nanostation packs some phenomenal performance with a revolutionary design combining a hi-gain 4 antenna system, advanced radio architecture, and highly researched and developed firmware technology allowing throughput, stability, and capacity performance rivaling even the highest-end WiMax networks
  • Processor Specs Atheros AR2313 SOC, MIPS 4KC, 180MHz
  • Memory Information 16MB SDRAM, 4MB Flash
  • Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
  • Wireless Approvals FCC Part 15.247, IC RS210
  • TX Power 24dBm, +/-2dB
  • RX -94dBm +/-2dB
  • Antenna Integrated 14dBi Dual Pol + External RP-SMA
  • Distance up to 10km
  • TCP/IP Throughput 25Mbps+
  • Power Supply Max Power Consumption 12V, 1A (12 Watts). POE Supply and injector included
  • Passive Power over Ethernet (pairs 4,5+; 7,8 return)
  • -40C to 85C (System PCB optimized for hi-temp)
  • 5 to 95% Condensing
  • ETSI300-019-1.4
