UAP-NanoHD-US-BD4

Ubiquiti

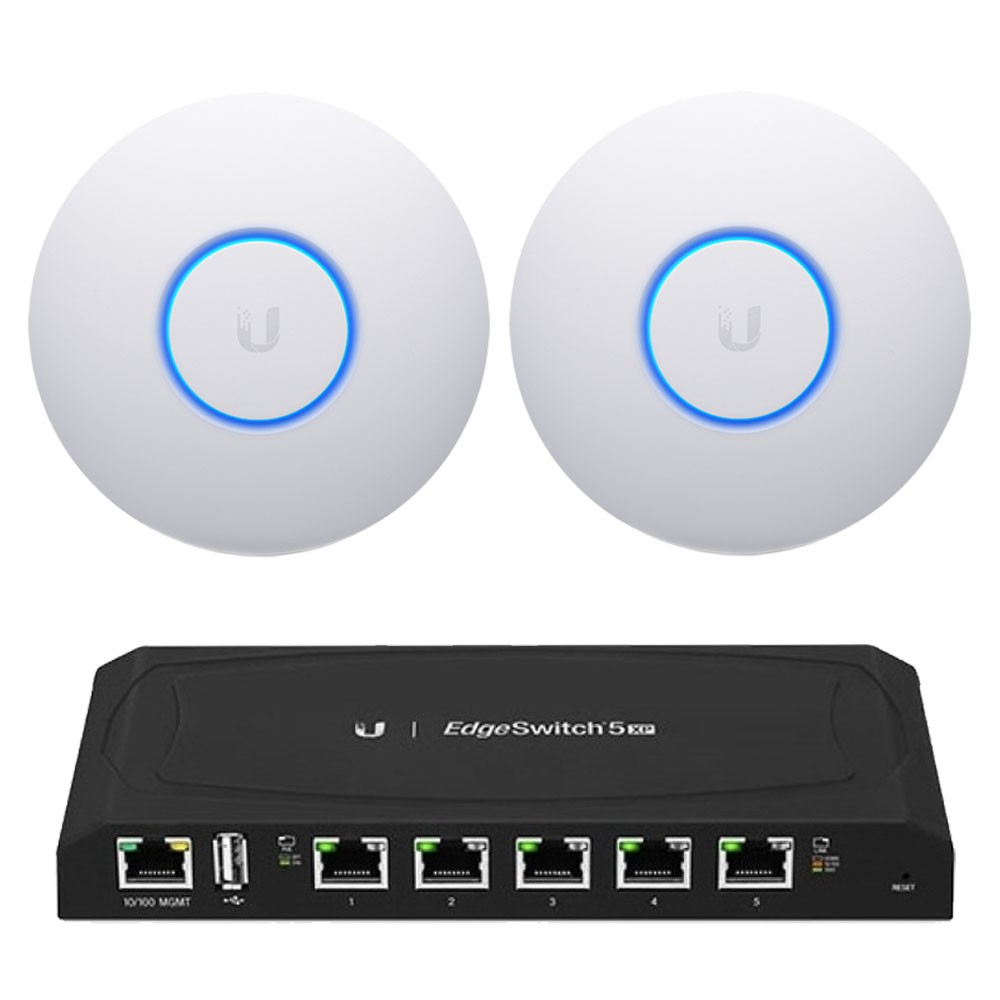

Ubiquiti UniFi nanoHD UAP-nanoHD-US (2 Units) Compact Dual Band Wave2 Wi-Fi 4x4 MU MIMO 1730 Mbps with Edge Switch XP ES-5XP 5-Port Advanced PoE Gigabit


Product Highlights
  • Ubiquiti UniFi nanoHD UAP-nanoHD-US (QNTY:2) Compact Dual Band Wave2 Enterprise Wi-Fi 4x4 MU MIMO 1730 Mbps
  • Our Smallest UniFi Access Point Available On the Market. UAP nanoHD is 30% smaller than UAP AC Pro version.
  • Deploy the UniFi nanoHD AP in high-density environments requiring maximum wireless performance and minimal footprint.
  • Ubiquiti Edge Switch XP ES-5XP (QNTY:1) 5-Port Advanced Power over Ethernet Gigabit Switch
  • The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.

    • Model#: UAP-NanoHD-US-BD4

    Sku: IT2149

    Out of stock

    Model: UAP-NanoHD-US (2 Units)

    UniFi nanoHD Wave-2 Access Point

    Discretely install the UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point from Ubiquiti Networks into nearly any building environment, thanks to the optional skins which come in a variety of designs including camouflage, concrete, marble, wood, black and fabric. This Ubiquiti Networks AP also comes equipped with a single Gigabit Ethernet 802.3af PoE-compliant network port and includes mounting kits for easy installation to either the wall or ceiling.

    Deploy the UniFi nanoHD AP in high-density environments requiring maximum wireless performance and minimal footprint. The UniFi nanoHD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3af PoE compatibility.

    • 4x4 Wave 2 MU-MIMO
    • Supports 200+ Concurrent Users
    • Small, Low-Profile Access Point
    • Powered by 802.3af PoE



    Model: ES-5XP

    EdgeSwitch XP Advanced Power over Ethernet

    The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.

    Introducing the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected. EdgeSwitch XP is available in multiple versions to meet your deployment needs.



    • Clean Industrial Design

    The EdgeSwitch XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).

    • Convenient PoE Support

    The EdgeSwitch XP supports 24V or 48V passive PoE to power multiple devices on your network.



    Model: UAP-NanoHD-US

    • Dimensions 160 x 160 x 32.65 mm

    • Weight 300 g (10.6 oz)

    • Power Method 802.3af

    • Max. Power Consumption 10.5W

    • Operating Frequency 2.4 GHz and 5 GHz

    • Antenna Gain 2.4 GHz - 2.8 dBi  / 5 GHz - 3 dBi

    • MIMO 2.4 GHz - 2x2 / 5 GHz - 4x4

    • Radio Rate 2.4 GHz - 300 Mbps / 5 GHz - 1733 Mbps

    • Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2







    Model:  ES-5XP

    • Dimensions: 197 x 87.5 x 27.3 mm
    • Weight: 250 g
    • Power Input: 24VDC, 2.5A Power Adapter
    • Max. Power Consumption: 60W
    • PoE Out Voltage Range: 22-24VDC
    • Max. PoE Wattage Per Data Port: 11.5W
    • ESD Rating: ±24 kV Air/Contact
    • PoE: Method Passive
    • USB Port: 2.0 Type A (Reserved for Future Use)
    • Processor: MIPS 24K, 400 MHz
    • System Memory: 64 MB
    • Code Storage: 8 MB
    • Networking Interfaces: Management Port / Data Ports

    (1) 10/100 Ethernet Port
    (5) 10/100/1000 Ethernet Ports
