Model: AFI-R
Ubiquiti Networks AmpliFi AFi-R High Density Home Wi-Fi Router

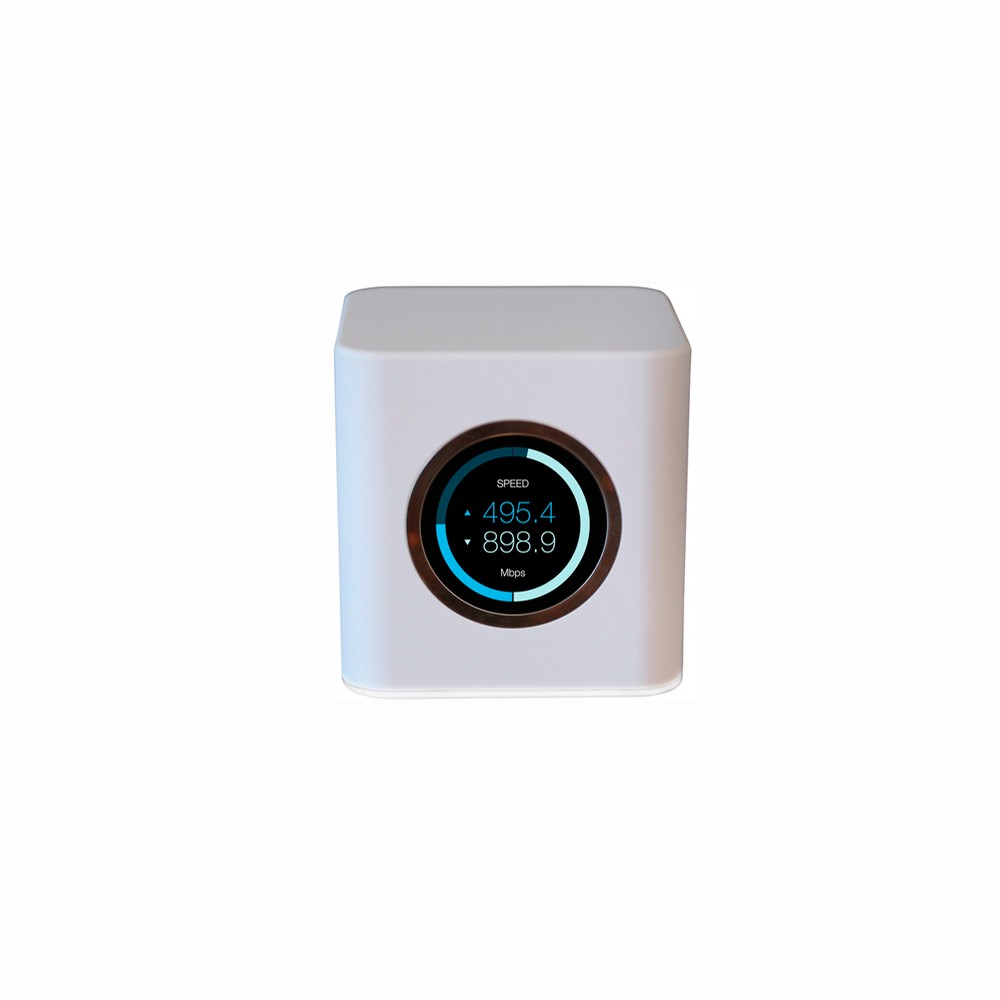

The AFi-R AmpliFi High Density Home Wi-Fi Router from Ubiquiti Networks Transform your Wi-FI. This aesthetically pleasing router can be the centerpiece of an end table as it features a white plastic housing complete with a 1.6" display depicting various aspects of the network. This AmpliFi router comes compatible with 802.11a/b/g/n/ac Wi-Fi network standards and operates on the 2.4 GHz band supporting data speeds of up to 450 Mbps and the 5 GHz band supporting data speeds up to 1300 Mbps. Additionally users benefit from up to 26 dBm transmit power along with a dual-band tri-polarity antenna providing a strong, reliable signal. Along with enhanced wireless connectivity, users can connect Ethernet enabled devices to any of the four Gigabit Ethernet ports located on the back of the router.
AmpliFi is more than a common home router: it's the ultimate Wi-Fi system. With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced antenna technology to bring ubiquitous Wi-Fi coverage to any home.
One intuitive app allows instant setup, powerful reporting metrics, and guest access. Out of the box, the AmpliFi router and extenders are pre-paired to work seamlessly as a Wi-Fi system. The smart touchscreen display combined with the Bluetooth capabilities of the router provide an instant setup experience using any Android or iOS smartphone.
The AmpliFi HD (High Density) Router and Extender Kit includes a router base station and two wireless HD extenders for ultimate Wi -Fi performance and coverage throughout your home. The HD Kit provides enhanced wireless performance in an innovative design. The router features an intuitive touchscreen display and the extenders feature a unique adjustable Super Antenna.
Enclosure Characteristics Plastic (PC)
Management Interface Ethernet or Wi-Fi
Networking Interface 1 x WAN
4 x LAN
Wi-Fi / Gigabit Ethernet
Power Consumption 11 W (max.)
Power Method 9 V USB
Power Supply 9 V, 1.7 A USB adapter
Voltage 9 V ± 10%
ESD/EMP Protection ± 24 kV air/contact
Buttons 1 x Reset to defaults
Antennas 1 x Dual-band antenna, tri-polarity
LEDs White LED
Display 1.6" / 40.6 mm diagonal
240 x 240, 212 ppi
G+F touch
Full color
Wi-Fi Standards 802.11a/b/g/n/ac
MIMO 3x3
Data Rates 2.4 GHz: 450 Mbps
5 GHz: 1300 Mbps
Power Save Supported
Wireless Security WPA2-PSK AES/TKIP
Temperature & Humidity Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95% non-condensing
Certifications FCC / CE / IC
Suggested Max. TX Power 26 dBm
Supported Data Rates (Mbps) 802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Dimensions 3.91 x 3.85 x 3.92" / 99.5 x 97.8 x 99.6 mm
Weight 14.46 oz / 410 g
Packaging Info
Package Weight 2.9 lb
Box Dimensions (LxWxH) 7.5 x 6.4 x 6.4"
