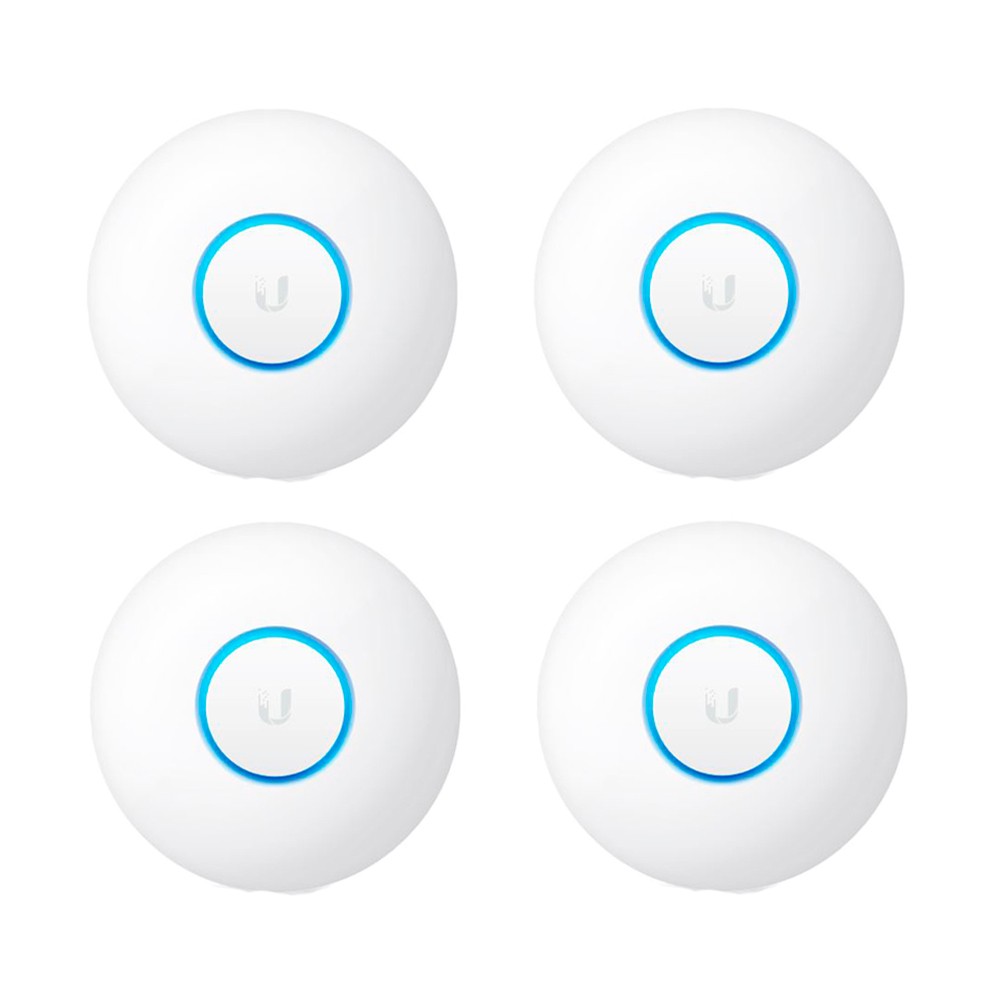

Model: UAP-NanoHD-US (4 Pack)
Discretely install the UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point from Ubiquiti Networks into nearly any building environment, thanks to the optional skins which come in a variety of designs including camouflage, concrete, marble, wood, black and fabric. This Ubiquiti Networks AP also comes equipped with a single Gigabit Ethernet 802.3af PoE-compliant network port and includes mounting kits for easy installation to either the wall or ceiling.
Deploy the UniFi nanoHD AP in high-density environments requiring maximum wireless performance and minimal footprint. The UniFi nanoHD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3af PoE compatibility.
The UniFi nanoHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology
Dimensions
160 x 160 x 32.65 mm
(6.3 x 6.3 x 1.29")
Weight
300 g (10.6 oz)
315 g (11.1 oz)
Networking Interface
(1) RJ45 GbE
Buttons
(1) Reset to Defaults
Power Method
802.3af
Power Supply
48V, 0.5A Gigabit PoE Adapter*
Max. Power Consumption
10.5W
Operating Frequency
2.4 GHz
5 GHz
Max. TX Power
2.4 GHz
5 GHz
23 dBm
26 dBm
Antenna Gain
2.4 GHz - 2.8 dBi
5 GHz - 3 dBi
MIMO
2.4 GHz - 2x2
5 GHz - 4x4
Radio Rate
2.4 GHz - 300 Mbps
5 GHz - 1733 Mbps
Wi-Fi Standards
802.11 a/b/g/n/ac/ac-wave2
Mounting
Wall/Ceiling (Kits Included)
Operating Temperature
-10 to 70° C (14 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
