ETH-SP-G2-24PK

Ubiquiti

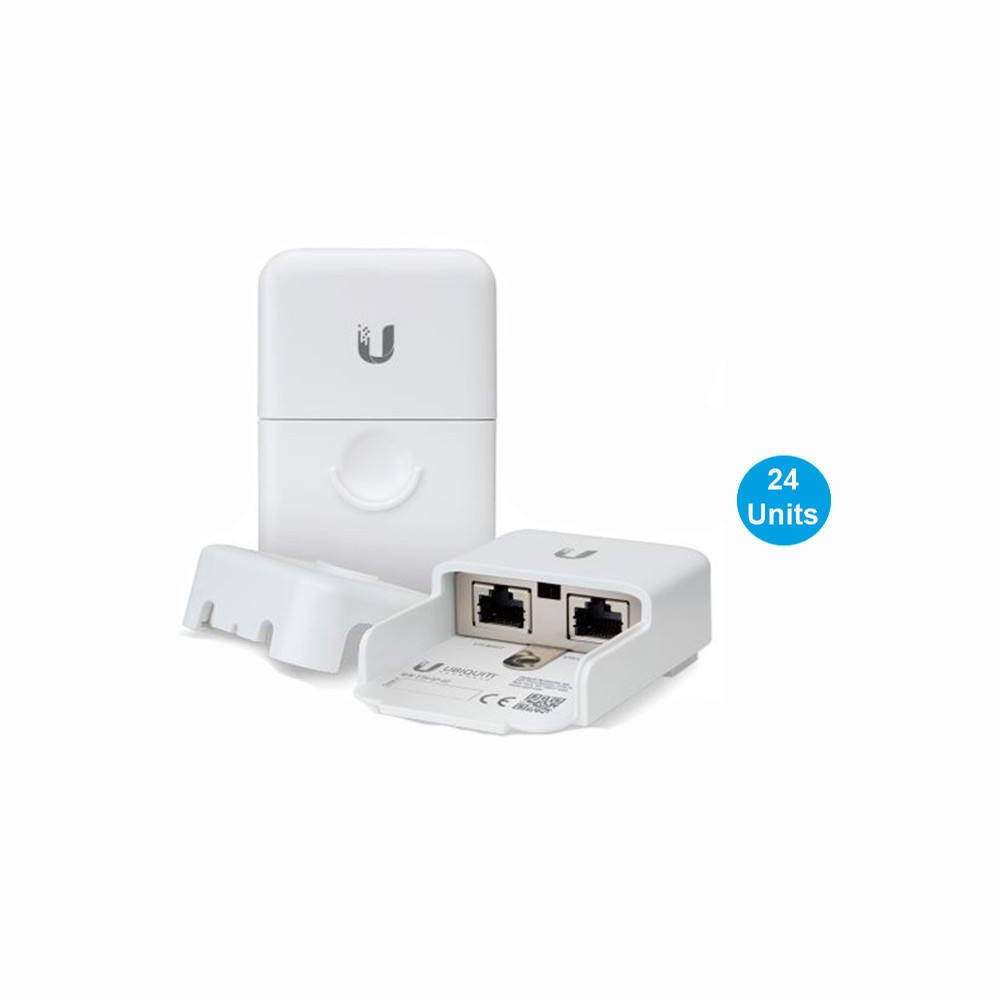

Ubiquiti Ethernet Surge Protector Gen 2 ETH-SP-G2 for Outdoor High-Speed Networks (24 Pack)



Product Highlights
  • Ubiquiti Ethernet Surge Protector Gen 2 ETH-SP-G2 Ethernet to Ethernet Grounded ESD Protection (24-Pack)
  • The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps.
  • Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.
  • All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.
  • Connect the ground and Ethernet cables in between your network devices.
  • Model#: ETH-SP-G2-24PK

    Sku: IT2203

    Out of stock

    Model: ETH-SP-Gen2 (24 Pack included)

                                  Ethernet Surge Protector

                                              Grounded ESD Protection

    The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. The Ubiquiti Ethernet Surge Protector Gen 2 provides all of the features of the first generation, but with significantly better surge protection performance.



    • ESD Protection for Outdoor High-Speed Networks

    Introducing the Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting sensitive, third-party Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.

    The ETH-SP-G2 is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.



    • ESD Protection for Outdoor PoE Devices

    Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.



    • Additional ESD Protection

    All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.

    • Dimensions

    91 x 61 x 32.5 mm

    • Weight

    80g

    • Interface Connections

    2x RJ45

    • ESD/EMP Protection

    Absorbing Transient Current with Responce to Surge Voltage from 100V/s to 1kV/us

    • DC Spart

    Over Voltage - 90V @ 100V/s

    • Maximum Impulse Spark

    over Voltage - 700V @ 1kV/us

    • Discharge Current

    5kA Maximum / 0.5kA Normal

    • Maximum Insulation Resistance

    1Gohm @50V

    • Maximum Capacitance

    1.0 pF @ 1MHz

    • Data Line Protection

    Gigabit Ethernet

    • IEEE 802.3af POE Support

    Yes
