US-XG-6POE

Ubiquiti

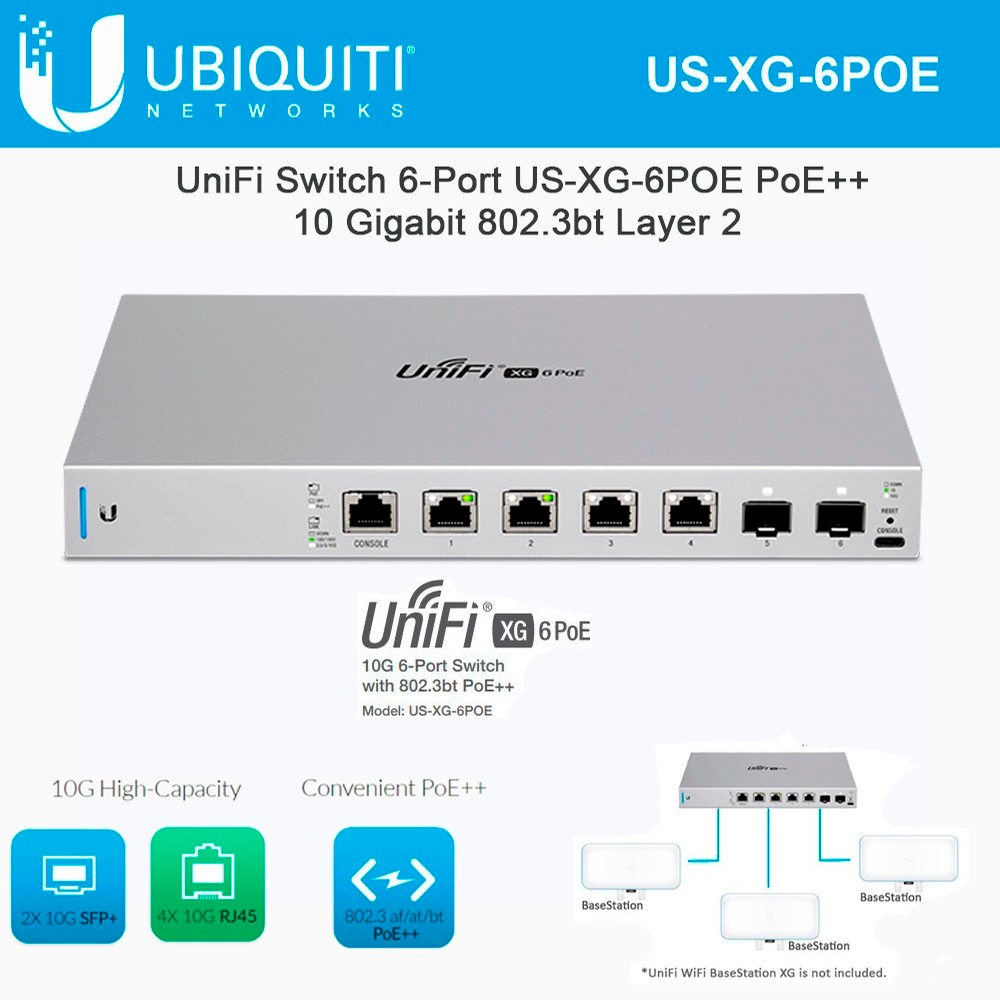

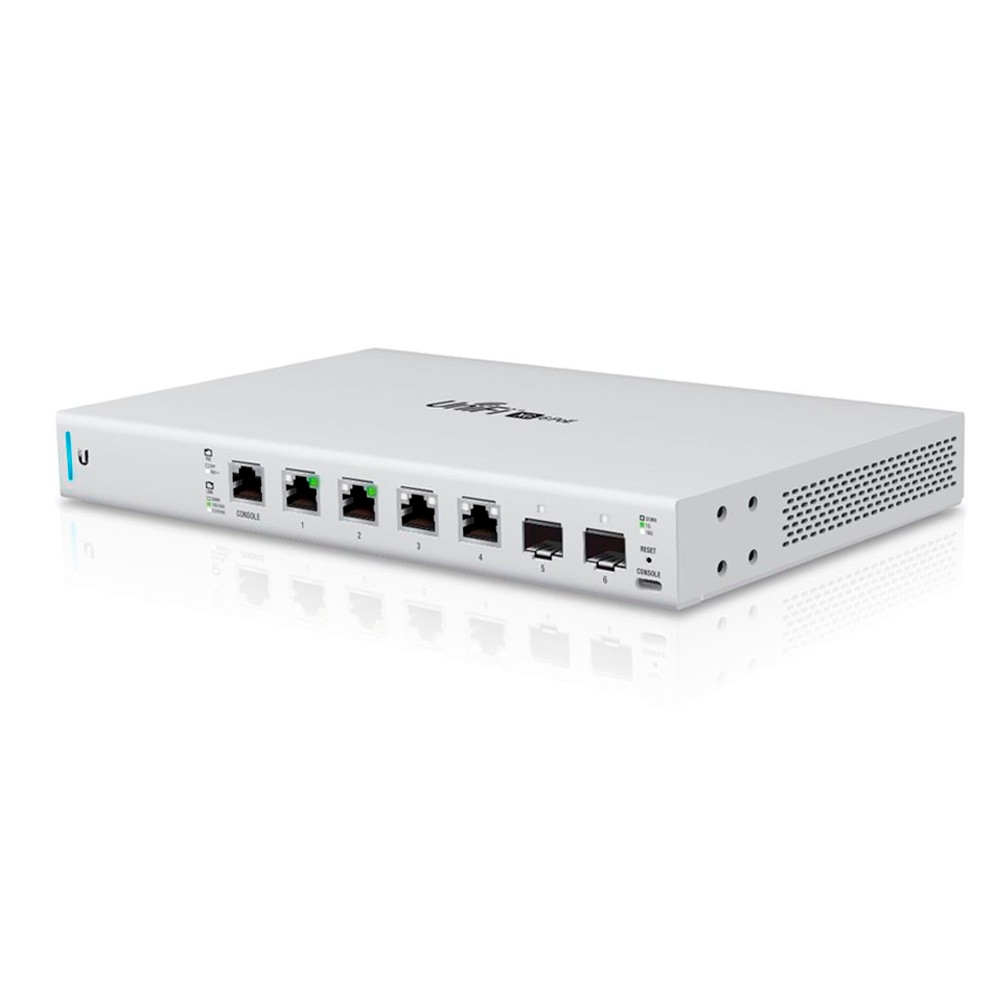

Ubiquiti Networks US-XG-6POE UniFi Switch 6 XG PoE


Model#: US-XG-6POE

Sku: IT2207



MSRP: $809.99

In Stock

Your Price: $809.99






Model: US-XG-6POE

10G 6-Port Switch with 802.3bt PoE++

UniFi Switch 6 XG PoE is a fully managed Layer 3 switch with (4) 1/2.5/5/10 Gigabit 802.3bt (PoE++) RJ45 ports. The 802.3bz compliant ports extend Multi-Gigabit range over existing cabling. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch 6 XG PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. Each 10G PoE++ port provides up to 60W of PoE power, making the UniFi Switch 6 XG PoE ideal for use with UniFi BaseStation XG, UniFi UAP XG, and UniFi UAP SHD. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.



Features:

  • (4) 1/2.5/5/10 Gigabit RJ45 802.3bt PoE++ ports
  • Multi-Gigabit 802.3bz compliant
  • (2) 10G SFP+ ports
  • Layer 2 and Layer 3* features
  • Up to 60W PoE power/port
  • RJ45 and USB-C console ports
  • External 210W power supply with DC connector
  • Managed by UniFi Network Controller
  • * Available in future firmware upgrade.

Specifications US-XG-6POE

Dimensions 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25")
Weight 1.3 kg (2.87 lb)
Interfaces Networking (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports
Management Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type C Port Out-of-Band
Power Method 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
Power Supply External AC/DC Adapter (Included) or DC Power Source
Supported Voltage Range 44 to 57VDC
Max. Power Consumption (Excluding PoE Output) 40W
LEDs System RJ45 Data Ports SFP+ Data Ports Status PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection Air: ± 18 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
POE
PoE Interfaces PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. 802.3bt Wattage per Port by PSE 60W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at/bt Mode 50-57V

Datasheet

PDF File Ubiquiti Networks US-XG-6POE UniFi Switch 6 XG PoE
