RB435G

Mikrotik

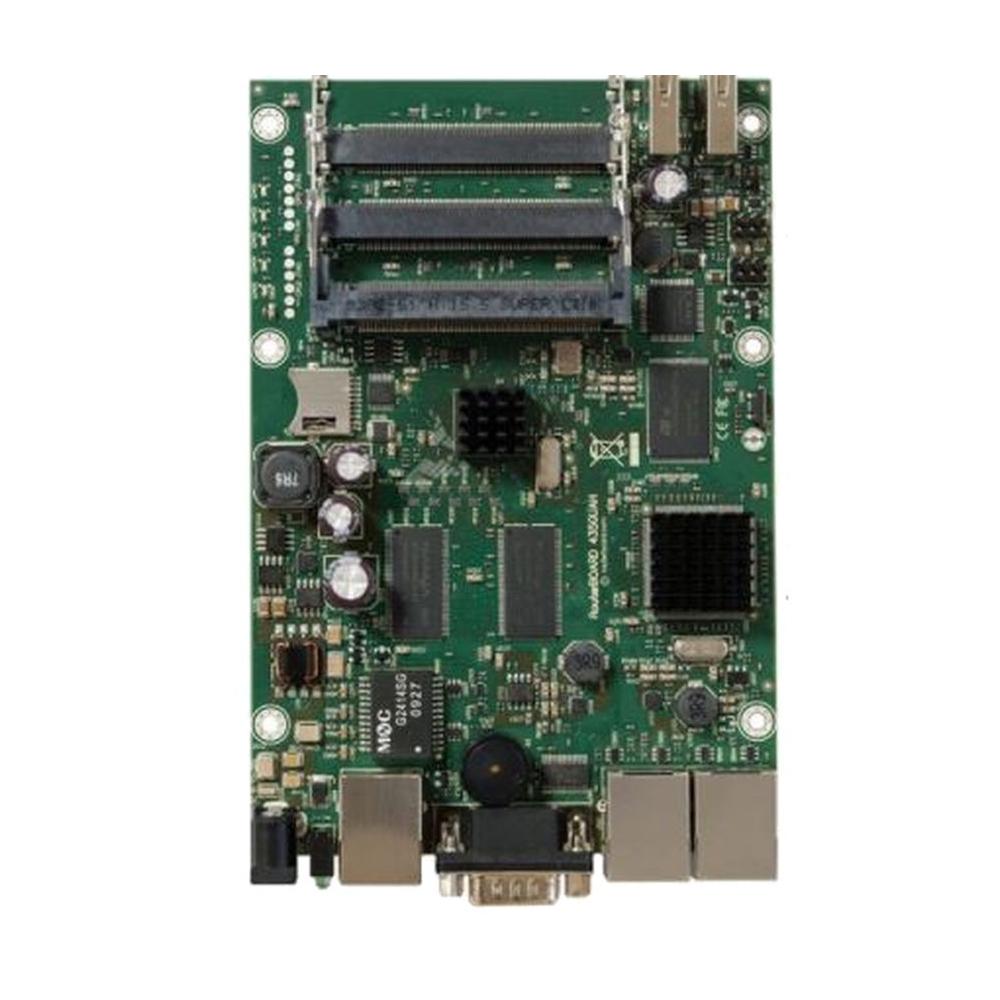

Mikrotik RB435G RouterBOARD 680MHz 2 USB 5 mini PCI slots 3-port Gigabit 256MB OSL5


Model#: RB435G

Sku: IT2324



MSRP: $179.99


Out of stock

  • Five miniPCI slots and three Gigabit Ethernet ports give you enough connectivity options to use the RB435G as the central part of your network.

  • Now with Gigabit ports, to properly utilize all the speed 802.11n with Nv2 wireless. Five miniPCI slots to be used for four sectors and a backbone, or any other configuration you need.

  • The two USB 2.0 ports can be used for extending storage, adding a 3G wireless modem for backup connectivity,for a mobile installation or all together.

  • The RB435G comes with a 680MHz Atheros CPU and is preinstalled with a Level5 RouterOS license.

  • CPU Atheros AR7161 680MHz

  • Memory 256MB DDR SDRAM onboard memory

  • Boot loader RouterBOOT

  • Data storage 128MB onboard NAND memory chip and microSD slot for expansion

  • Ethernet Three 10/100/1000 Gigabit Ethernet ports with Auto-MDI/X

  • miniPCI Five miniPCI Type IIIA/IIIB slots

  • Expansion Two USB 2.0 ports with powering (5V 1A supply)

  • Extras Reset switch, beeper, temperature, voltage and current monitors

  • Serial port One DB9 RS232C asynchronous serial port

  • LEDs Power, NAND activity, 5 user LEDs

  • Power options PoE: 8-28V DC on Ether1 (Non 802.3af). Jack: 8-30V DC

  • Dimensions 105 mm x 154 mm, Weight: 153g

  • Power consumption ~4.5W without extension cards

  • Output to cards 19W without any cooling, up to 40W with active cooling

  • Operating System MikroTik RouterOS, L5 license
