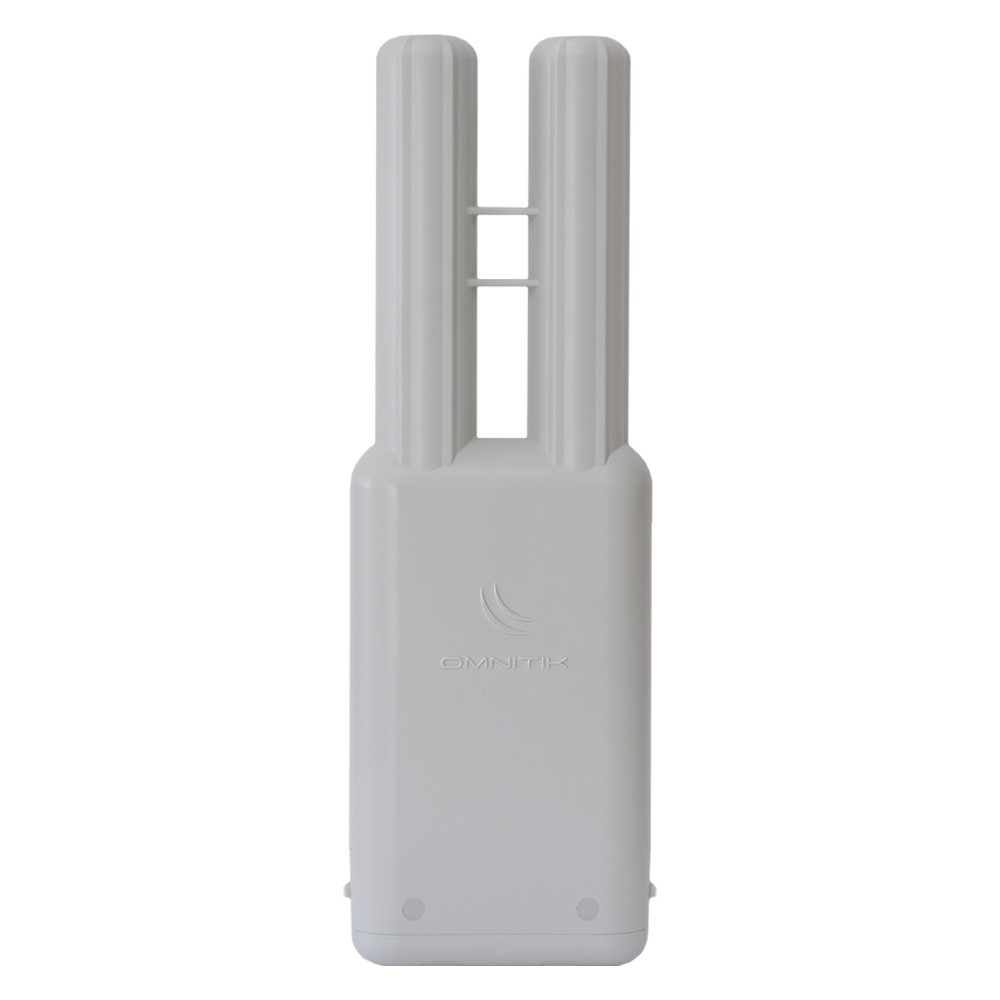

MikroTik RBOmniTikU-5HnD 5GHz OmniTik 802.11an 2x2 Outdoor L4 - INTERNATIONAL VERSION
Product Highlights
Model#: RBOmniTikU-5HnD
Sku: IT2326
MSRP: $97.99
Out of stock
Your Price: $97.99
MODEL: RBOmniTikU-5HnD
International Version
OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device.
Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.
LED signal indicators on it’s back are fully customisable, show Ethernet activity or wireless signal - or any other information from RouterOS.
The USB port gives the ability to connect a 3G modem or a storage drive.
- Atheros AR7241 400MHz network processor
- 32MB DDR SDRAM onboard memory
- RouterBOOT
- 64MB onboard NAND memory chip
- Five 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU frame size up to 2030 Wireless
- Built-in 5GHz 802.11a/n 2x2 MIMO Antenna Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical polarization)
- Architecture MIPSBE
- CPU AR9344
- CPU core count 1
- CPU nominal frequency 600 MHz
- Dimensions 368x125x55mm
- License level 4
- Operating System RouterOS v5 and above
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -40°C to 70°C
- PoE in Passive PoE
- PoE in input Voltage 11-30 V
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 11 W
- Wireless 5 GHz Max data rate 300 Mbit/s
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz standards 802.11a/n
- Antenna gain dBi for 5 GHz 7.5
- Wireless 5 GHz chip model AR9344
- Wireless 5 GHz generation Wi-Fi 4
- 10/100 Ethernet ports 5
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- Certification CE/RED, FCC, IC, EAC, ROHS
Datasheet
