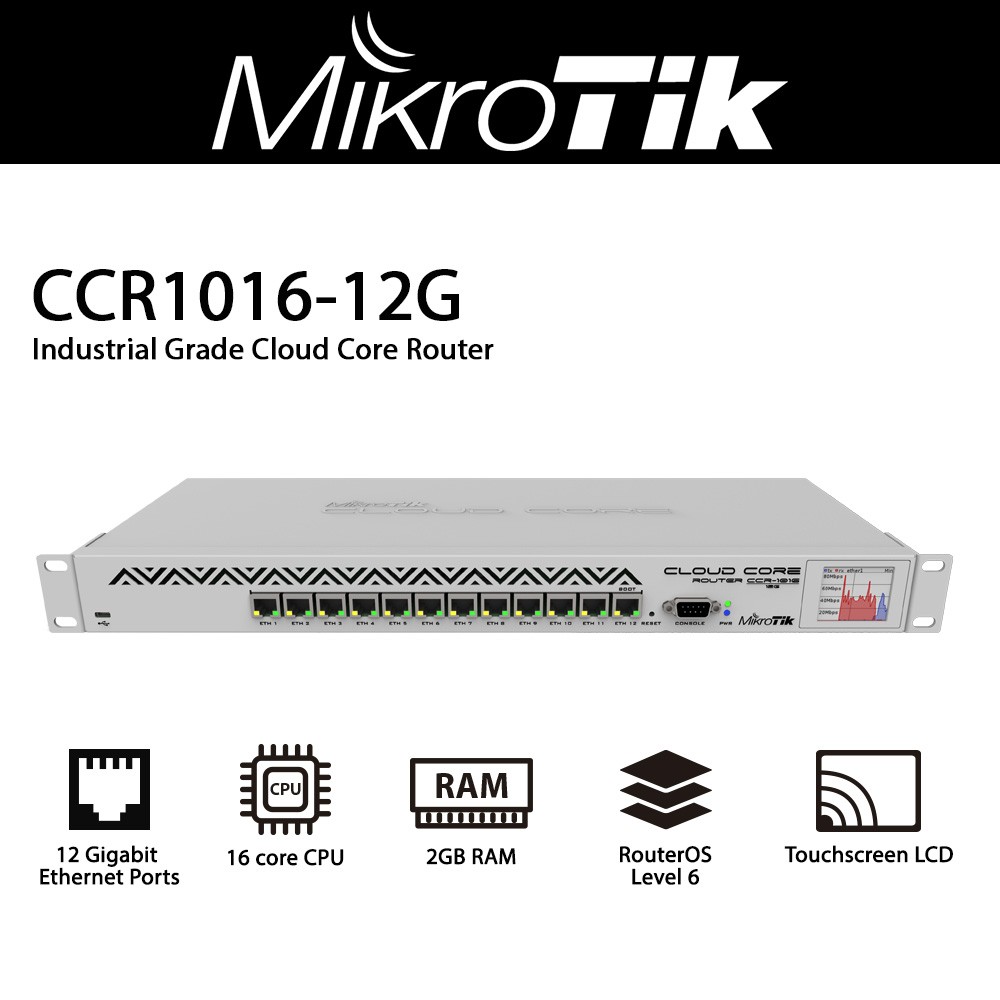

Mikrotik CCR1016-12G 12 Gbit Ports Cloud Core Router w/ 16 core CPU plus 2GB RAM and LCD Touchscreen

Product Highlights

CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU

Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD

The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy

1.2 GHz clock per core, 12 Mbytes total on-chip cache, Ports directly connected to CPU, Up to 12 Gbps throughput with RouterOS queue/firewall configuration

355x145x44mm Dimensions, RouterOS Level 6, 512 MB Storage Size, 42 W Max Power Consumption

Model#: CCR1016-12G

Sku: IT2329

MSRP: $569.99

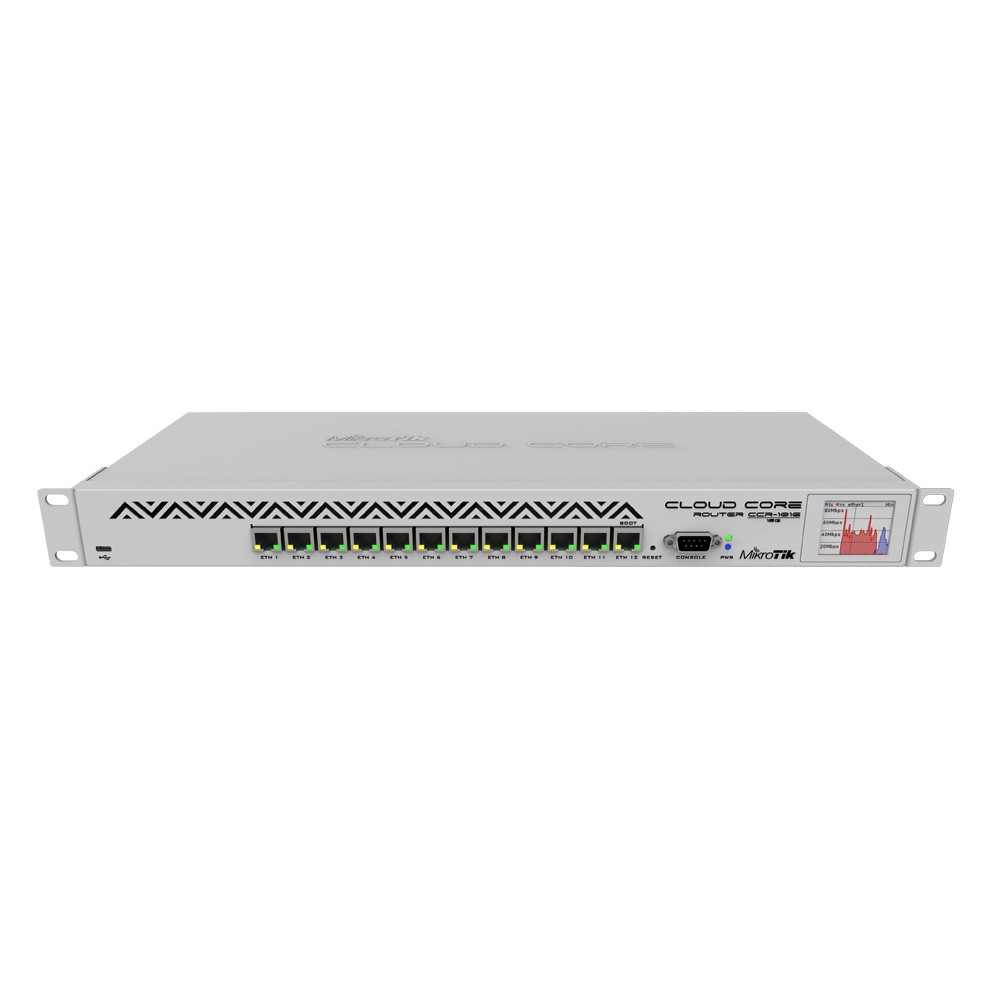

CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.

The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!

Included parts: Screw and feet kit (K10), 2x IEC cords, Rack ears

Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 355x145x44mm
License level 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C
Number of AC inputs 2
AC input range 100-240
Max power consumption 42 W
Max power consumption without attachments 37 W
10/100/1000 Ethernet ports 12
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes
