RB2011UiAS-RM

Mikrotik


Mikrotik RouterBOARD RB2011 multi port router RB2011UiAS-RM 10-port OSL5 PoE RouterBOARD 2011UiAS-RM


Product Highlights
  • Mikrotik RouterBOARD RB2011UiAS-RM - 1U Rackmount - 600MHz CPU - 128MB RAM
  • RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB)
  • Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS
  • There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA
  • RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply

    • Model#: RB2011UiAS-RM

    Sku: IT2332



    MSRP: $179.95


    Out of stock

    Model: RB2011UiAS-RM

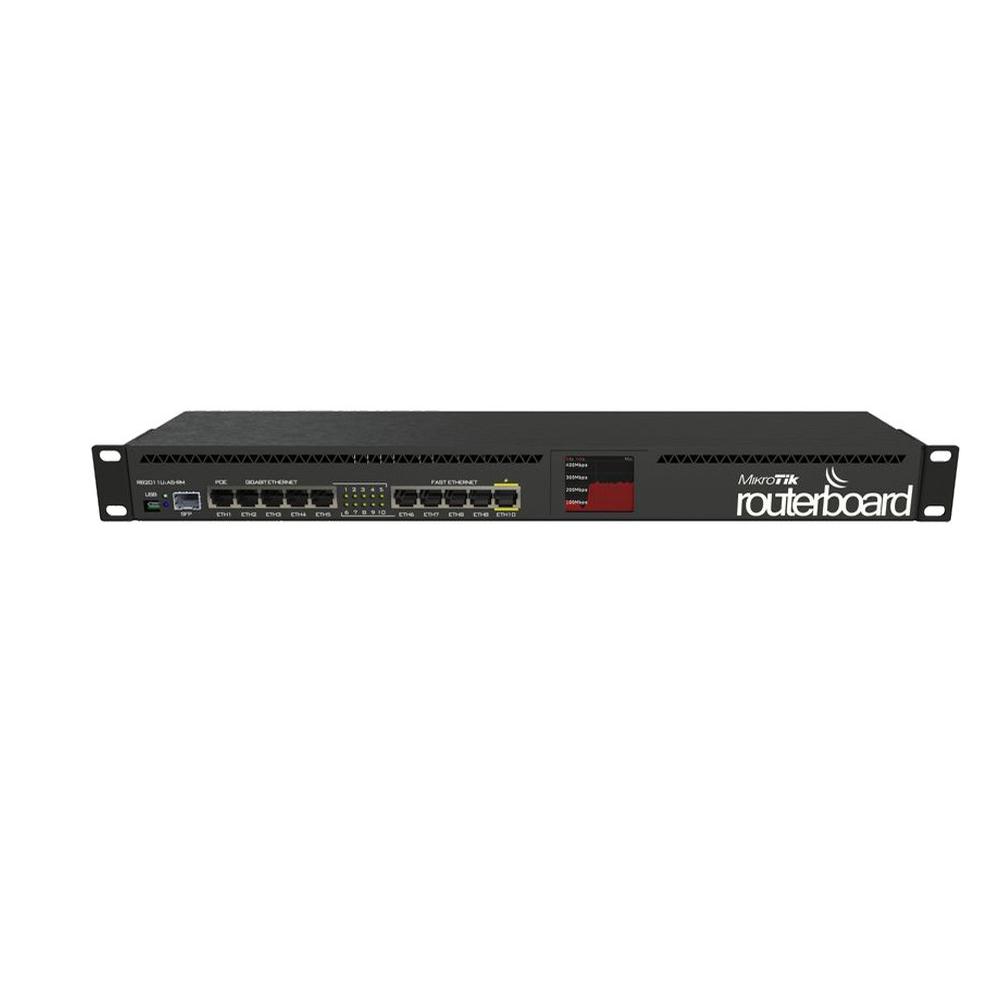

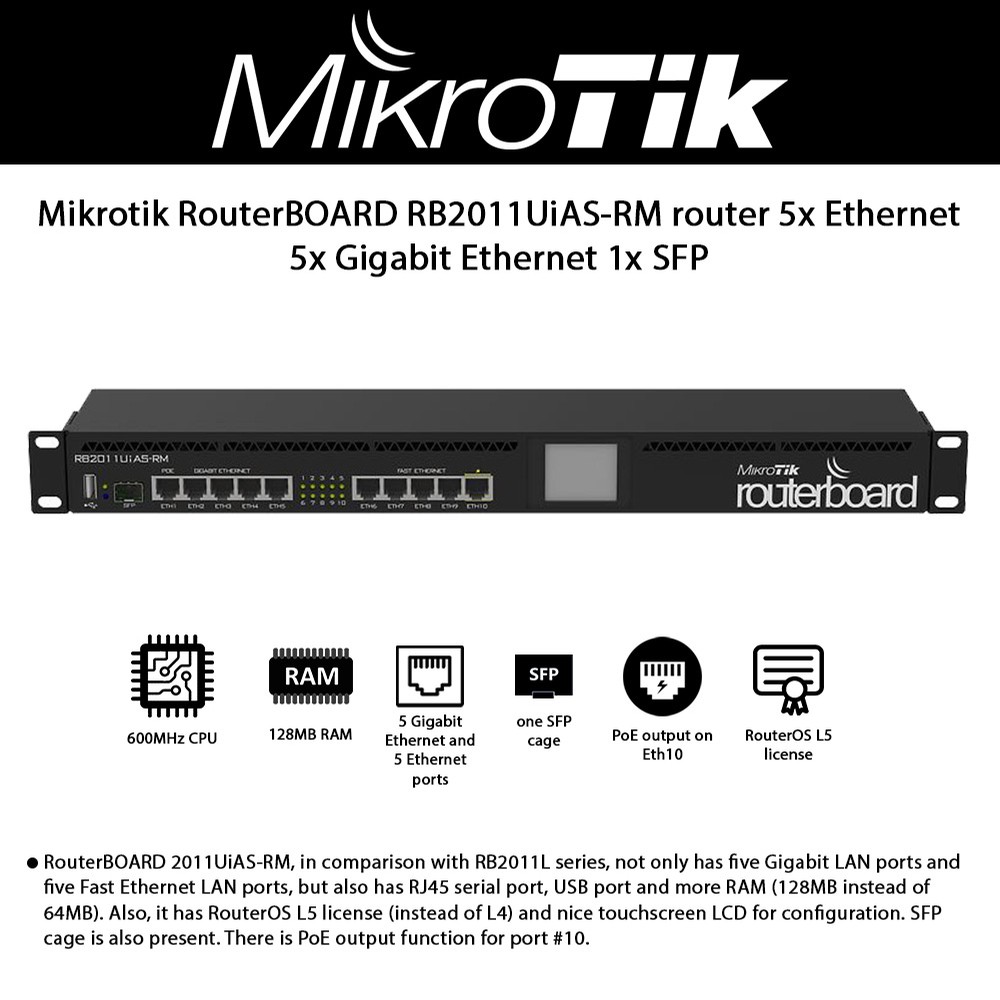

    Mikrotik RouterBOARD RB2011UiAS-RM - 1U Rackmount - 600MHz CPU - 128MB RAM

    The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    RouterBOARD RB2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

    Specifications

    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    214mm x 86mm for PCB
    • License level    5
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 60°C

    Powering

    • PoE in    Passive PoE
    • PoE out    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    8-30 V
    • Max out per port output (input < 30 V)    510 mA
    • Max total out (A)    510 mA
    • Max power consumption    6 W

    Ethernet

    • 10/100 Ethernet ports    5
    • 10/100/1000 Ethernet ports    5

    Fiber

    • SFP DDMI    Yes
    • SFP ports    1

    Peripherals

    • Serial port    RJ45
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    2

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
