RB2011UiAS-2HnD-IN

Mikrotik


MikroTik RB2011UiAS-2HnD-IN 2.4GHz 5xLAN 5xGb SFP 802.11bgn LCD L5



Product Highlights
  • 600 MHz CPU, 128 MB RAM
  • 2.4 GHz 802.11b/g/n
  • (5)10/100, (1)SPF
  • RouterOS L5, Desktop Case, PSU, LCD Panel
  • Model#: RB2011UiAS-2HnD-IN

    Sku: IT2345



    MSRP: $135.99


    Out of stock

    Your Price: $135.99


    MODEL: RB2011UiAS-2HnD-IN

    The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

    The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    RouterBOARD 2011UAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful 1000mW dual chain 2.4Ghz 802.11bgn wireless AP, RJ45 serial port, microUSB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel- all this for only $129!

    Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

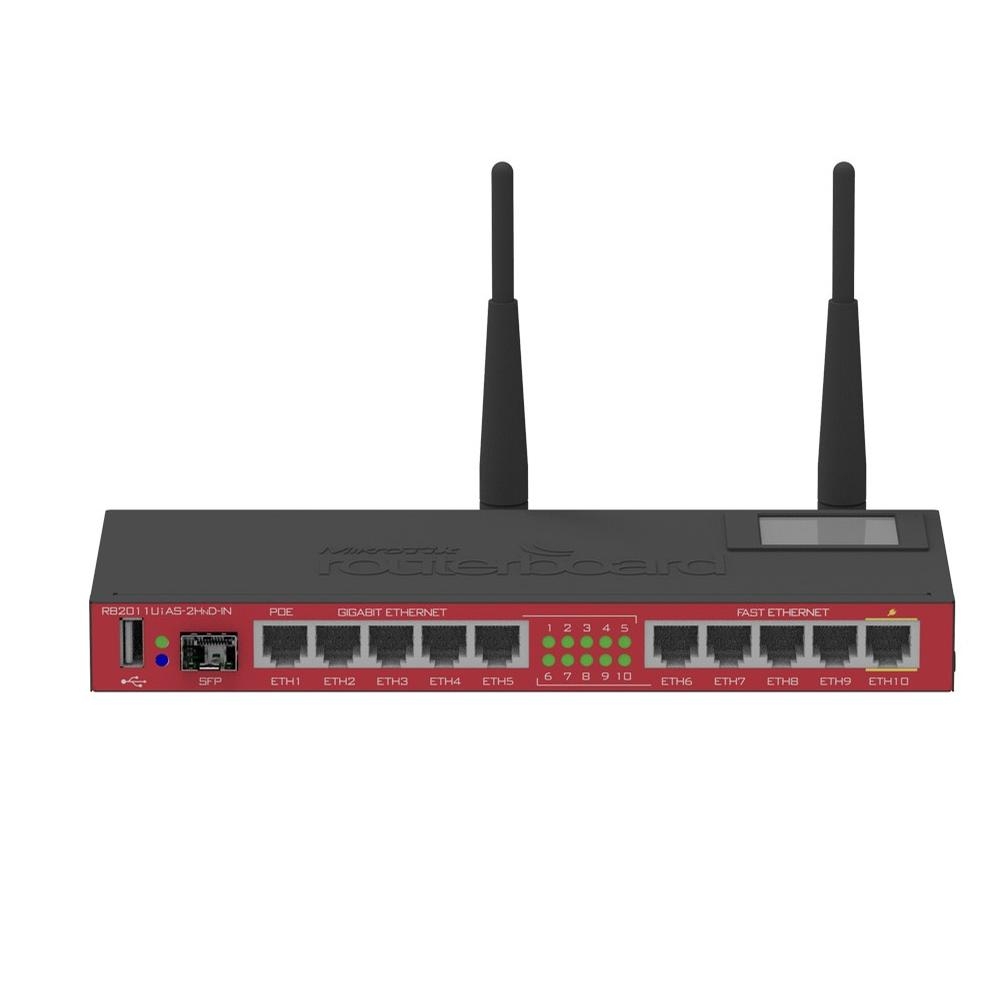

    RouterBOARD 2011UiAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.

    Specifications

    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    214mm x 86mm for PCB
    • License level    5
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 60°C

    Powering

    • PoE in    Passive PoE
    • PoE out    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    8-30 V
    • Max out per port output (input < 30 V)    510 mA
    • Max total out (A)    510 mA
    • Max power consumption    6 W

    Wireless

    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    4
    • Wireless 2.4 GHz chip model    AR9344

    Ethernet

    • 10/100 Ethernet ports    5
    • 10/100/1000 Ethernet ports    5

    Fiber

    • SFP DDMI    Yes
    • SFP ports    1

    Peripherals

    • Serial port    RJ45
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes

    Datasheet

    PDF File MikroTik RB2011UiAS-2HnD-IN 2.4GHz 5xLAN 5xGb SFP 802.11bgn LCD L5
