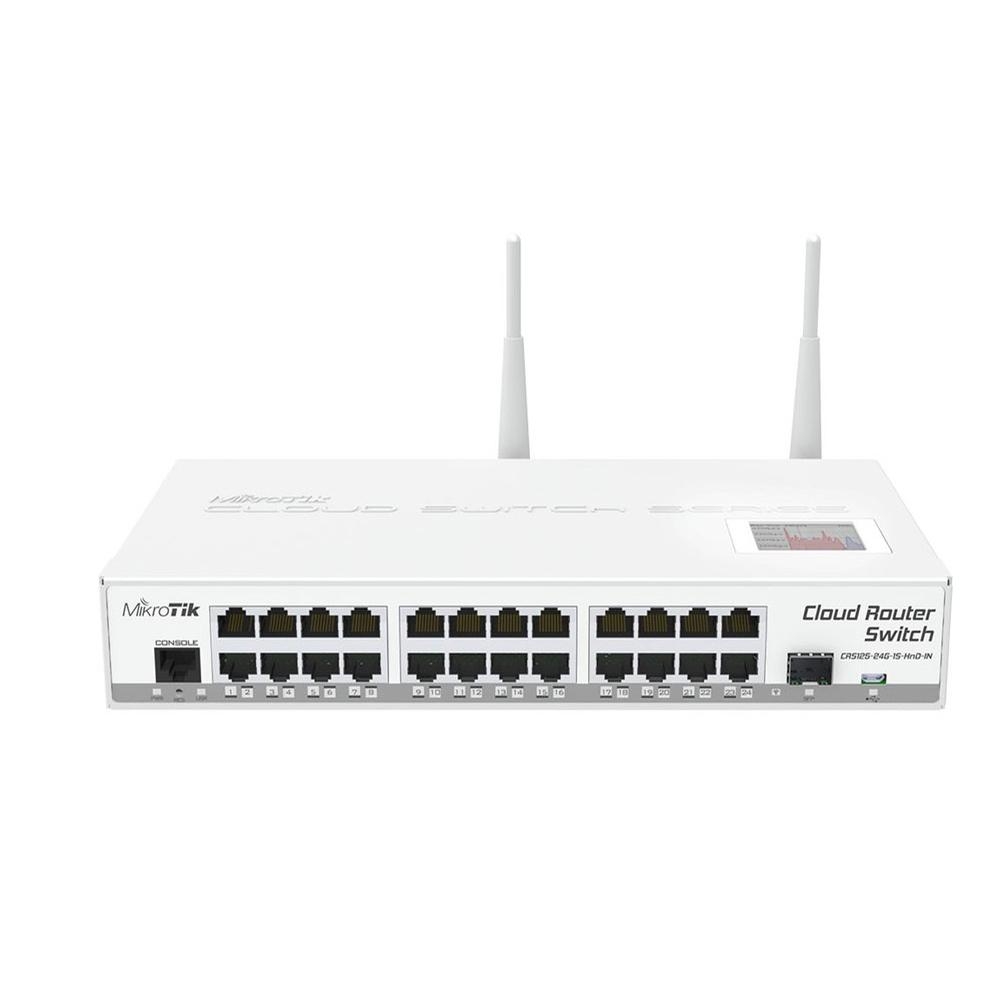

MODEL: CRS125-24G-1S-2HnD-IN
Cloud Router Switch is our new Smart Switch series. It is a fully functional Layer 3 switch, and is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP. Perfect SOHO gateway router, switch, 11n AP all in one box
- Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
- RouterOS gateway/firewall/VPN router
- up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
- 1000mW high power 2.4GHz 11n wireless AP
- Fully manageable L3 switch, full wire speed switching
- Wireless AP built in
- Configure ports as switch, or for routing
- If required, full RouterOS power right there
-
Ethernet, Fiber, or 4G (with optional USB modem)
-
gateway connection to Internet
-
RouterOS gateway/firewall/VPN router
-
up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
-
Specifications
- Product code CRS125-24G-1S-2HnD-IN
- Architecture MIPSBE
- CPU AR9344
- CPU core count 1
- CPU nominal frequency 600 MHz
- Dimensions 285 x 167 x 44 mm
- License level 5
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 128 MB
- Storage type NAND
- Tested ambient temperature -30°C to 60°C
-
Powering
- PoE in Passive PoE
-
Wireless specifications
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 4
- Wireless 2.4 GHz chip model AR9344
- Wireless 2.4 GHz generation Wi-Fi 4
-
Ethernet
- 10/100/1000 Ethernet ports 24
-
Fiber
- SFP DDMI Yes
- SFP ports 1
-
Peripherals
- Serial port RJ45
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type microUSB type AB
- Max USB current (A) 1
-
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
-
Certification & Approvals
- Certification CE/RED, FCC, EAC, ROHS
-
- PoE in input Voltage 8-28 V
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 8-28 V
- Max power consumption 19 W
- FAN count Passive
