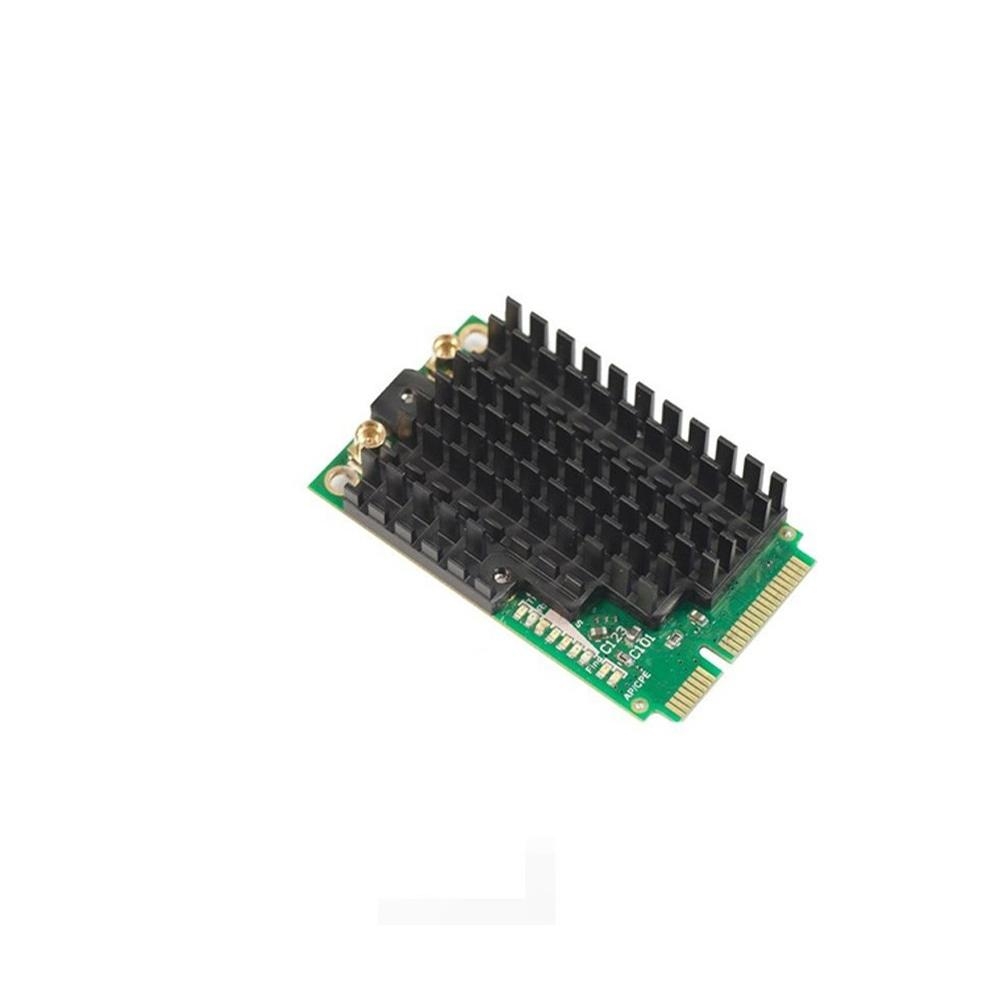

MikroTik R11e-5HnD 5GHz HP miniPCI-e 802.11an 2x2 Card


Product Highlights
  • High Power 27 dBm
  • 802.11a/n 5 GHz
  • miniPCI-e Card
  • (2)MMCX Connectors

    • Model#: R11e-5HnD

    Sku: IT2348



    MSRP: $38.99

    In Stock

    Your Price: $38.99






    MODEL: R11e-5HnD

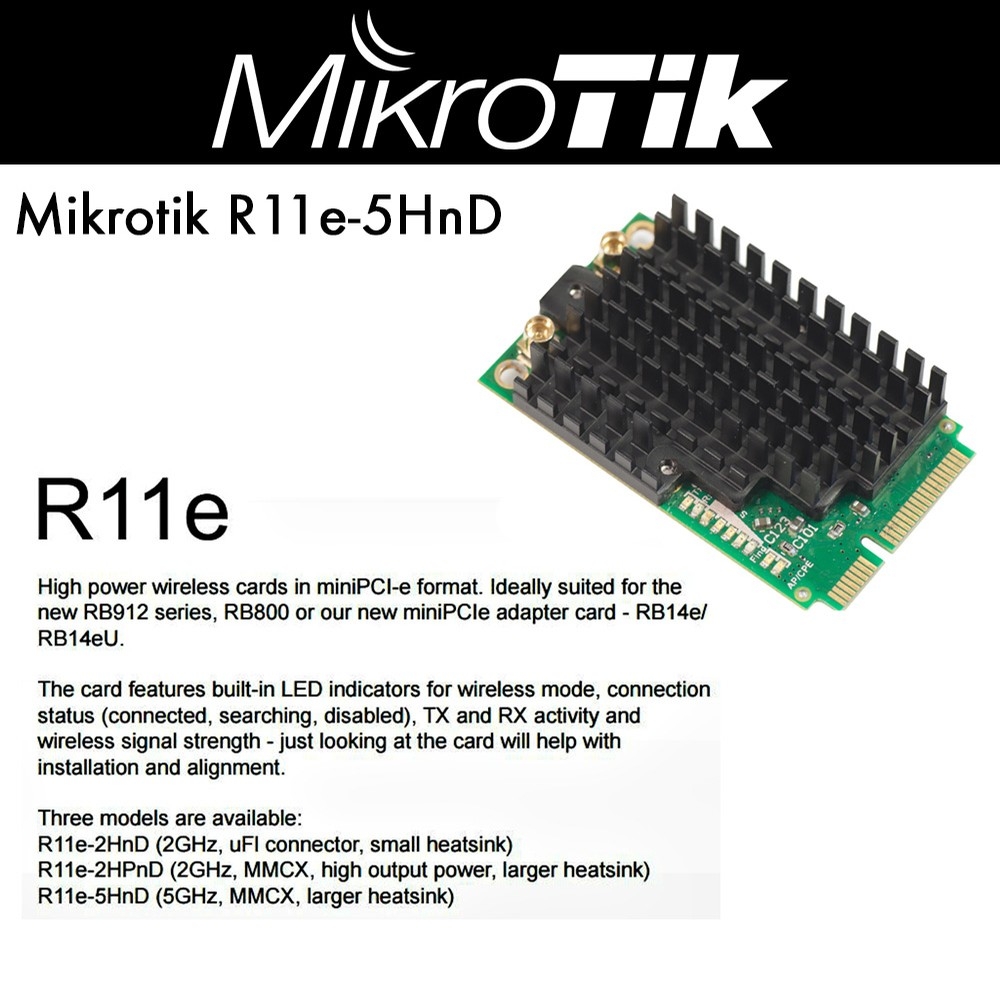

    High power 4920-5920MHz 802.11a/n dual chain wireless card in miniPCI-e format. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e.

    The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment

    • AR9580
    • 4920-5920MHz
    • 802.11a/n
    • miniPCIe
    • 2x MMCX

    • Chipset AR9580

    • Frequency range 4920-5920MHz

    • Standards 802.11a/n

    • Max output power 500mW

    • Format miniPCIe

    • Dimensions 51x30x13mm

    • Connectors 2x MMCX

    • Features 9 LED indicators, ESD

    • protection

    • Temperature Starting -5C to +65C;

    • Operating -30C to +65C

    • MAX power consumption 5W

    • TX/RX at MCS0 26dBm / -96dBm

    • TX/RX at MCS7 23dBm / -76dBm

    • TX/RX at 6Mbit 27dBm / -96dBm

    • TX/RX at 54Mbit 24dBm / -76dBm



    Datasheet

    PDF File MikroTik R11e-5HnD 5GHz HP miniPCI-e 802.11an 2x2 Card
