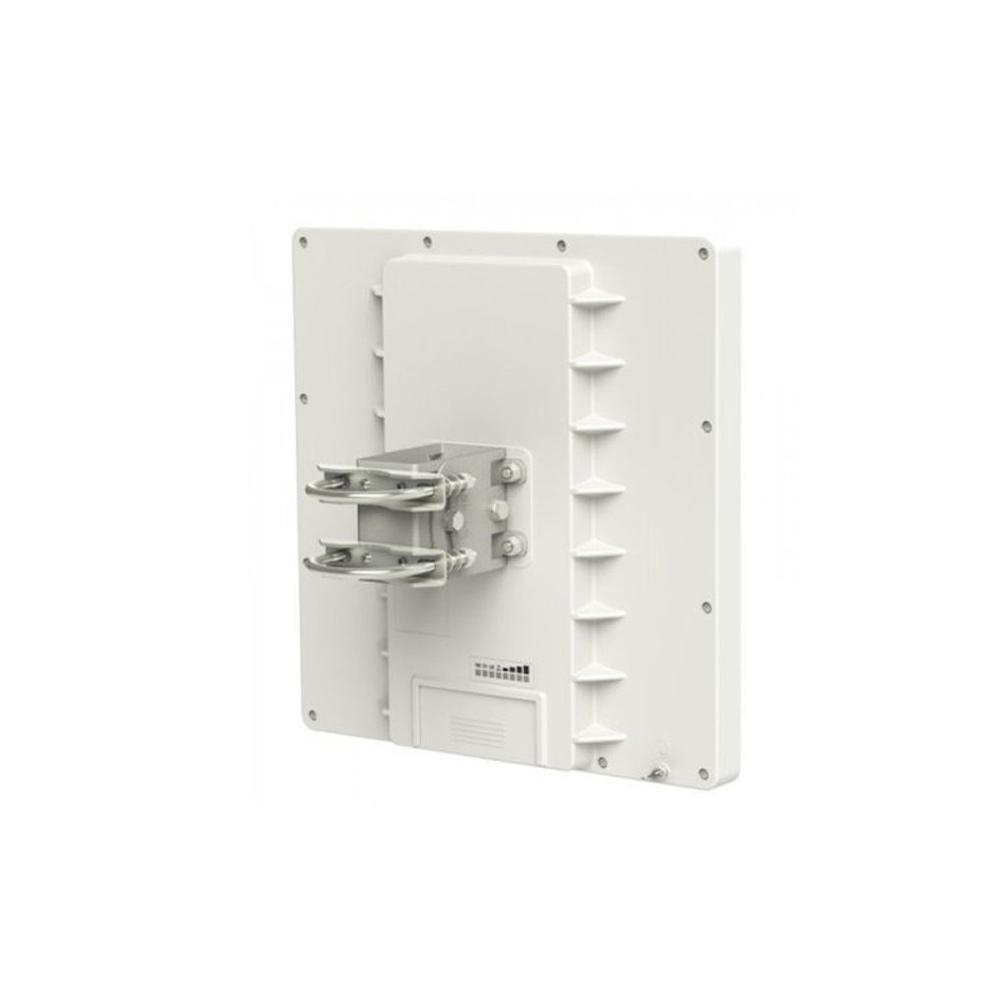

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 23dBi antenna and a high power 5GHz wireless transmitter.
Inside is the high power RB911 dual chain wireless device, with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, QRT is ideal for point to point links.
Features 1 Ethernet, Gigabit, High power, Dual chain
CPU Atheros AR9342 600MHz network processor
Memory 64MB DDR onboard memory
Data storage 128MB NAND memory chip
Ethernet One Gigabit port with Auto-MDI/X
Wireless Built in 5GHz 802.11a/n (AR9342)
Extras beeper, signal and status LEDs, voltage and temperature sensors
Power options PoE: 8-30V DC on Ether1 (Non 802.3af).
Unit dimensions 309x320x50mm
Max consumption 11W at 24V
OS MikroTik RouterOS, Level4 license (supports wireless CPE/PtP and AP mode)
Included QRT wireless device, precision mounting bracket, U bolts, pole clamp, screw kit,
24V 0.8A power adapter, Gigabit PoE injector
