ACRPSMA

Mikrotik

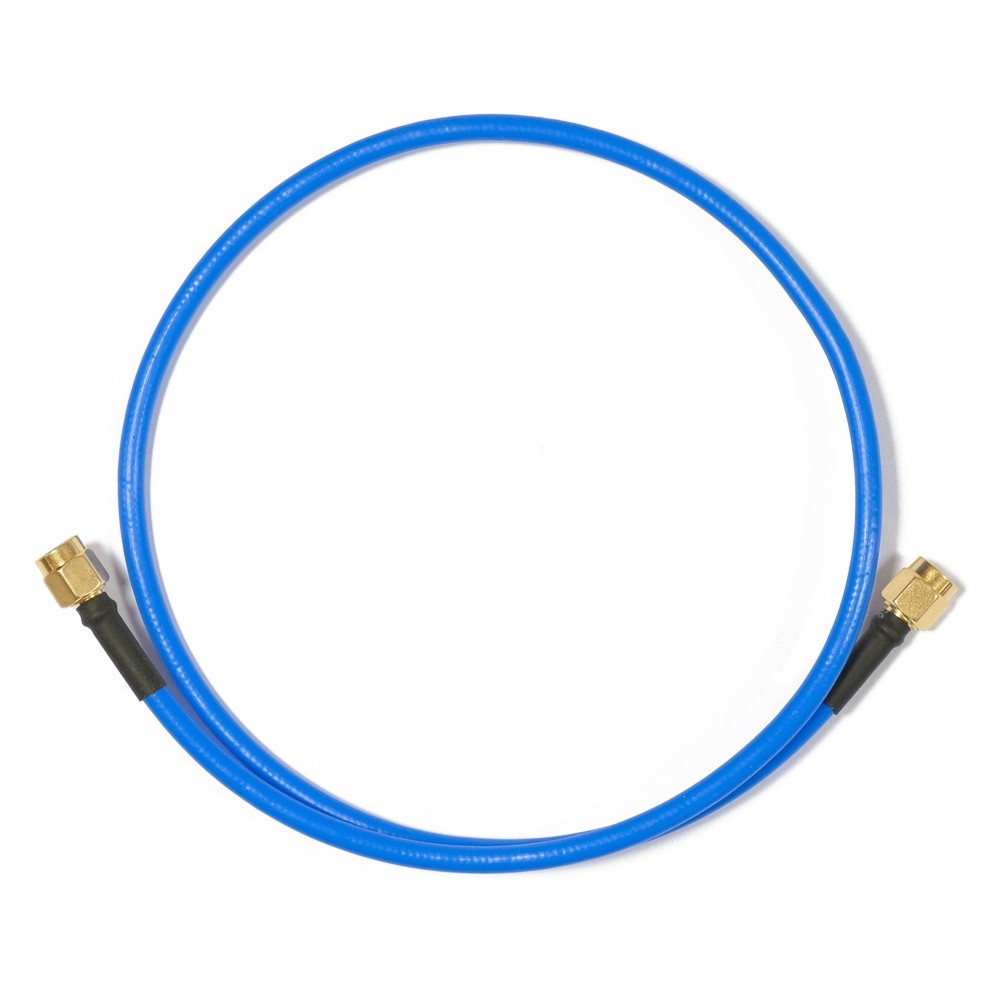

MikroTik ACRPSMA Super Low Loss 50cm RPSMA Cable


Product Highlights
  • RP-SMA connectors soldered on both ends
  • Silver plated copper inner conductor
  • 50cm (19.7'') Length
  • Frequency: up to 6 GHz
  • Total signal loss at 6GHz: 0.59 (Includes connectors)

    • Model#: ACRPSMA

    Sku: IT2361



    MSRP: $14.00


    Out of stock

    Your Price: $14.00


    MODEL: ACRPSMA

    Flex-guide (RPSMA to RPSMA cable 500mm)

    A super low loss 50cm long RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values.

    The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high end features of this product.

    The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for our BaseBox and other products with RPSMA connectors, and works with most antennas.

    SPECIFICATIONS

    Specifications ACRPSMA

    RPSMA Soldered on both ends
    Inner conductor Silver plated copper
    Frequency up to 6 GHz
    Total signal loss at 6GHz 0.59 (Includes connectors. See chart for details)
    Matching Better than -20dB
    Suited for outdoor use
    Cable length 500mm (19.7″)
    Outer diameter 4.2mm (0.2″)
    Min. bending radius static 8mm (0.3″)
    Min. bending radius repeated 40mm (1.6″)
    Operating temperature -55 to 125C

    Datasheet

    PDF File MikroTik ACRPSMA Super Low Loss 50cm RPSMA Cable
