RB911G-5HPacD-NB

Mikrotik


MikroTik RB911G-5HPacD-NB 5GHz Netbox 802.11ac dual RP-SMA outdoor



Product Highlights
  • 720 MHz CPU, 128 MB RAM
  • 802.11ac 5 GHz
  • (2)RP-SMA Connectors, (1)Gigabit Port
  • RouterOS L4, Outdoor Enclosure
  • PoE, Pole & Rail Mounting, PSU
  • Model#: RB911G-5HPacD-NB

    Sku: IT2362



    MSRP: $115.99


    Out of stock

    Your Price: $115.99


    MODEL: RB911G-5HPacD-NB (International Version. For Export Only)

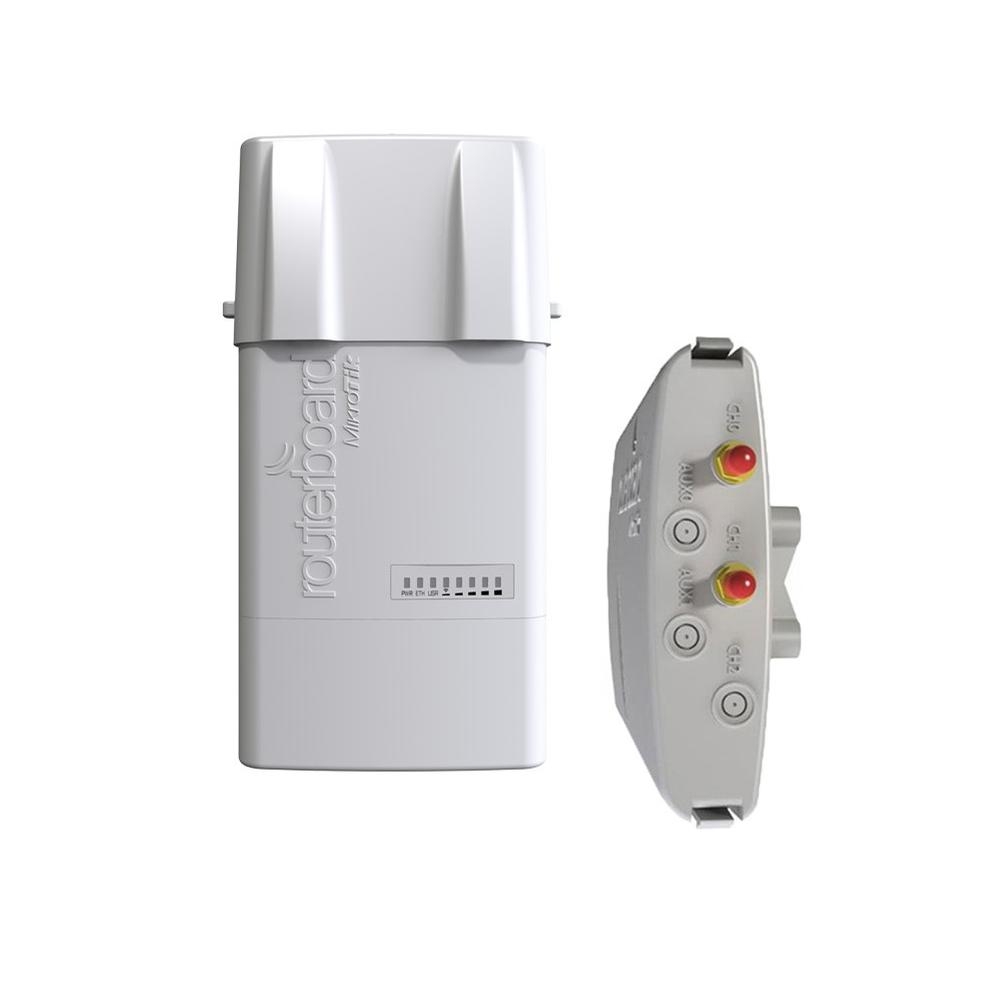

    NetBox5 (product code RB911G-5HPacD-NB) has popular BaseBox outdoor case, 720MHz CPU, 128MB RAM, Gigabit Ethernet port, 5GHz dual chain high gain 1300mW 802.11ac wireless onboard with 2 x RP-SMA connectors and USB. Unit includes PSU, PoE, mounting accessories and rail mount, it's equipped with MikroTik RouterOS L4 license.

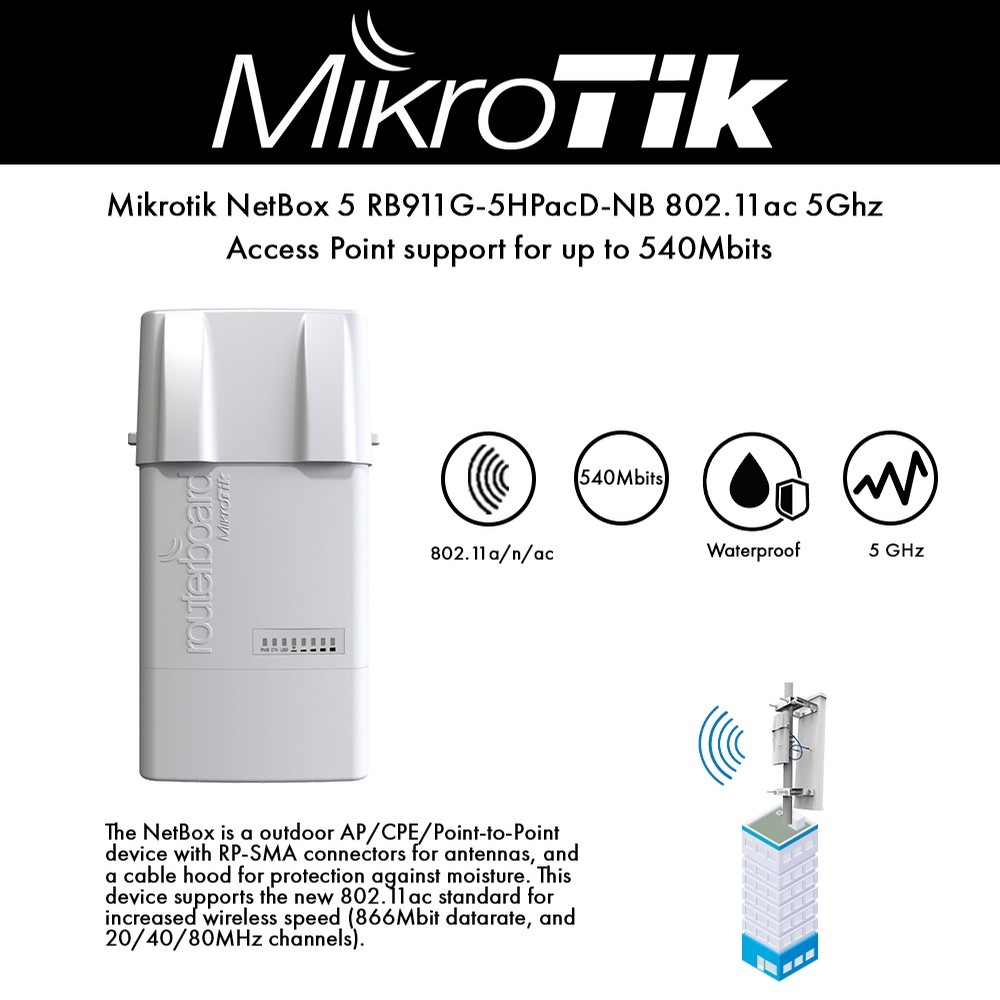

    The NetBox is a dual chain outdoor AP/CPE/Point-to-Point device with RP-SMA connectors for antennas, and a cable hood for protection against moisture. This device supports the new 802.11ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).

    The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

    Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

    • QCA9557 720MHz network processor
    • 128MB DDR onboard memory
    • One Gigabit port with Auto-MDI/X
    • QCA9882 5GHz 802.11ac, 2x RP-SMA connectors, Dual chain
    • RP-SMA Female (outside thread)
    • PoE: 8-30V DC on Ether1 (Non 802.3af). Consumption: 12W at 24VPoE: 8-30V DC on Ether1 (Non 802.3af). Consumption: 12W at 24V

    Specifications

    • Product code    RB911G-5HPacD-NB
    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    8-30 V
    • Max power consumption    11.5 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz standards    802.11a/n/ac
    • Wireless 5 GHz chip model    QCA9882

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes

    Datasheet

    PDF File MikroTik RB911G-5HPacD-NB 5GHz Netbox 802.11ac dual RP-SMA outdoor
