MTAD-5G-30D3

Mikrotik

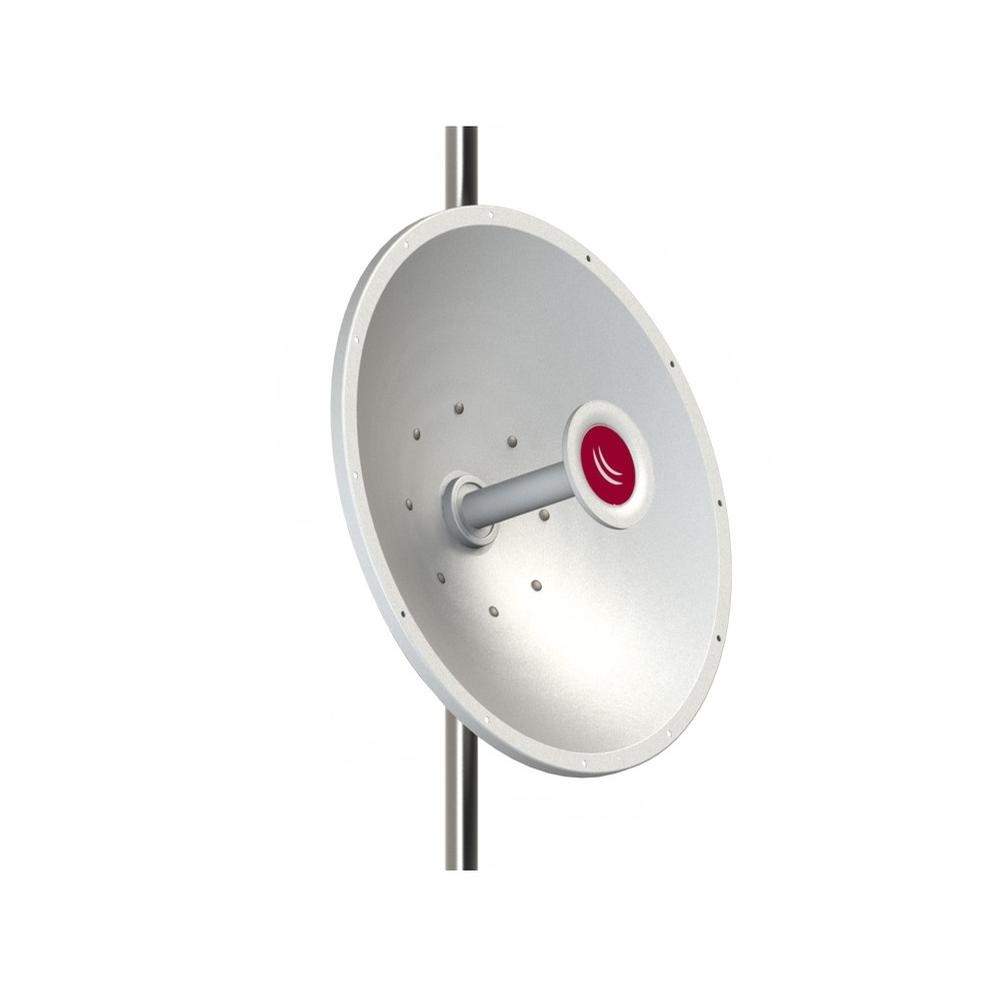

Mikrotik mANT30 MTAD-5G-30D3 30dBi Parabolic Dish Antenna for 5GHz


Product Highlights
  • Mikrotik mANT30 MTAD-5G-30D3 30dBi Parabolic Dish Antenna for 5GHz
  • mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards.
  • Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
  • Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA).
  • Weight: 5.7kg (12.6 lbs)

    • Model#: MTAD-5G-30D3

    Sku: IT2372



    MSRP: $139.99

    In Stock

    Your Price: $139.99






    Model: MTAD-5G-30D3

    mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

    Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

    Note: Basebox wireless device pictured for illustrative purposes. It is not included

    • Product code MTAD-5G-30D3

    • Antenna gain DBI 30dbi

    • Frequency Range 4.7-5.875 GHz

    • Polarization Vertical and Horizontal

    • Beamwidth 3 deg

    • VSWR ≤ 1.4 typ, ≤ 1.8 max

    • Port to Port Isolation >40dB min

    • Front-to-Back Ratio >30 dB

    • Cross Polarization >40 dB

    • Power Rating 100W

    • Impedance 50 ohms

    • Elevation adjustment range +/- 20 deg

    • Diameter x Depth 70 x 45cm (27.5 x 17.8in)

    • Weight 4.8kg (10.7 lbs)

    • Reflector Aluminum

    • Outdoor Rating ETSI EN 300 019-2-4

    • Standards EN 302 326 DN1, DN2, DN3, DN5

    • Wind Survivability 201kph (125mph)

    • Wind Load (125 mph) 181.4kg (400 lbs)

    • Operating Temperature -50°C to 80°C(-49°F to 158°F)

    • Pole Mount Diameter Range 3 to 7cm (1.2 to 2.75in)

    • Connector 2x RP-SMA Female (outside thread)

    • Packaged size 73x73x20cm (29x29x8in)

    • Packaged weight 7.5 kg (16.5 lbs)




    Datasheet

    PDF File Mikrotik mANT30 MTAD-5G-30D3 30dBi Parabolic Dish Antenna for 5GHz
