MikroTik mANT30 PA precision aligmnent wifi dish antenna 5GHz 30dBi MTAD-5G-30D3-PA
Product Highlights
Model#: MTAD-5G-30D3-PA
Sku: IT2387
MSRP: $119.99
Out of stock
Model: MTAD-5G-30D3-PA

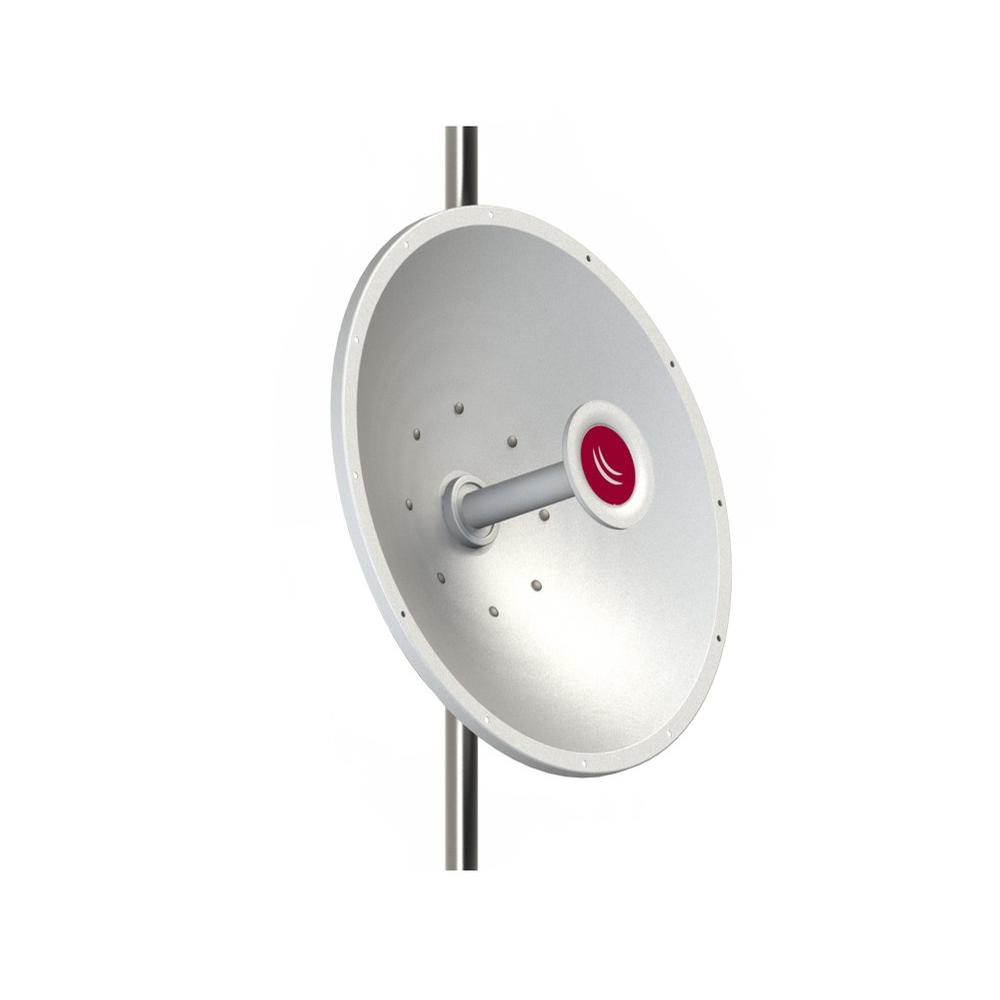

MikroTik mANT30 PA Precision Aligmnent Wifi Dish Antenna 5GHz 30dBi MTAD-5G-30D3-PA
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Note: Basebox wireless device pictured for illustrative purposes. It is not included
- Antenna gain: 30 dBi
- Beamwidth: +/-2.5 deg
- Connector: 2x RP-SMA Female (outside thread)
- Cross Polarization: >40 dB
- Diameter x Depth: 70 x 45cm (27.5 x 17.8in)
- Elevation adjustment range: +/- 15 deg
- Frequency Range: 4.7-5.875 GHz
- Front-to-Back Ratio: >30 dB
- Impedance: 50 ohms
- Operating Temperature: -50°C to 80°C(-49°F to 158°F)
- Outdoor Rating: ETSI EN 300 019-2-4
- Packaged size: 73x73x20cm (29x29x8in)
- Packaged weight: 8.4 kg (18,5)
- Polarization: Vertical and Horizontal
- Pole Mount Diameter Range: 3 to 10cm (1.2 to 3.9in)
- Port to Port Isolation: >40dB min
- Power Rating: 100W
- Reflector: Aluminum
- Standards EN 302 326 DN1, DN2, DN3, DN5
- VSWR ≤ 1.4 typ, ≤ 1.8 max
- Weight 5.7kg (12.6 lbs)
- Wind Load (125 mph) 181.4kg (400 lbs)
- Wind Survivability 201kph (125mph)
