RB911G-5HPacD-NB B01

Mikrotik

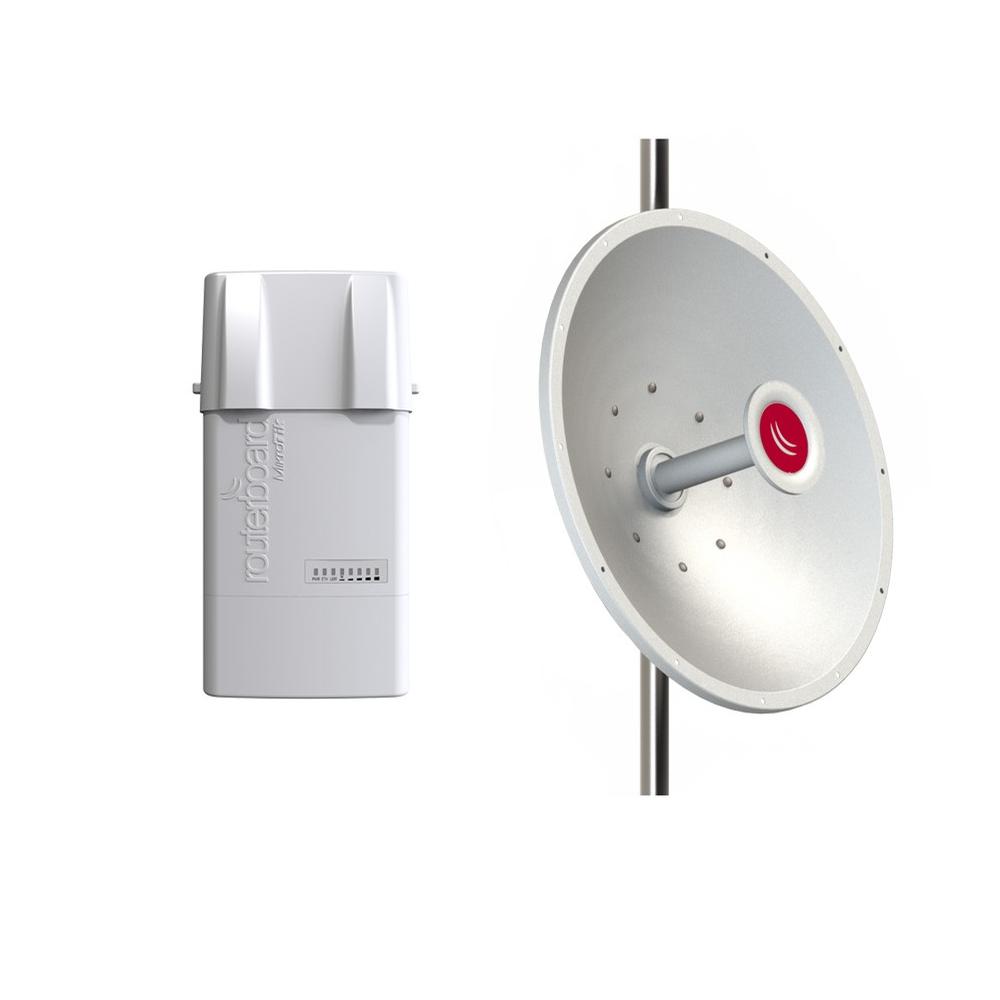

Mikrotik NetBox 5 Outdoor Access Point 802.11ac + mANT30 30dBi 5 Ghz Dish wifi antenna


Product Highlights
  • The NetBox 5 is a outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture.
  • The NetBox 5 supports the new 802.11a/n/ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).
  • Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
  • mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards.
  • Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

    • Model#: RB911G-5HPacD-NB B01

    Sku: IT2391



    MSRP: $259.99


    Out of stock

    NetBox 5 (RB911G-5HPacD-NB)

    The NetBox 5 is a dual chain outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture. This device supports the new 802.11a/n/ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).

    The case can be opened with one hand, and is protected against the elements. Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

    Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.



    mANT30 (MTAD-5G-30D3)

    mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable. MTAD-5G-30D3 has a standard type mount

    NetBox 5 (RB911G-5HPacD-NB)

    Specifications

    • Product code    RB911G-5HPacD-NB
    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    8-30 V
    • Max power consumption    11.5 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz standards    802.11a/n/ac
    • Wireless 5 GHz chip model    QCA9882

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes



    mANT30 (MTAD-5G-30D3)

    Specifications

    • Product code    MTAD-5G-30D3
    • Beamwidth    +/-2.5 deg
    • Connector    2x RP-SMA Female (outside thread)
    • Cross Polarization    >40 dB
    • Diameter x Depth    70 x 45cm (27.5 x 17.8in)
    • Elevation adjustment range    +/- 20 deg
    • Frequency Range    4.7-5.875 GHz
    • Front-to-Back Ratio    >30 dB
    • Impedance    50 ohms
    • Operating Temperature    -50°C to 80°C(-49°F to 158°F)
    • Outdoor Rating    ETSI EN 300 019-2-4
    • Packaged size    73x73x20cm (29x29x8in)
    • Packaged weight    7.5 kg (16.5 lbs)
    • Polarization    Vertical and Horizontal
    • Pole Mount Diameter Range    3 to 7cm (1.2 to 2.75in)
    • Port to Port Isolation    >40dB min
    • Power Rating    100W
    • Reflector    Aluminum
    • Standards    EN 302 326 DN1, DN2, DN3, DN5
    • VSWR    ≤ 1.4 typ, ≤ 1.8 max
    • Weight    4.8kg (10.7 lbs)
    • Wind Load (125 mph)    181.4kg (400 lbs)
    • Wind Survivability    201kph (125mph)
