RB2011UiAS-RM BD1

Mikrotik

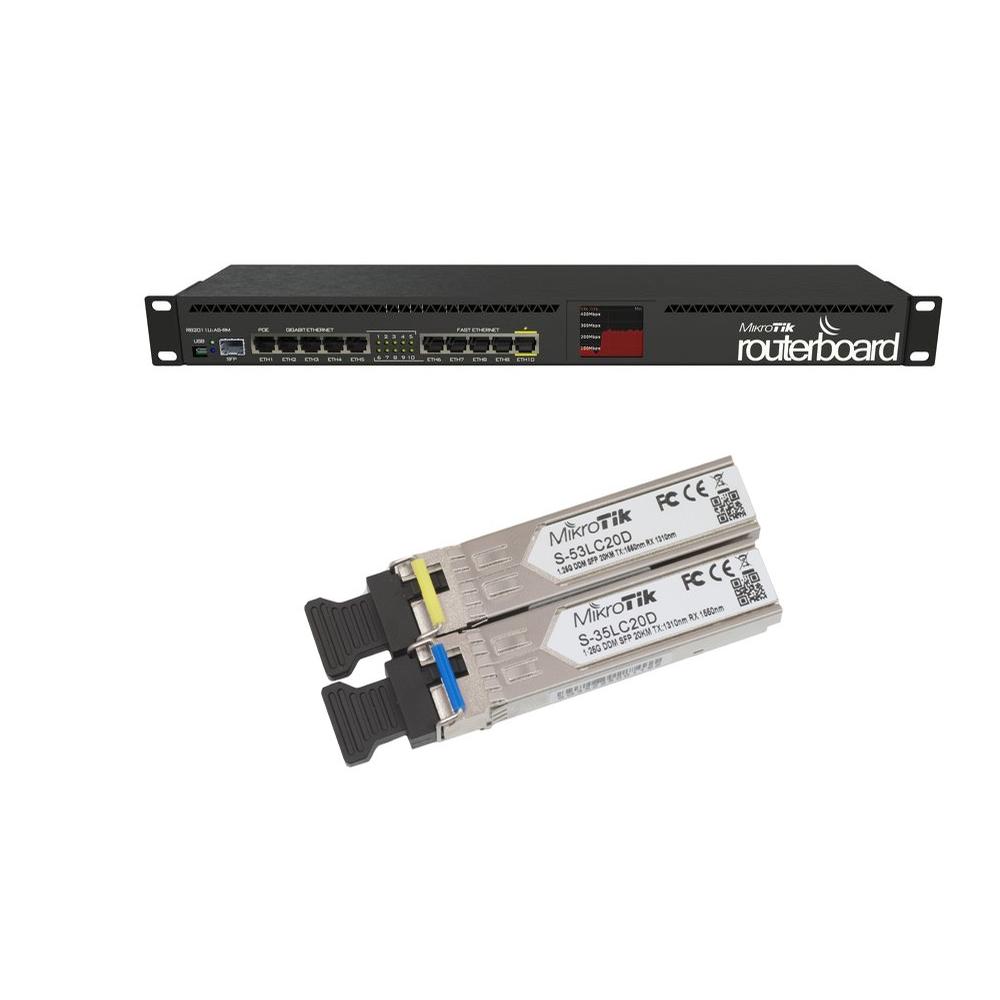

Mikrotik RouterBOARD RB2011 router RB2011UiAS-RM 10-port w/ Mikrotik S-3553LC20D pair SFP 1.25G 20kM


Model#: RB2011UiAS-RM BD1

Sku: IT2395



MSRP: $179.99


Out of stock

RB2011UiAS-RM

  • The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.  The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.  RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present. There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

S-3553LC20D

  • S-35/53LC20D is a pair of SFP transceivers, the S-35LC20D is a 1.25G Single Mode optical SFP module with a LC connector, T1310nm/R1550nm, which works for connections up to 20km and supports DDM. The S-53LC20D is a 1.25G Single Mode optical SFP transceiver with an LC connector,T1550nm/R1310nm, which works for connections up to 20km and supports DDM.

RB2011UiAS-RM

Specifications

  • Architecture    MIPSBE
  • CPU    AR9344
  • CPU core count    1
  • CPU nominal frequency    600 MHz
  • Dimensions    214mm x 86mm for PCB
  • License level    5
  • Operating System    RouterOS
  • Size of RAM    128 MB
  • Storage size    128 MB
  • Storage type    NAND
  • Tested ambient temperature    -35C to +65C

Powering

  • Max Power consumption    6W
  • PoE in    Passive PoE
  • PoE out    Passive PoE
  • PoE in input Voltage    8-30 V
  • Number of DC inputs    2 (DC jack, PoE-IN)
  • DC jack input Voltage    8-30 V

Ethernet

  • 10/100 Ethernet ports    5
  • 10/100/1000 Ethernet ports    5

Fiber

  • SFP DDMI    Yes
  • SFP ports    1

Peripherals

  • Serial port    RJ45
  • Number of USB ports    1
  • USB Power Reset    Yes
  • USB slot type    USB type A
  • Max USB current (A)    2

Other

  • PCB temperature monitor    Yes
  • Voltage Monitor    Yes



S-3553LC20D

  • Connector    LC UPC
  • Data Rate    1.25G
  • Distance    20KM
  • Format    SFP
  • Mode    SM
