MTAS-5G-15D120

Mikrotik

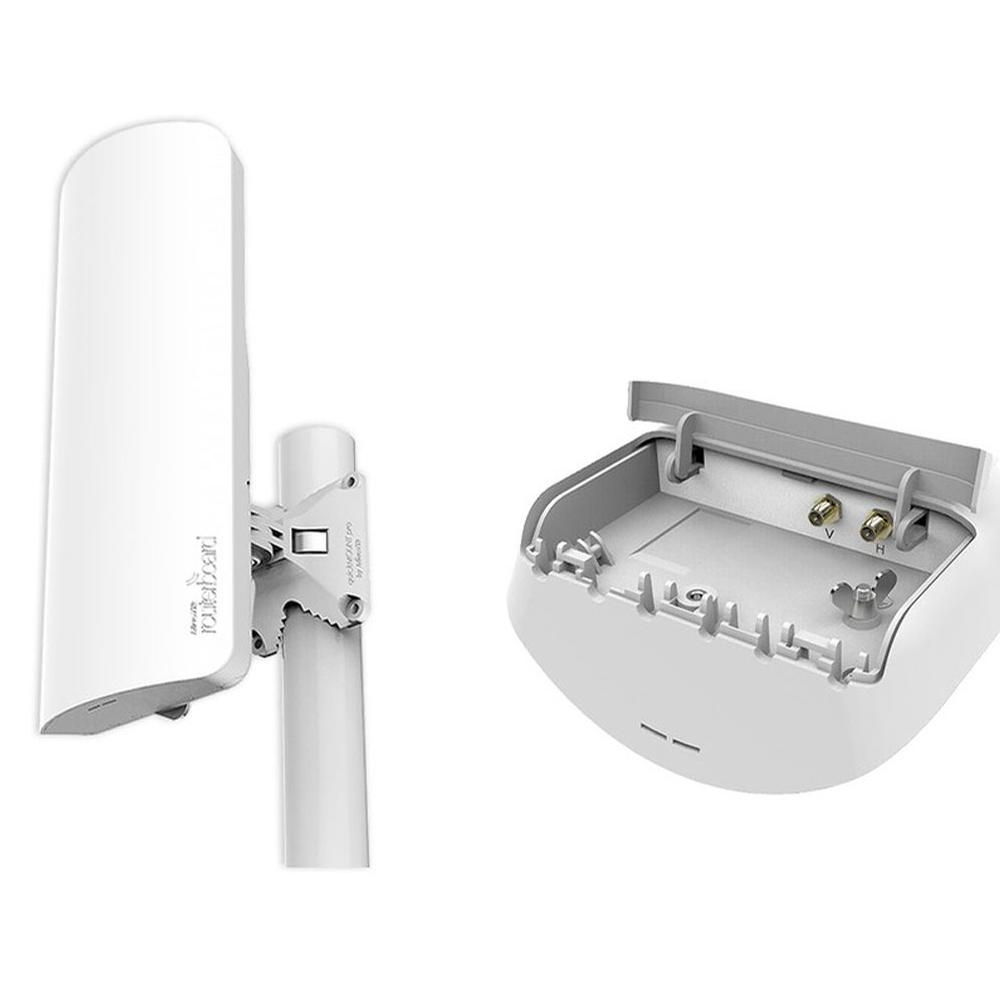

MikroTik MTAS-5G-15D120 5GHz 15dBi 120° Sector Antenna 2x2


Product Highlights
  • 5.17 - 5.825 GHz
  • Vertical and horizontal polarization
  • 15 dBi
  • quickMOUNT PRO

    • Model#: MTAS-5G-15D120

    Sku: IT2405



    MSRP: $69.99


    Out of stock

    Your Price: $69.99


    MODEL: MTAS-5G-15D120

    The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

    The mANT is a dual-polarization antenna with two RP-SMA connectors and a 120 degree beamwidth

    The mANT15s is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.

    Details

    • Product code:  MTAS-5G-15D120
    • Antenna gain DBI:  15
    • Frequency Range:  5.17 - 5.825 GHz
    • Polarization:  Vertical and horizontal
    • Beamwidth:  120 deg (azimuth) 10 deg (elevation)
    • VSWR:  1.43 typ, 1.8 max
    • Port to Port Isolation:  >40 dB min
    • Front-to-Back Ratio:  >30 dB
    • Cross Polarization:  >30 dB
    • Diameter x Depth:  140 x 348 x 82 mm
    • Weight:  734 g
    • Connector:  two RP-SMA

    Datasheet

    PDF File MikroTik MTAS-5G-15D120 5GHz 15dBi 120° Sector Antenna 2x2
