RB952Ui-5ac2nD

Mikrotik

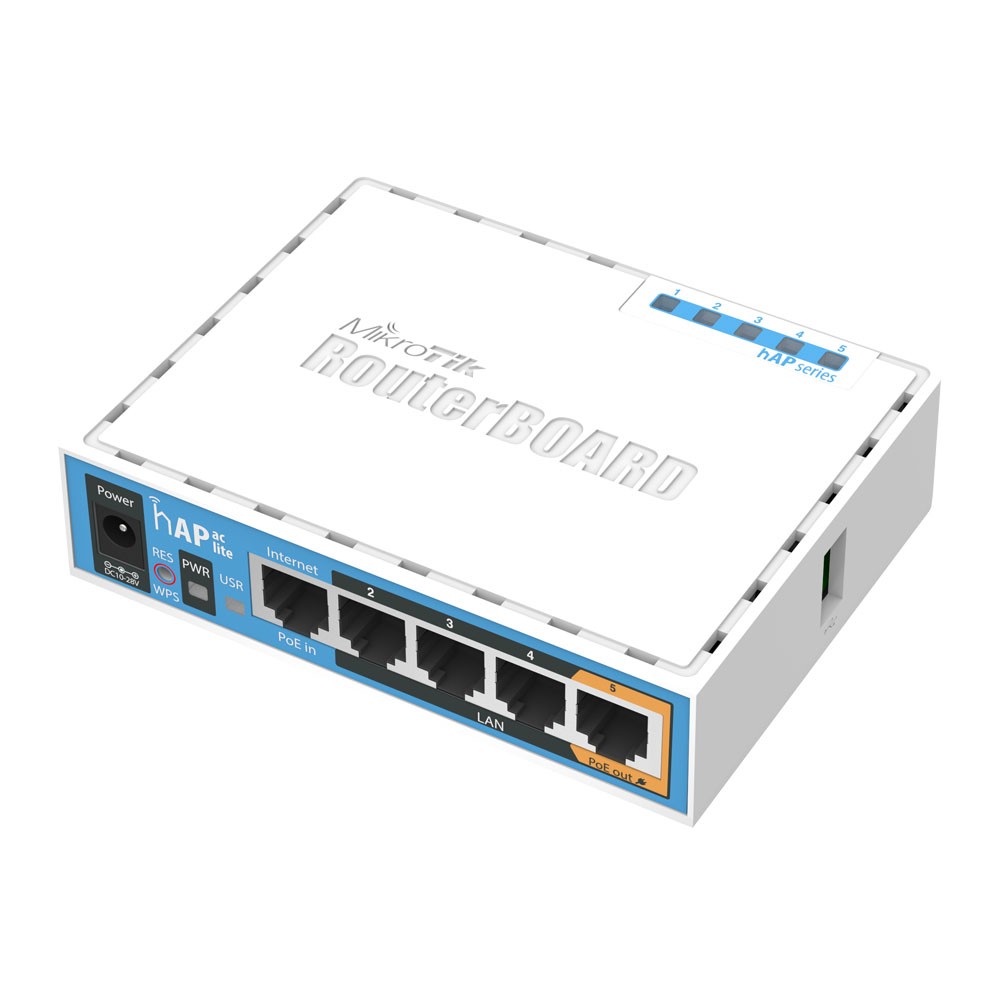

Mikrotik hAP ac lite RB952Ui-5ac2nD Access Point Dual-Concurrent 2.4/5GHz w/ 5x Ethernet Ports INTL


Product Highlights
  • The hAP ac lite also known as RB952Ui-5ac2nD is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time
  • Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5).
  • Dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
  • USB port for 3G/4G modem and a RouterOS L4 license.
  • RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range (Specific frequency range can be limited by country regulations).

    • Model#: RB952Ui-5ac2nD

    Sku: IT2406



    MSRP: $69.99


    Out of stock

    hAP ac lite (RB952Ui-5ac2nD) - International Version

    The hAP ac lite also known as RB952Ui-5ac2nD is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

    Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    113 x 89 x 28mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -30°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    12-30 V
    • PoE out    Passive PoE
    • PoE-out ports    Ether5
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    10-30 V
    • Max out per port output (input < 30 V)    500 mA
    • Max total out (A)    500 mA
    • Max power consumption    8 W
    • AC speed    AC750
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    2
    • Wireless 2.4 GHz chip model    QCA9531
    • Wireless 2.4 GHz generation    Wi-Fi 4
    • Wireless 5 GHz Max data rate    433 Mbit/s
    • Wireless 5 GHz number of chains    1
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    2
    • Wireless 5 GHz chip model    QCA9887
    • Wireless 5 GHz generation    Wi-Fi 5
    • 10/100 Ethernet ports     5
    • Number of USB ports     1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1
    • Certification    CE/RED, FCC, IC, EAC, ROHS
