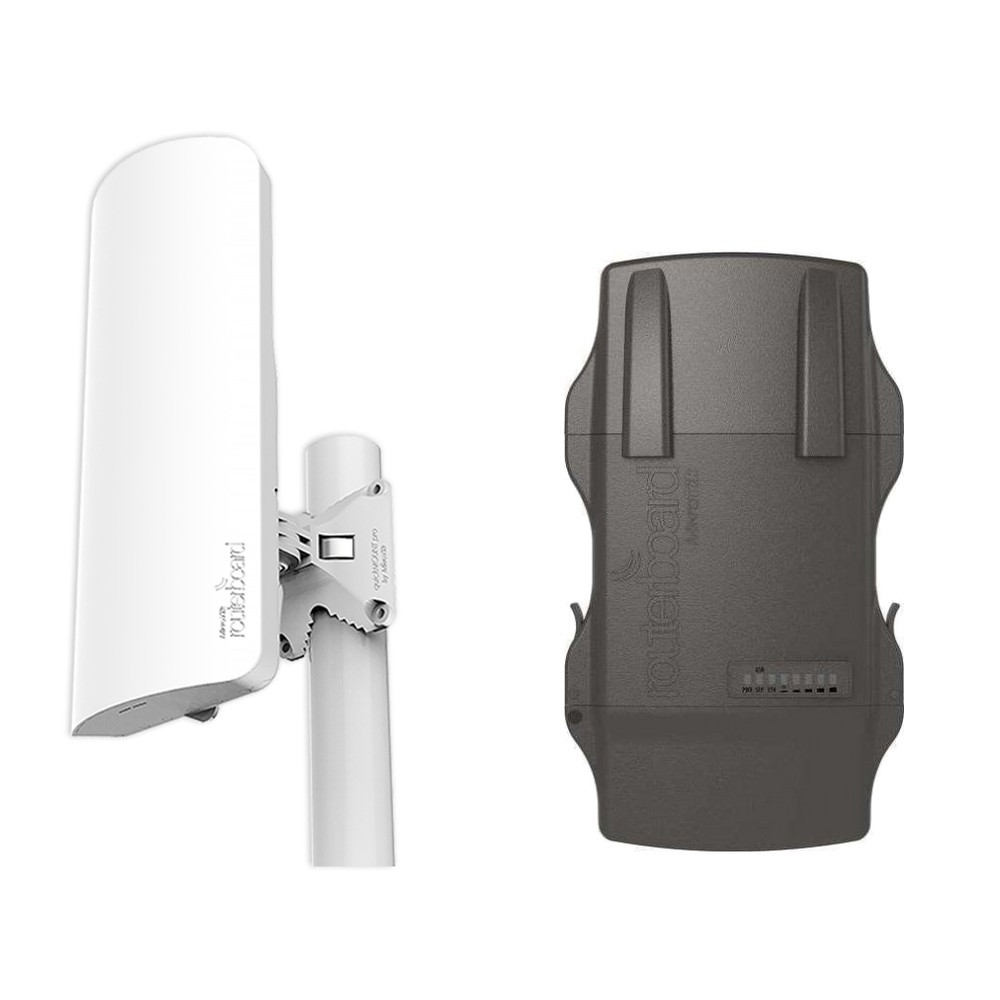

Mikrotik NetMETAL 5 11ac Outdoor AP + mANT15s 5GHz 15dBi Sector Antenna
Product Highlights
Model#: RB921UAGS BD01
Sku: IT2409
Out of stock
Your Price: N/A
NetMetal 5SHP (RB921UAGS-5SHPacD-NM)
This NetMetal version is equipped with super high power 1.3W 2x2 dual chain 802.11a/n/ac wireless and two RP-SMA connectors for external antennas
The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.
The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license. The enclosure is sealed to conform with the IP66 standard.
mANT 15s (MTAS-5G-15D120)
The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.
NetMetal 5SHP (RB921UAGS-5SHPacD-NM)
- Product code RB921UAGS-5SHPacD-NM
- CPU nominal frequency - 720 MHz
- SFP DDMI - yes
- CPU core count - 1
- Size of RAM - 128 MB
- 10/100 Ethernet ports - None
- 10/100/1000 Ethernet ports - 1
- MiniPCI slots - 0
- MiniPCI-e slots - 0
- Wireless chip model - QCA9882-BR4A-R
- Wireless standards - 802.11ac
- Number of USB ports 1
- Power Jack - 0
- 802.3af support - no
- PoE out - No
- Supported input voltage - 8 V - 30 V
- PoE in - Yes
- Voltage Monitor - Yes
- CPU temperature monitor - No
- PCB temperature monitor - Yes
- Dimensions - 143x247x48mm (PCB)
- Operating System - RouterOS
- License level - 4
- Antenna gain DBI - No
- Current Monitor - No
- CPU - QCA9557-AT4A-R
- Max Power consumption - 21 W
- SFP ports 1
- SFP+ ports - None
- USB slot type - USB type A
- Number of chains - 2
- Serial port - None
mANT 15s (MTAS-5G-15D120)
- Product code: MTAS-5G-15D120
- Antenna gain DBI: 15
- Frequency Range: 5.17 - 5.825 GHz
- Polarization: Vertical and horizontal
- Beamwidth: 120 deg (azimuth) 10 deg (elevation)
- VSWR: 1.43 typ, 1.8 max
- Port to Port Isolation: >40 dB min
- Front-to-Back Ratio: >30 dB
- Cross Polarization: >30 dB
- Diameter x Depth: 140 x 348 x 82 mm
- Weight: 734 g
- Connector: two RP-SMA
