Mikrotik mANTBox 19s 2 UNITS Sector Antenna 5GHz with 19dBi 1x SFP Port 1x Gigabit Port and Router Built in

Mikrotik mANTBox 19s 2 UNITS Sector Antenna 5GHz with 19dBi 1x SFP Port 1x Gigabit Port and Router Built in

Product Highlights

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in

Powered by the RB921 device, the mANTBox comes ready to use with everything included

The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power

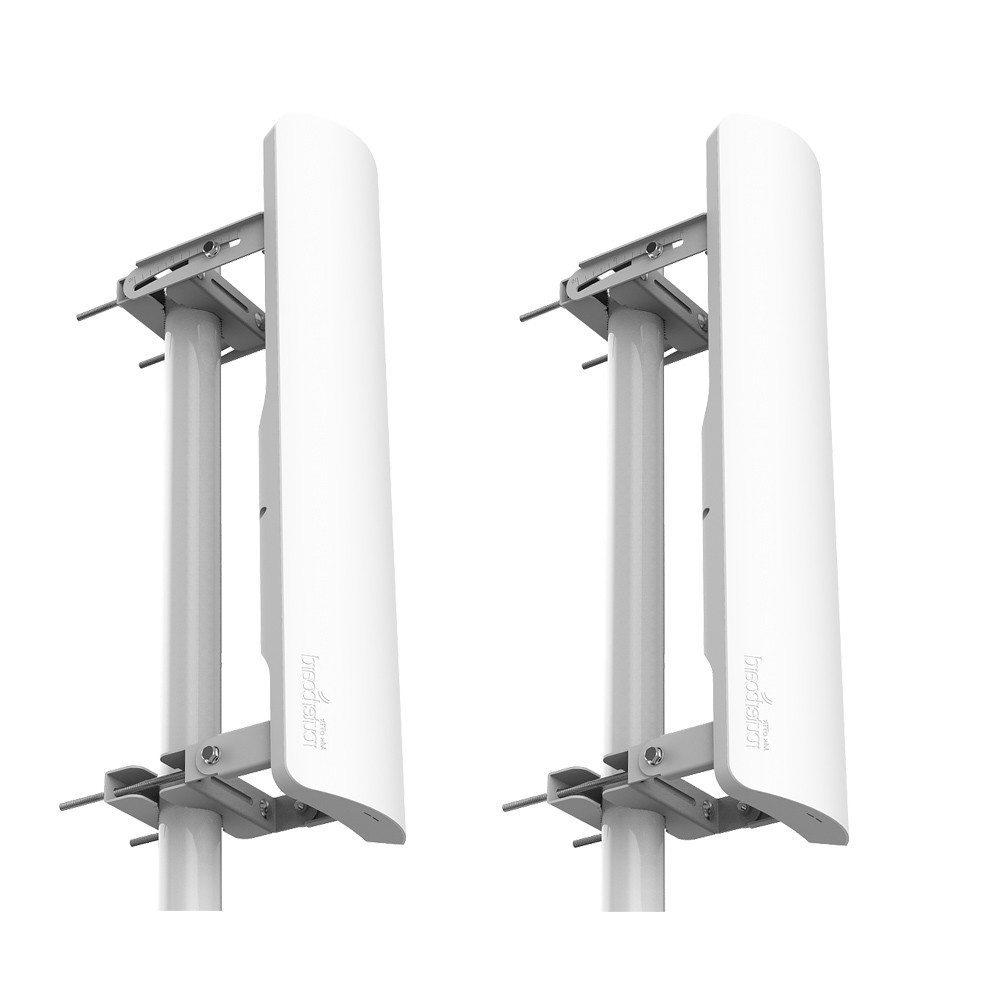

mANTBox 19s comes with 19dBi 120 degree sector antenna

Dimensions: 152 x 598 x 78 mm, PoE in: Passive PoE, Wireless 5 GHz number of chains: 2, Wireless 5 GHz standards: 802.11a/n/ac, 10/100/1000 Ethernet ports: 1, SFP ports: 1

Model#: RB921GS-5HPacD-19SX2

Sku: IT2420

Out of stock

The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.

mANTBox 19s comes with 19dBi 120 degree sector antenna.

CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 152 x 598 x 78 mm
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
PoE in Passive PoE
PoE in input Voltage 12-28 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max power consumption 13 W
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 19
Wireless 5 GHz chip model QCA9892
Wireless 5 GHz generation Wi-Fi 5
10/100/1000 Ethernet ports 1
SFP ports 1
PCB temperature monitor Yes
Voltage Monitor Yes
