RB911G-5HPacD-QRT-B2

Mikrotik

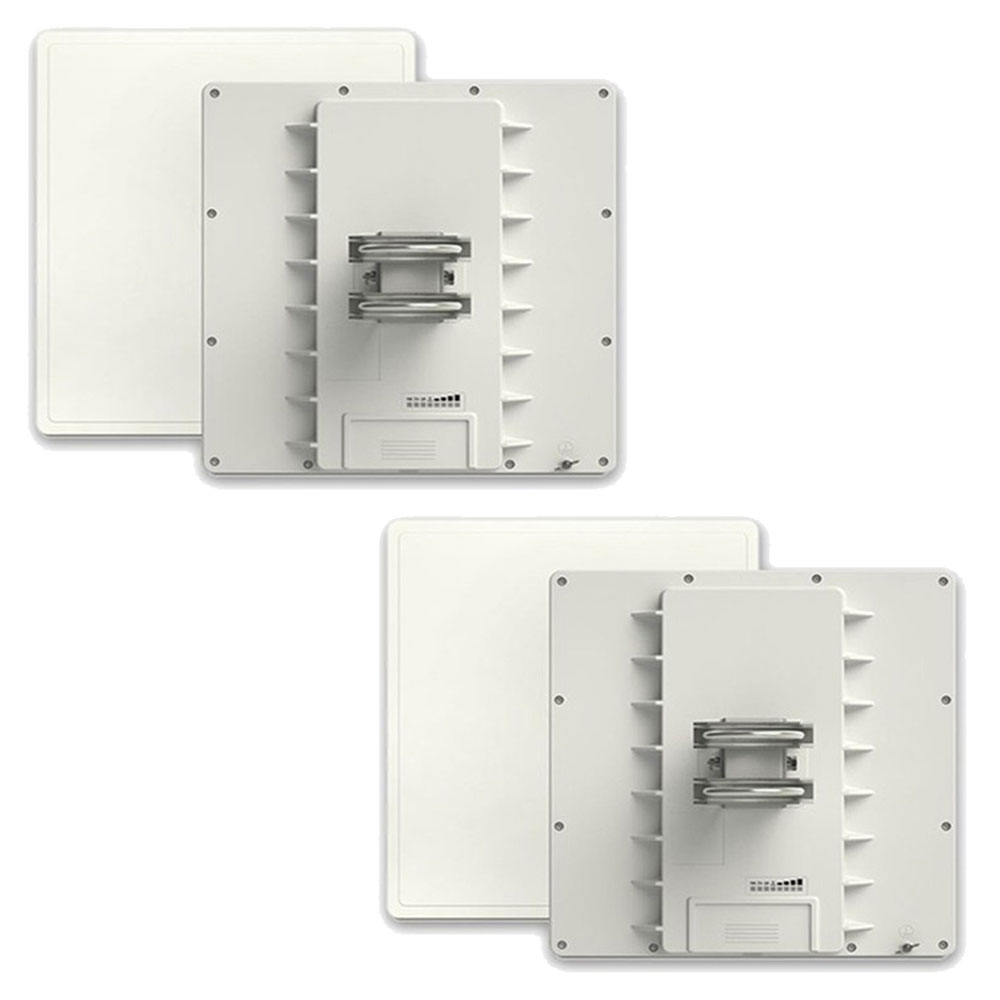

Mikrotik QRT 5 ac 5GHz 802.11ac 24dBi Outdoor Flat Panel Antenna PoE OSL4 Gigabit port - 2 PACK


Product Highlights
  • The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD.
  • The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.
  • It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless
  • Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds.
  • Operating System: RouterOS

    • Model#: RB911G-5HPacD-QRT-B2

    Sku: IT2446

    Out of stock

    • The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.

    • Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.

    • Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds

    Specifications

    • Product code    RB911G-5HPacD-QRT
    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    309x320x50mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    10.5 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    24
    • Wireless 5 GHz chip model    QCA9882

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
