The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes:

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - a SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. Port also allows to switch from one to another interface from software, or in event of disconnect, providing new, unique hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - due to how ports are connected to CPU, new CCR1009 models can achieve higher theoretical throughput.

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24v 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

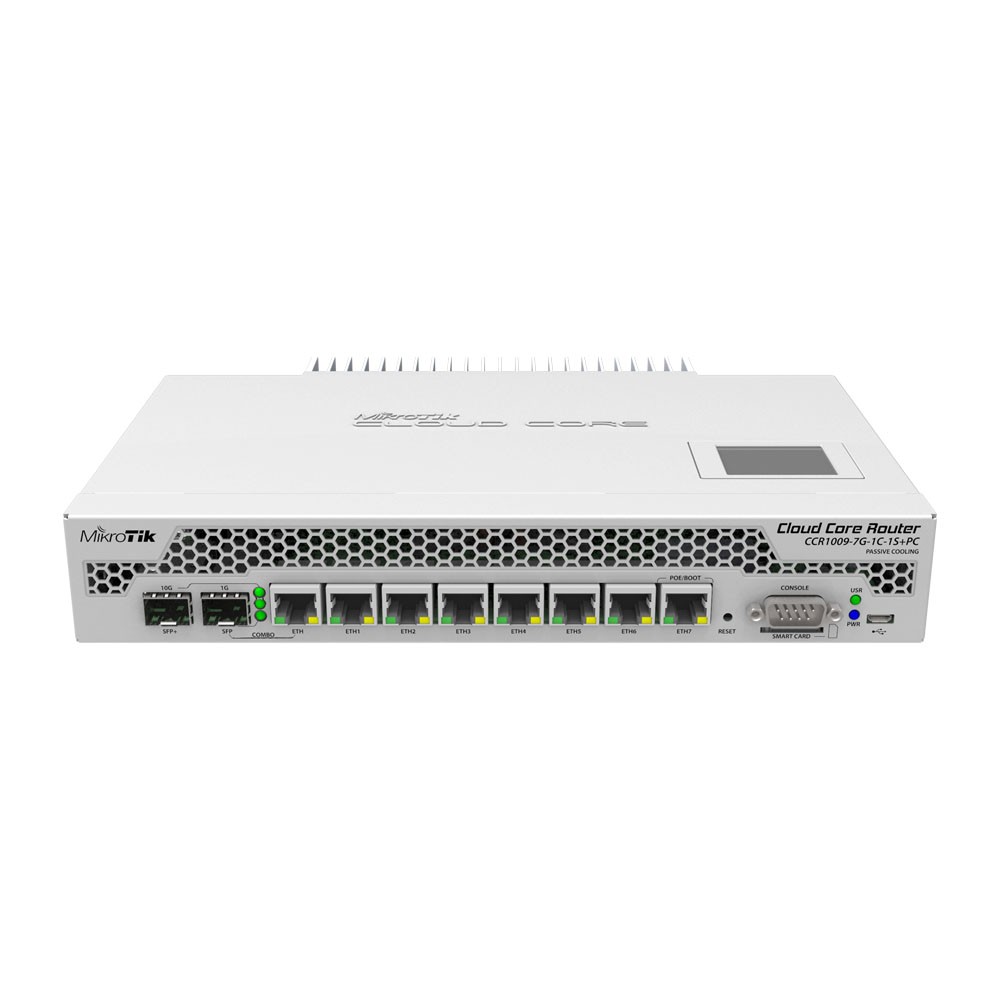

Two versions are available, the CCR1009-7G-1C-1S+PC additionally includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.
