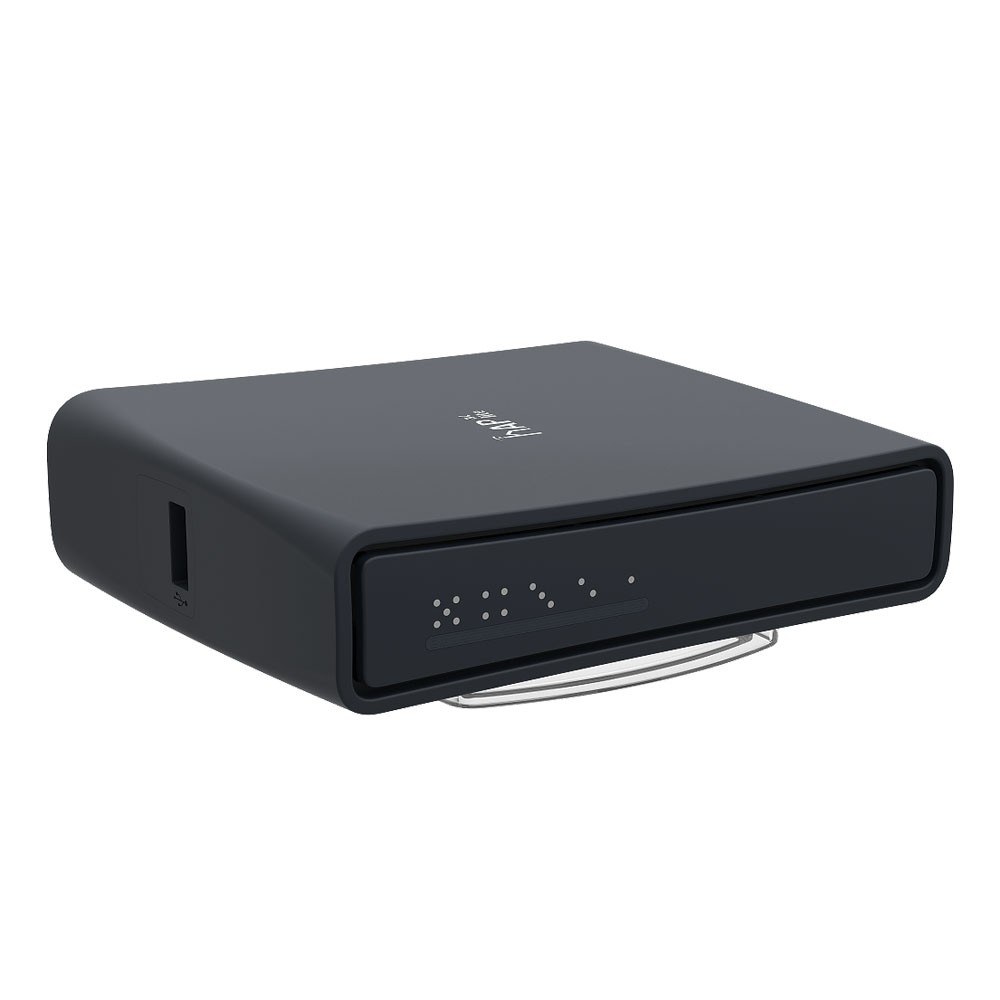

MikroTik RB952Ui-5ac2nD-TC 2.4/5GHz hAP ac lite 802.11ac Tower - INTERNATIONAL VERSION
Product Highlights
Model#: RB952Ui-5ac2nD-TC
Sku: IT2452
MSRP: $55.99
In Stock
Your Price: $55.99
MODEL: RB952Ui-5ac2nD-TC
International Version
Tower Case
The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time. New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
The hAP ac lite can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. Unit provides PoE output function for port 5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
The hAP ac lite is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
- Passive PoE output on port 5
- USB port for 3G/4G modem
- Architecture MIPSBE
- CPU QCA9531
- CPU core count 1
- CPU nominal frequency 650 MHz
- Dimensions 34 x 119 x 98mm
- License level 4
- Operating System RouterOS
- Size of RAM 64 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -30°C to 70°C
- PoE in Passive PoE
- PoE in input Voltage 10-28 V
- PoE out Passive PoE
- PoE-out ports Ether5
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 10-28 V
- Max out per port output (input < 30 V) 500 mA
- Max total out (A) 500 mA
- Max power consumption 8 W
- AC speed AC750
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2
- Wireless 2.4 GHz chip model QCA9531
- Wireless 2.4 GHz generation Wi-Fi 4
- Wireless 5 GHz Max data rate 433 Mbit/s
- Wireless 5 GHz number of chains 1
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 2
- Wireless 5 GHz chip model QCA9887
- Wireless 5 GHz generation Wi-Fi 5
- 10/100 Ethernet ports 5
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
- Certification CE/RED, FCC, IC, EAC, ROHS
Datasheet
