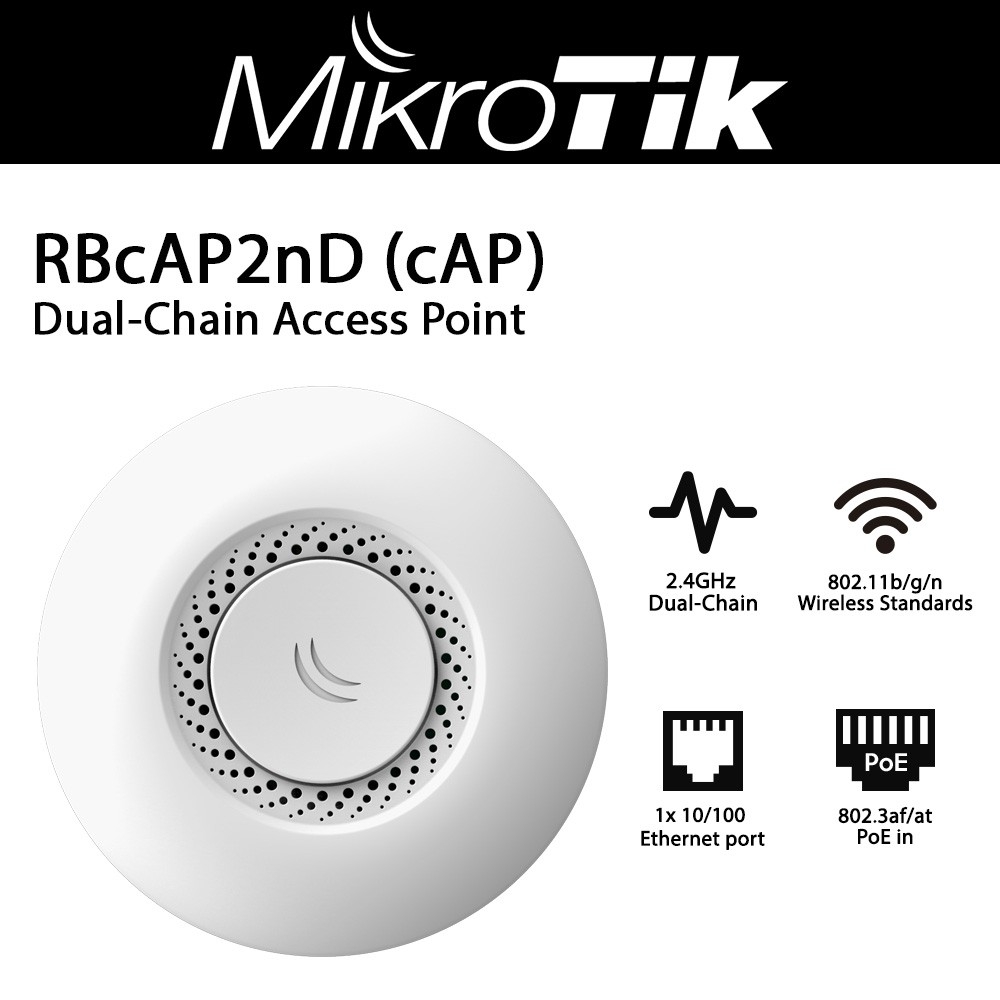

Mikrotik RBcAP2nD 2.4GHz Dual-Chain Ceiling Access Point with 802.11b/g/n Support



Product Highlights
  • 650 MHz CPU, 64 MB RAM
  • (1)10/100
  • 2.4 GHz 802.11b/g/n
  • RouterOS L4, Plastic Case, Integrated Antenna, PoE, PSU
  • Model#: RBcAP2nD

    Sku: IT2455



    MSRP: $52.99

    In Stock

    Your Price: $52.99






    MODEL: RBcAP2nD

    The RouterBOARD cAP 2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

    cAP 2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.

    Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

    Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

    • Architecture    MIPSBE
    • CPU    QCA9533
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    185mm diameter, 31mm height
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    802.3af/at
    • PoE in input Voltage    11-57 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    4 W
    • Antenna gain dBi for 2.4 GHz    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz chip model    QCA9533
    • Wi-Fi generation      4
    • 10/100 Ethernet ports     1
