RB2011UiAS-RM BD2

Mikrotik

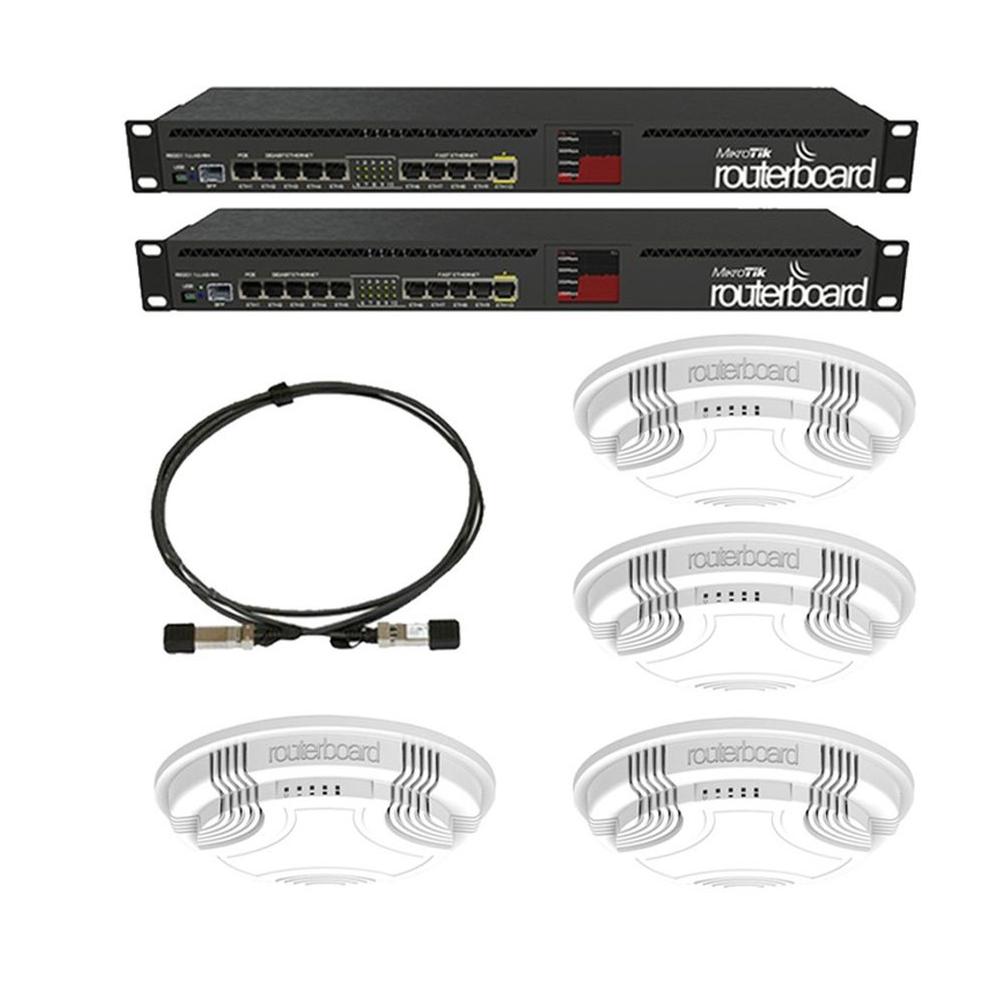

Mikrotik RB2011UiAS-RM router multi port + SFP Cable + RBcAP2nD Access Point


Model#: RB2011UiAS-RM BD2

Sku: IT2462

Out of stock

RB2011UiAS-RM (x2)

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present.

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA. RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.



S+DA0001 (x1)

This is highly cost-effective way to connect two SFP/SFP+ devices (for example two units of CCR1036-8G-2S+) for very short distances, within racks and across adjacent racks.
They provide a low cost, low power and low latency interconnect solution for 10-Gigabit Ethernet, Fiber Channel and other industry standards, and are direct attached compliant and fully conform to the SFP+ MSA specifications.



RBcAP2nD (x4)

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.



RB2011UiAS-RM

  • CPU nominal frequency: 600 MHz
  • SFP DDMI: Yes
  • CPU core count: 1
  • Size of RAM: 128 MB
  • 10/100 Ethernet ports: 5
  • 10/100/1000 Ethernet ports: 5
  • Number of USB ports: 1
  • Power Jack: 1
  • PoE in: Yes
  • PoE out: Yes
  • Supported input voltage: 8 V - 30 V
  • Voltage Monitor: Yes
  • PCB temperature monitor: Yes
  • Dimensions: 214mm x 86mm for PCB
  • Operating System: RouterOS
  • Tested ambient temperature: -35C to +65C
  • License level: 5
  • CPU: AR9344
  • SFP ports: 1
  • USB slot type: microUSB type AB
  • Serial port: RJ45
  • Storage type: NAND
  • Storage size: 128 MB

S+DA0001

  • Connect two SFP/SFP+ devices for very short distances
  • Interconnect solution for 10-Gigabit Ethernet, Fiber Channel and other industry standards
  • Are direct attached compliant and fully conform to the SFP+ MSA specifications

RBcAP2nD

  • CPU nominal frequency: 650 MHz
  • CPU core count:  1
  • Size of RAM:  64 MB
  • 10/100 Ethernet ports:  1
  • Wireless chip model:  QCA9533
  • Wireless standards:   802.11b/g/n
  • PoE in:  802.3af/at
  • Supported input voltage:  11 V - 57 V
  • Dimensions:   185mm diameter, 31mm heigh
  • Operating System:   RouterOS
  • Tested ambient temperature:   -30C to +70C
  • License level:   4
  • Antenna gain DBI:   2
  • CPU:   QCA9533
  • Max Power consumption:  4W
  • Number of chains:   2
  • Storage type:   FLASH
  • Storage size:   16 MB
