RB953GS-5HnT-RP-US

Mikrotik

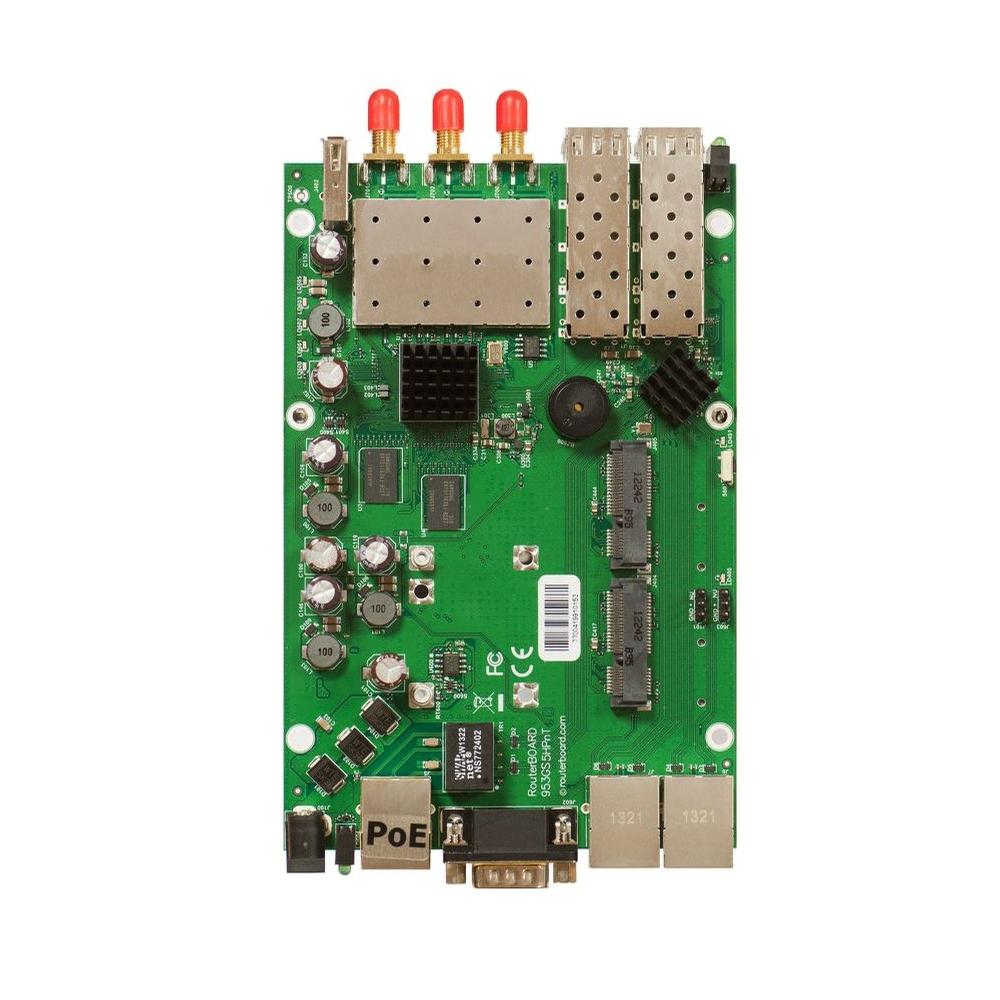

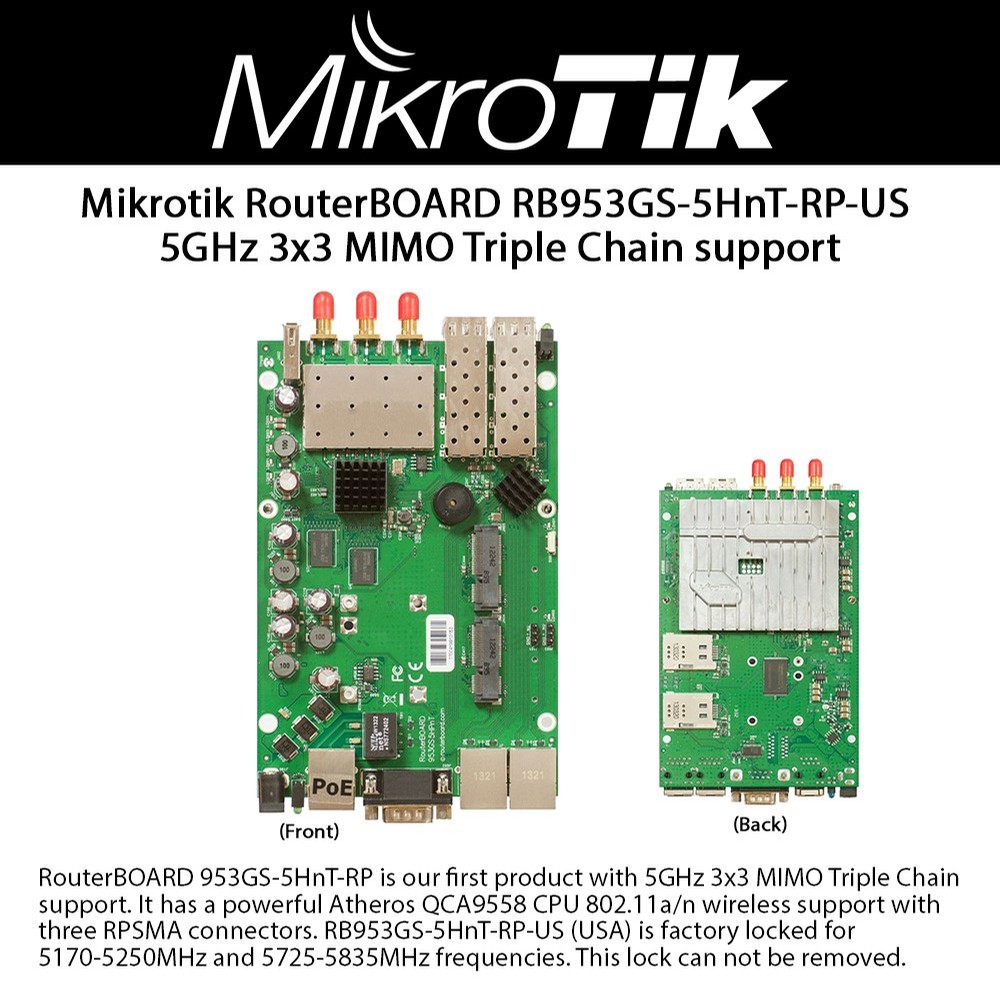

Mikrotik RouterBOARD RB953GS-5HnT-RP 5GHz 3x3 MIMO Triple Chain support US Version


Product Highlights
  • RouterBOARD 953GS-5HnT-RP is our first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors
  • RB953GS-5HnT is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless
  • It comes with two SFP cages to accommodate FTTH and fiber ring requirements
  • Handy additions are two miniPCI-express slots and two SIM slots, for multiple 3G/4G connections or wireless expansion
  • Dimensions: 183x105x24mm, Size of RAM: 128 MB Storage size: 128 MB, Wireless 5 GHz standards: 802.11a/n, PoE in: Passive PoE, 10/100/1000 Ethernet ports: 3, SFP ports: 2

    • Model#: RB953GS-5HnT-RP-US

    Sku: IT2481



    MSRP: $159.99


    Out of stock

    RouterBOARD 953GS-5HnT-RP (US Version) is our first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.

    RB953GS-5HnT is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.

    RB953GS-5HnT-RP-US is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    • CPU:    QCA9558
    • CPU core count:   1
    • CPU nominal frequency:   720 MHz
    • Dimensions:   183x105x24mm
    • License level:   5
    • Operating System:   RouterOS
    • Size of RAM:    128 MB
    • Storage size:   128 MB
    • Storage type:   NAND
    • Max Power consumption:   25W
    • PoE in:   Passive PoE
    • PoE in input Voltage:   11-30 V
    • Number of DC inputs:    2 (DC jack, PoE-IN)
    • DC jack input Voltage:   11-30 V
    • Wireless 5 GHz number of chains:   3
    • Wireless 5 GHz standards:       802.11a/n
    • Wireless 5 GHz chip model:      QCA9558
    • 10/100/1000 Ethernet ports:    3
    • SFP ports:     2
    • Number of SIM slots:    2 Modem (Mini SIM)
    • MiniPCI-e slots:    2
    • Number of USB ports:   1
    • Serial port:    RS232
    • USB Power Reset:   Yes
    • USB slot type:    USB type A
