RB1100AHx4 Dude

Mikrotik

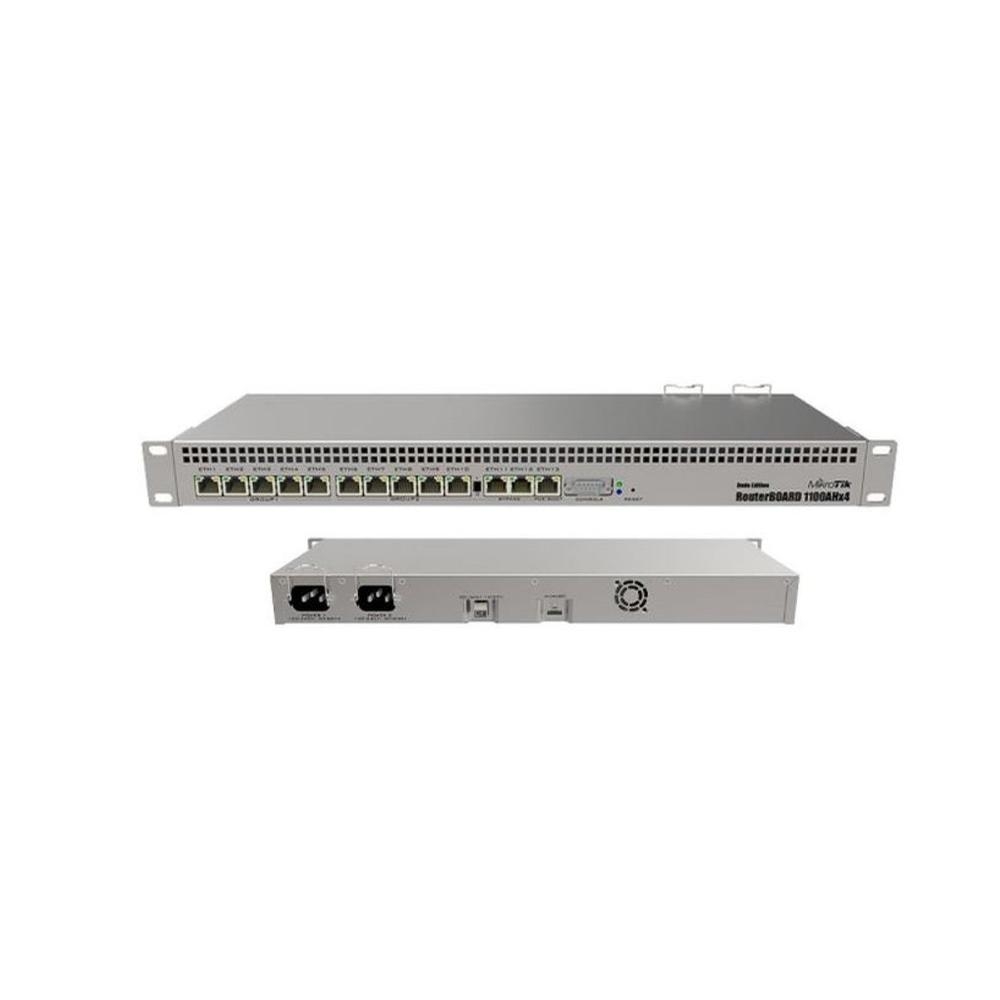

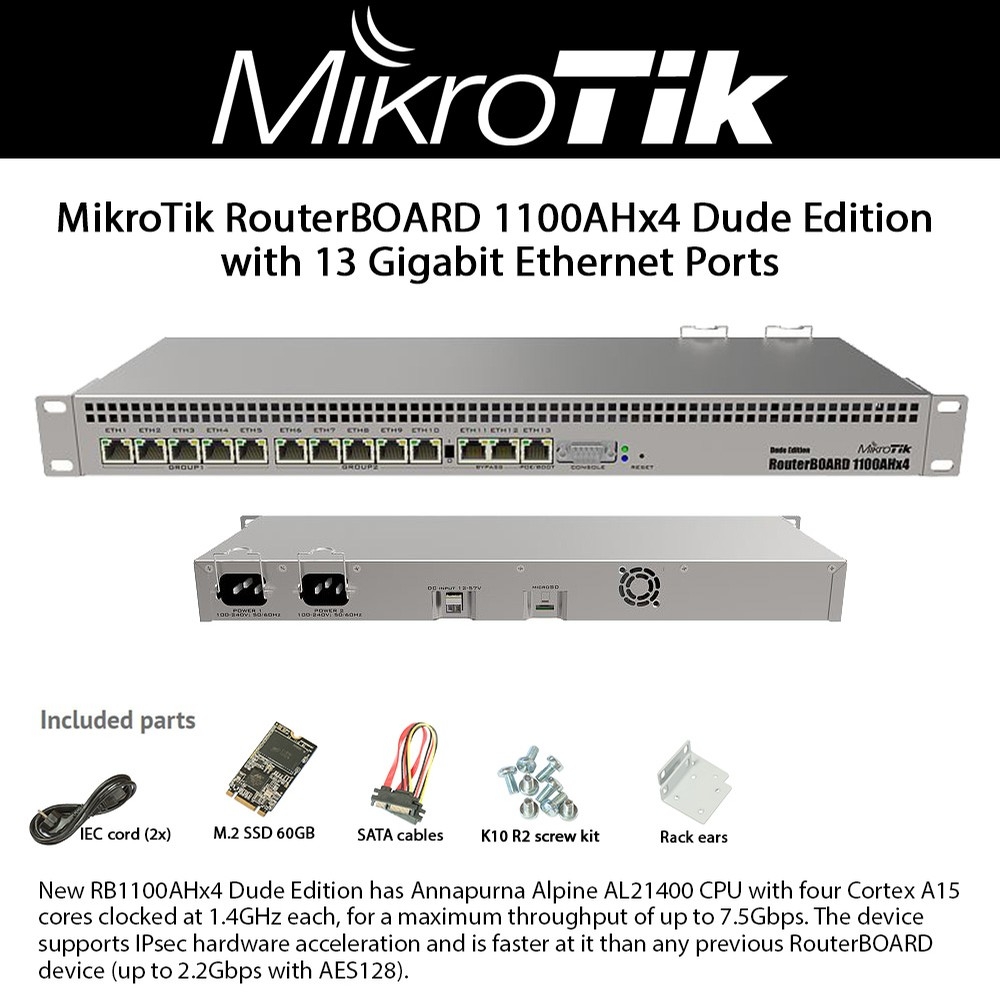

MikroTik RB1100AHx4 Dude RouterBOARD 1100AHx4 Dude Edition w/ 13 Gigabit Ports



Product Highlights
  • RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps
  • The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128)
  • Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support)
  • The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed
  • Dimensions: 444 x 148 x 47 mm; PoE in: 802.3af/at; PoE in input Voltage: 20-57 V; Number of AC inputs: 2; Extended storage: 60GB M.2 SSD included; M.2 slots: 2; Memory card type: microSD
  • Model#: RB1100AHx4 Dude

    Sku: IT2484



    MSRP: $409.99

    In Stock

    Your Price: $409.99






    New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

    Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

    The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

    Specifications

    • Architecture    ARM 32bit
    • CPU    AL21400
    • CPU core count    4
    • CPU nominal frequency    1.4 GHz
    • Dimensions    444 x 148 x 47 mm
    • License level    6
    • Operating System    RouterOS
    • Size of RAM    1 GB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    802.3af/at
    • PoE in input Voltage    20-57 V
    • Number of AC inputs    2
    • Number of DC inputs    2 (2-pin terminal, PoE-IN)
    • 2-pin terminal input Voltage    -48, 20-57 V
    • Max power consumption    33 W
    • Max power consumption without attachments    25 W

    Ethernet

    • 10/100/1000 Ethernet ports    13

    Peripherals

    • Extended storage    60GB M.2 SSD included
    • M.2 slots    2
    • Memory card type    microSD
    • Memory Cards    1
    • SATA ports    2x SATA3
    • Serial port    RS232

    Other

    • Current Monitor    Yes
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
