LHG XL HP5-US

Mikrotik

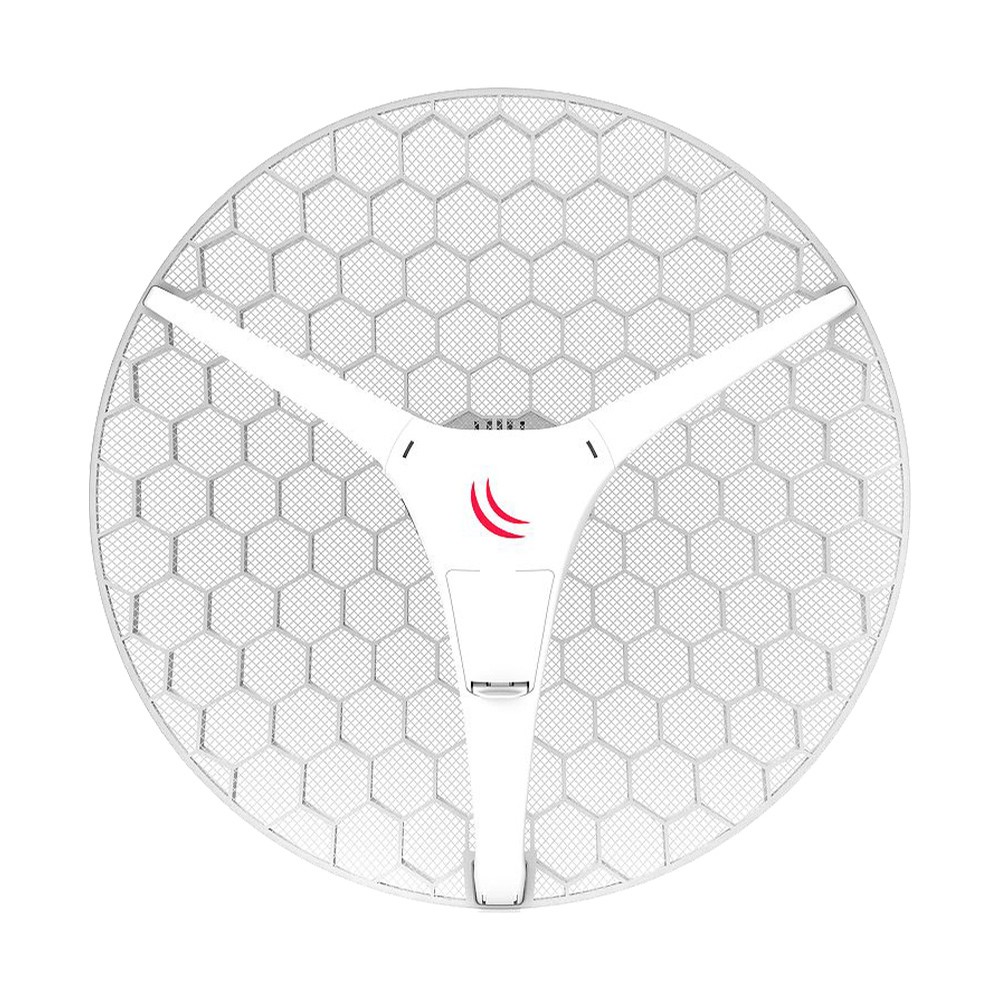

MikroTik LHG XL HP5 5GHz 802.11 a/n wireless 27 dBi grid antenna US Version


Product Highlights
  • The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power
  • Designed to reach up to 40km in point-to-point setups at full speed
  • The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables
  • LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed
  • Operating System: RouterOS

    • Model#: LHG XL HP5-US

    Sku: IT2486



    MSRP: $89.99


    Out of stock

    The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed. The grid design ensures protection against wind, and the fact that the antenna element is built into the
    wireless unit means no loss on cables.

    LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    • CPU:     AR9344
    • CPU core count:    1
    • CPU nominal frequency:    600 MHz
    • Dimensions:    Ø 550 x 245 mm;
    • License level:   3
    • Operating System:    RouterOS
    • Size of RAM:    64 MB
    • Storage size:   16 MB
    • Storage type:   FLASH
    • Tested ambient temperature:    -40 to 70° C



    • Max Power consumption:   7W
    • PoE in:     Passive PoE
    • PoE in input Voltage:    10-28 V
    • Number of DC inputs:     1 (PoE-IN)



    • Wireless 5 GHz number of chains:   2
    • Wireless 5 GHz standards:       802.11a/n
    • Antenna gain dBi for 5 GHz:     27
    • Wireless 5 GHz chip model:      AR9344
    • 10/100 Ethernet ports:     1
