LDF 5 US

Mikrotik

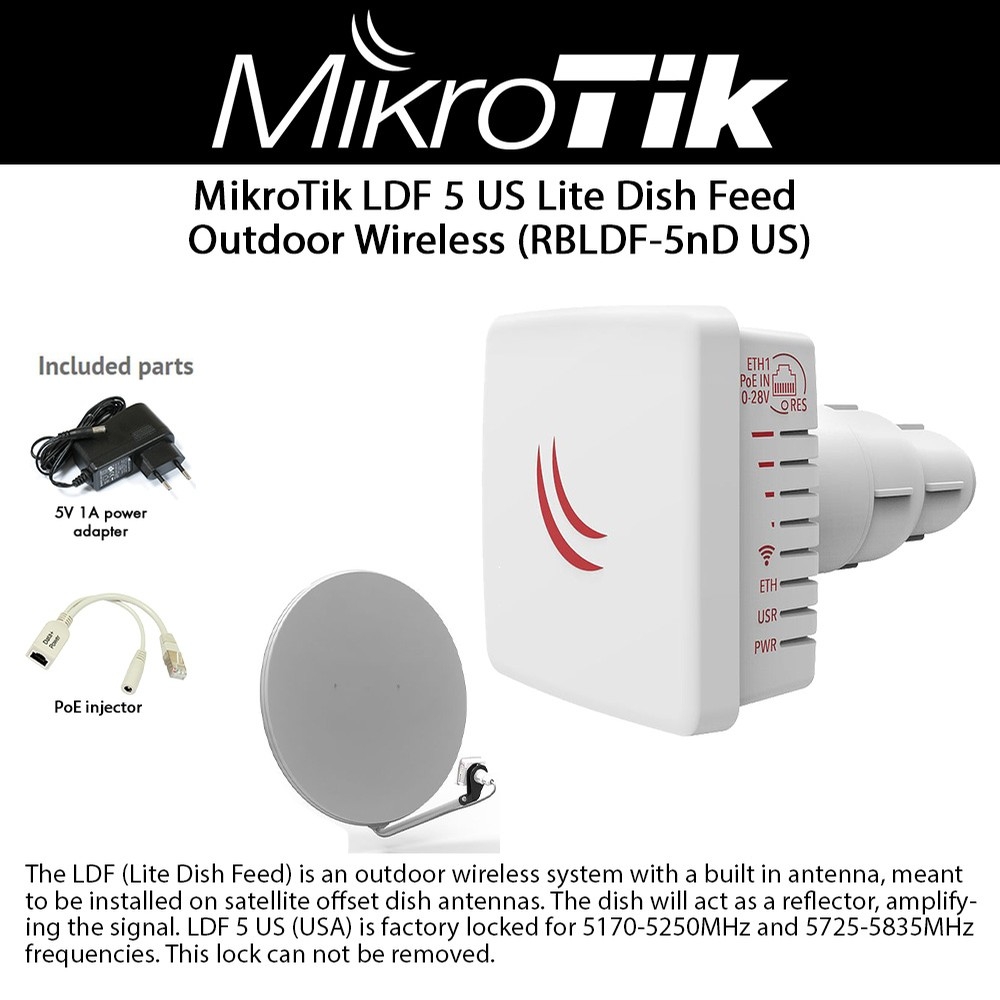

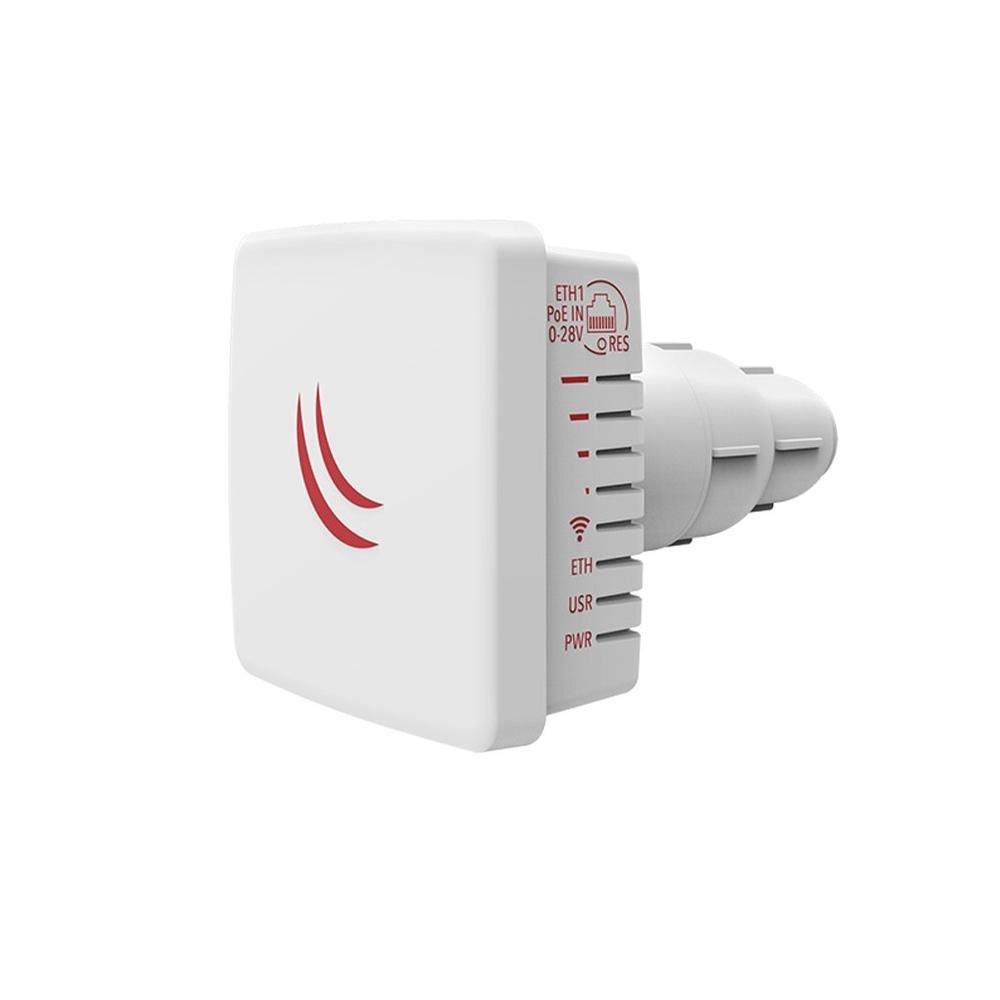

Mikrotik LDF 5 RBLDF-5n-US Outdoor Dish Feed 5GHz Dual Chain w/ 1x Ethernet Port and Built-in Antenna (US Version)


Product Highlights
  • The LDF 5 (Lite Dish Feed) also known as RBLDF-5nD is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas
  • The dish will act as a reflector, amplifying the signal. This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links
  • The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple
  • Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use
  • Dimensions: 84x84x115mm, PoE in: Passive PoE, Wireless 5 GHz number of chains: 2, Wireless 5 GHz standards: 802.11a/n, Antenna gain dBi for 5 GHz: 9, 10/100 Ethernet ports: 1

    • Model#: LDF 5 US

    Sku: IT2488



    MSRP: $42.99

    In Stock

    Your Price: $42.99






    MODEL: LDF 5 US (RBLDF-5n-US)

    The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

    This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

    Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.



    • CPU:  AR9344
    • CPU core count:  1
    • CPU nominal frequency:  600 MHz
    • Dimensions:   84x84x115mm
    • License level:   3
    • Operating System:   RouterOS
    • Size of RAM:    64 MB
    • Storage size:   16 MB
    • Storage type:   FLASH
    • Tested ambient temperature:    -40°C .. +70°C



    • Max Power consumption:   6W
    • PoE in:   Passive PoE
    • PoE in input Voltage:   10-30 V
    • Number of DC inputs:    1 (PoE-IN)



    • Wireless 5 GHz number of chains:   2
    • Wireless 5 GHz standards:         802.11a/n
    • Antenna gain dBi for 5 GHz:       9
    • Wireless 5 GHz chip model:        AR9344
    • 10/100 Ethernet ports:      1
