RB1100AHx4

Mikrotik

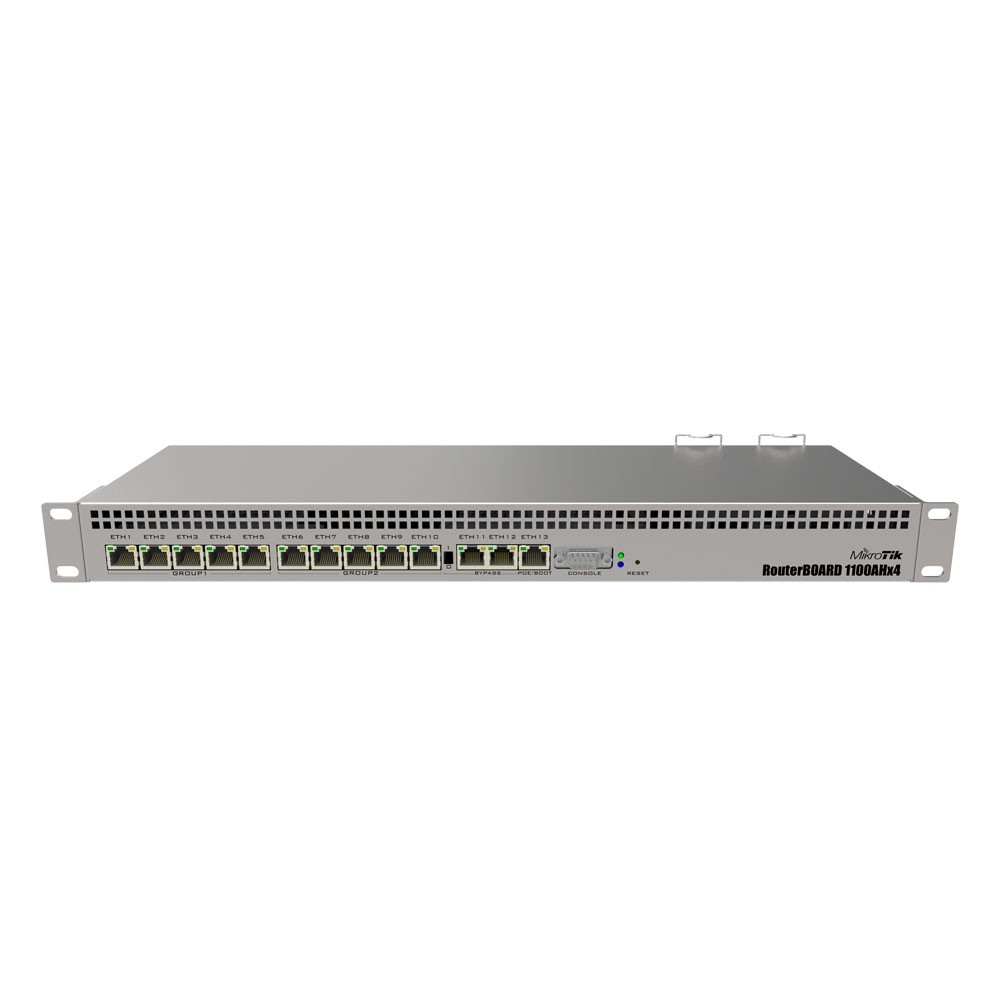

Mikrotik RB1100AHx4 Router with 13 Gigabit Ethernet Ports 1 GB RAM and 1U Rackmount Case



Product Highlights
  • RB1100AHx4 is a 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit
  • The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128)
  • Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support)
  • CPU: AL21400; CPU core count: 4; CPU nominal frequency: 1.4 GHz; Dimensions: 444 x 148 x 47 mm; License level: 6; Operating System: RouterOS
  • Size of RAM: 1 GB; Storage size: 128 MB; PoE in: 802.3af/at; PoE in input Voltage: 20-57 V; Number of AC inputs: 2; Memory card type: microSD
  • Model#: RB1100AHx4

    Sku: IT2494



    MSRP: $319.99

    In Stock

    Your Price: $319.99






    Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

    Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

    • Architecture    ARM 32bit
    • CPU    AL21400
    • CPU core count    4
    • CPU nominal frequency    1.4 GHz
    • Dimensions    444 x 148 x 47 mm
    • License level    6
    • Operating System    RouterOS
    • Size of RAM    1 GB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    802.3af/at
    • PoE in input Voltage    20-57 V
    • Number of AC inputs    2
    • AC input range    100-240
    • Number of DC inputs    2 (2-pin terminal, PoE-IN)
    • 2-pin terminal input Voltage    -48, 12-57 V
    • Max power consumption    20 W
    • 10/100/1000 Ethernet ports    13
    • Memory card type    microSD
    • Memory Cards    1
    • Serial port    RS232
    • Current Monitor    Yes
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Mode button    Yes
    • Certification    CE/RED, EAC, ROHS
