DISC Lite5 US

Mikrotik


MikroTik RBDisc-5nD-US 5GHz DISC Lite5 21dBi 802.11n 2x2 - US VERSION



Product Highlights
  • 600 MHz CPU, 64 MB RAM
  • (1)10/100 Port
  • 5 GHz 802.11a/n 2x2
  • RouterOS L3, PoE, PSU
  • Model#: DISC Lite5 US

    Sku: IT2500



    MSRP: $52.99

    In Stock

    Your Price: $52.99






    MODEL: DISC Lite5 US

    Mikrotik 21dBi with Integrated Antenna OSL3 CPE Point to Point PoE

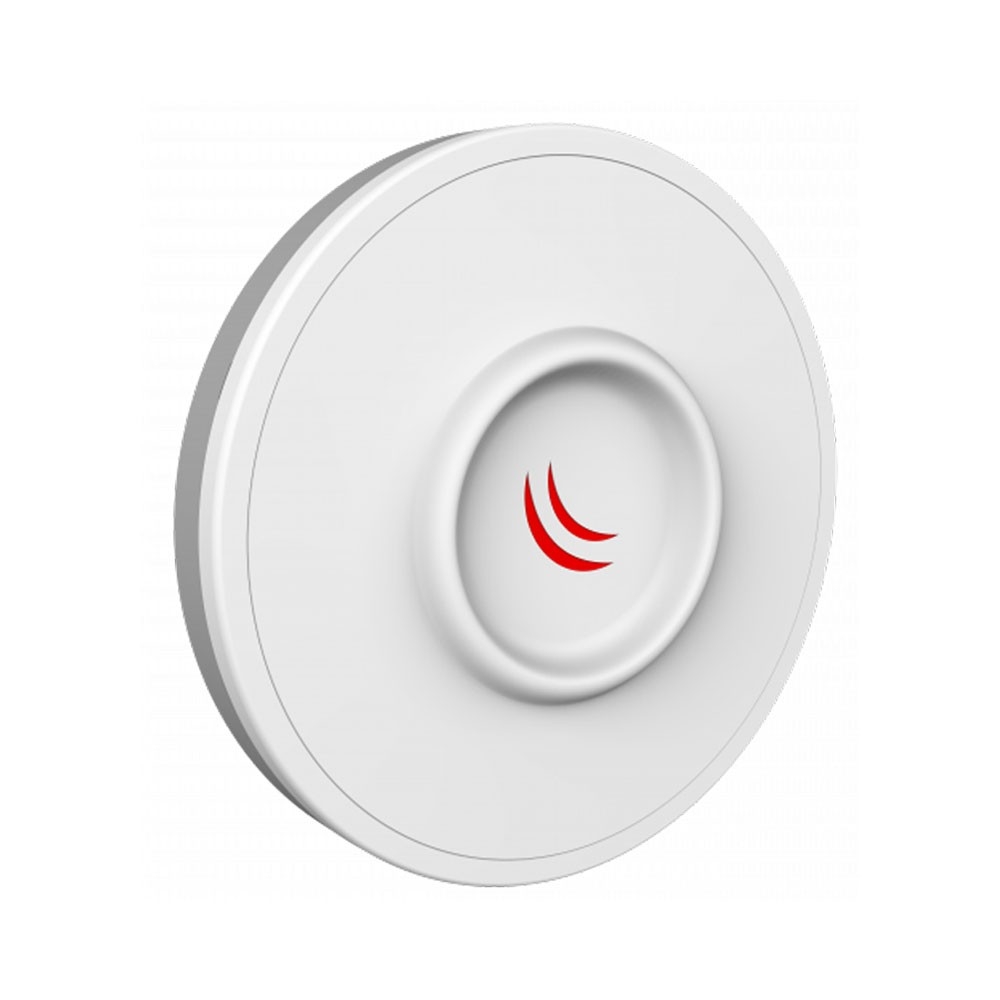

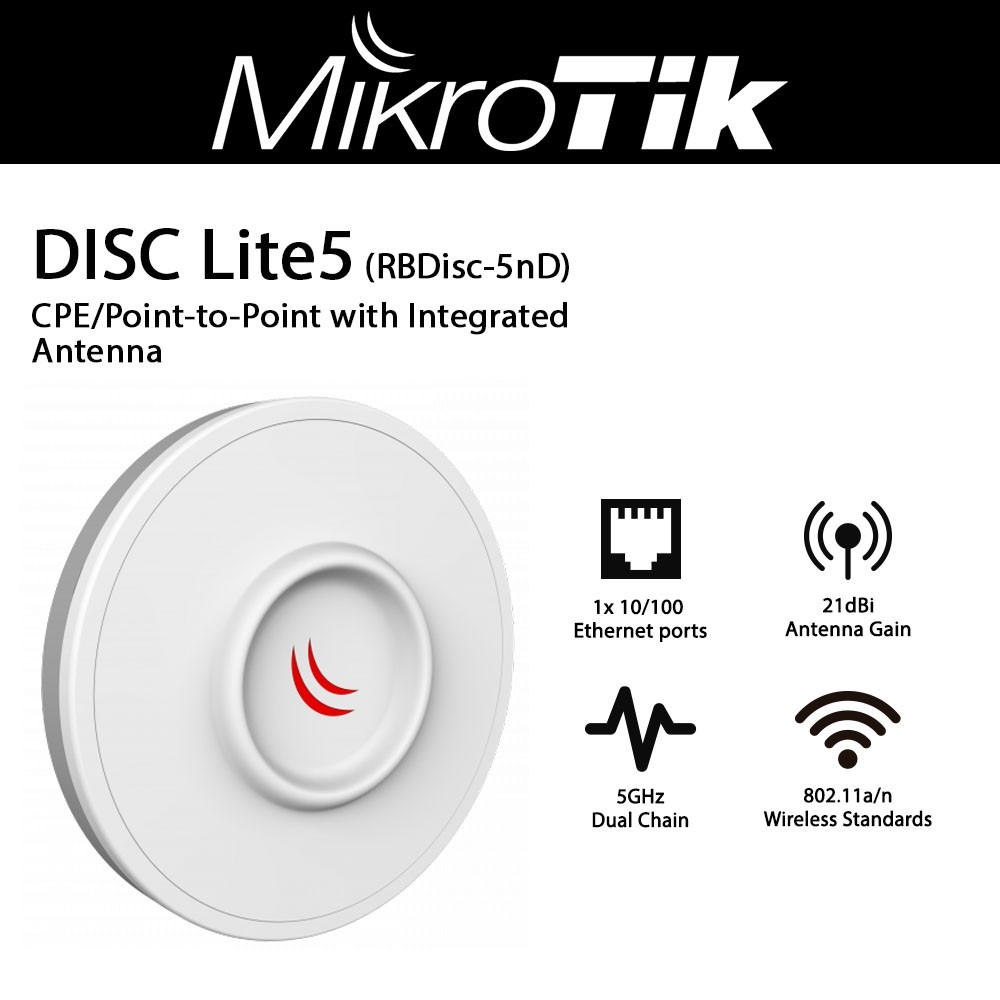

    DISC Lite5 also known as RBDisc-5nD (US version) is an integrated 21dBi Dual Chain 802.11n CPE with a 600MHz CPU, 64MB RAM, 1x 10/100Mbps Ethernet port and RouterOS L3 installed. The DISC uses a backfire type antenna which allows to reach 21dBi gain in such a low cost and compact package.

    The device comes complete with a power supply, PoE injector and mounting kit.

    The RouterOS Level3 allows to use the DISC Lite5 as CPE or Point-to-Point 5GHz links.

    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions     265mm, height: 80mm
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    10-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    6 W
    • Wireless 5 GHz Max data rate    300 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n
    • Antenna gain dBi for 5 GHz    21
    • Wireless 5 GHz chip model    AR9344
    • Wireless 5 GHz generation    Wi-Fi 4
    • 10/100 Ethernet ports     1
    • Certification    CE/RED, FCC, IC, EAC, ROHS

    Datasheet

    PDF File MikroTik RBDisc-5nD-US 5GHz DISC Lite5 21dBi 802.11n 2x2 - US VERSION
