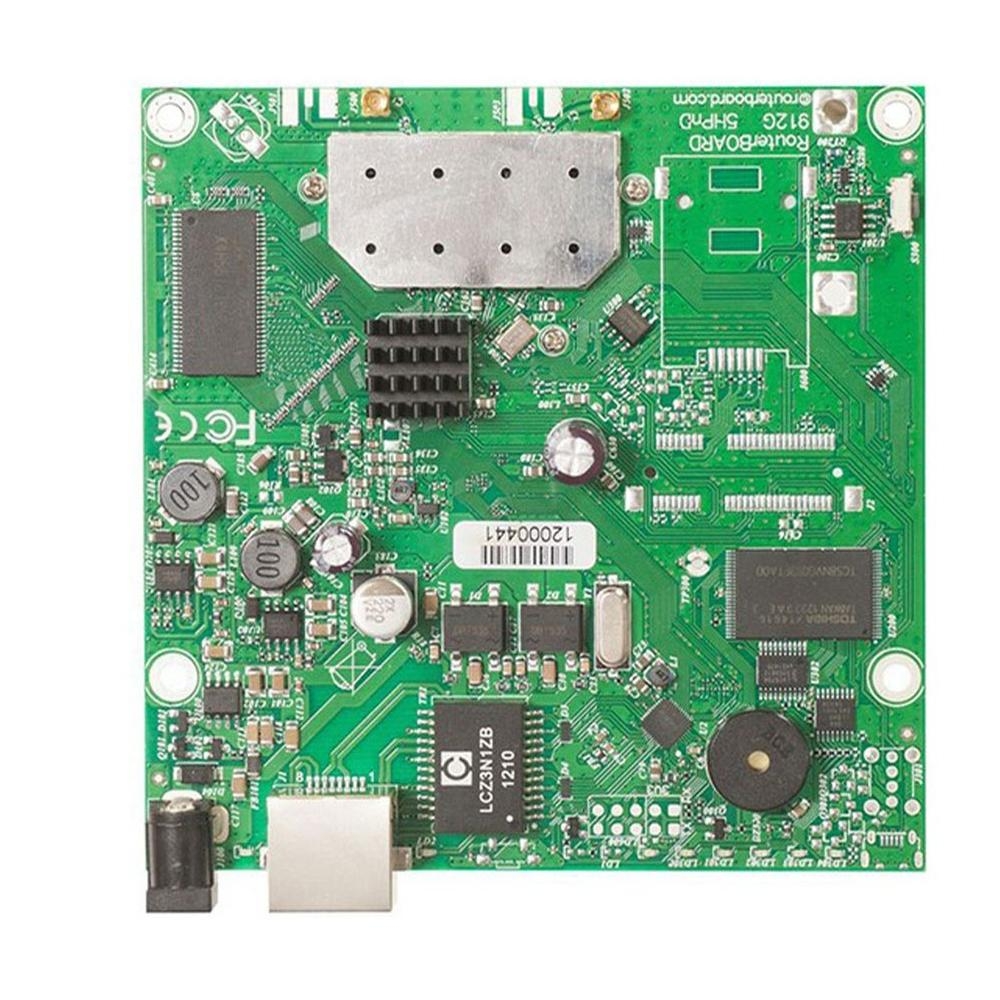

MODEL: RB911G-5HPnD US Version
The RB911G-5HnD is a small wireless router with an integrated high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.
- 1 Ethernet, Gigabit, High power, Dual chain
- CPU Atheros AR9342 600MHz network processor
- Memory 32MB DDR onboard memory
- Data storage onboard NAND memory chip
- Ethernet One Gigabit port with Auto-MDI/X
- Wireless Built in 5GHz AR9283 802.11a/n, 2x MMCX connectors
- CPU: AR9342
- CPU core count: 1
- CPU nominal frequency: 600 MHz
- Dimensions: 105x105mm
- License level: 3
- Operating System: RouterOS
- Size of RAM: 32 MB
- Storage size: 128 MB
- Storage type: NAND
- Max Power consumption: 11W
- PoE in: Passive PoE
- PoE in input Voltage: 8-30 V
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 8-30 V
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n
- Wireless 5 GHz chip model: AR9342
- 10/100/1000 Ethernet ports: 1
Datasheet
