SXTsq 5 ac

Mikrotik

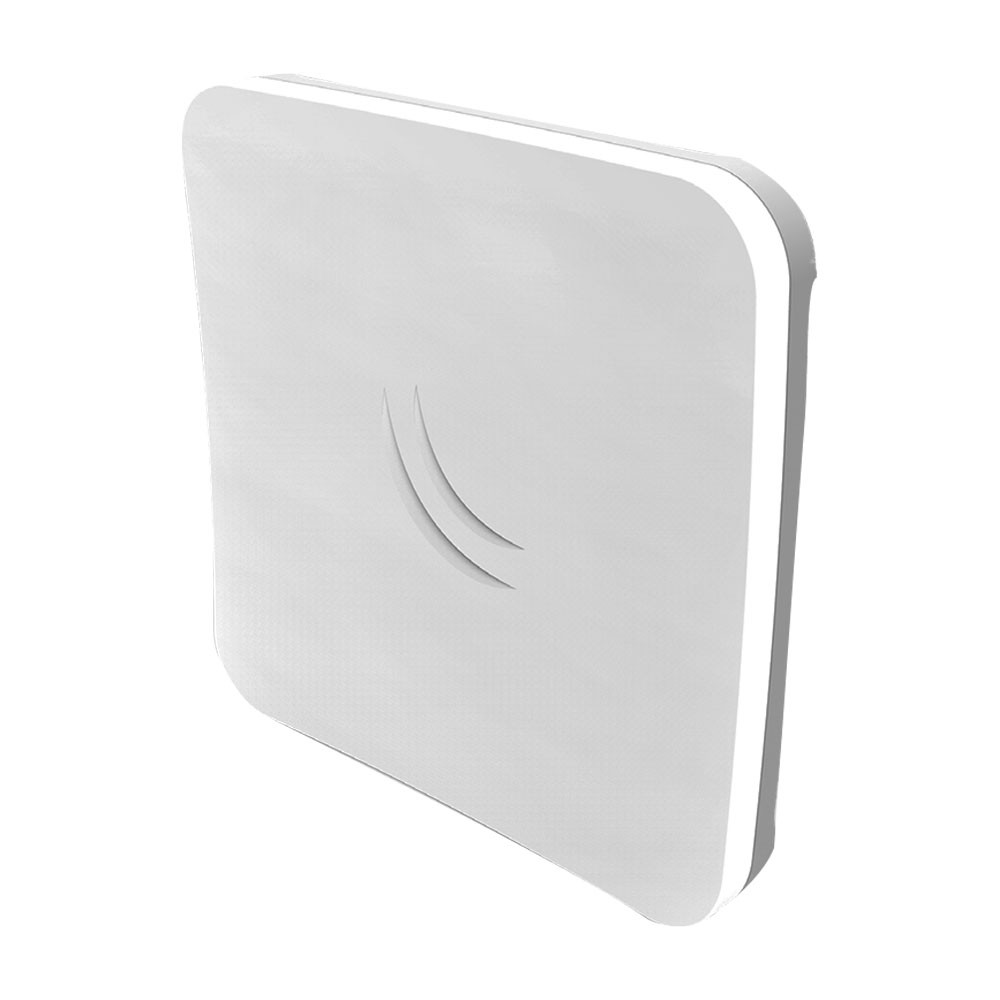

Mikrotik SXTsq 5 ac Outdoor Wireless Device CPE/Backbone 5Ghz 802.11ac with 16dBi Integrated Antenna


Product Highlights
  • The SXTsq 5 ac also known as RBSXTsqG-5acD is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit
  • The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides
  • The SXTsq 5 ac retains a 16 dBi antenna. The antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner
  • Dimensions: 129 x 129 x 34 mm, Size of RAM: 256 MB, Storage size: 16 MB, PoE in: Passive PoE, PoE in input Voltage: 10-28 V
  • Wireless 5 GHz number of chains: 2, Wireless 5 GHz standards: 802.11a/n/ac, Antenna gain dBi for 5 GHz: 16, 10/100/1000 Ethernet ports: 1

    • Model#: SXTsq 5 ac

    Sku: IT2515



    MSRP: $58.99


    Out of stock

    The SXTsq 5 ac also known as RBSXTsqG-5acD (International Version) is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

    The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

    • Architecture    ARM 32bit
    • CPU    IPQ-4018
    • CPU core count    4
    • CPU nominal frequency    716 MHz
    • Dimensions    129 x 129 x 34 mm
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    256 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    10-28 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    7 W
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    16
    • Wireless 5 GHz chip model    IPQ-4018
    • Wireless 5 GHz generation    Wi-Fi 5
    • 10/100/1000 Ethernet ports    1
    • Certification    CE/RED, FCC, IC, EAC, ROHS
