RB911G5HPacDQRT-B2US

Mikrotik


Mikrotik QRT 5 ac US 2-UNITS 5GHz 802.11ac 24dBi Outdoor Flat Panel Antenna PoE OSL4 Gigabit port


Product Highlights

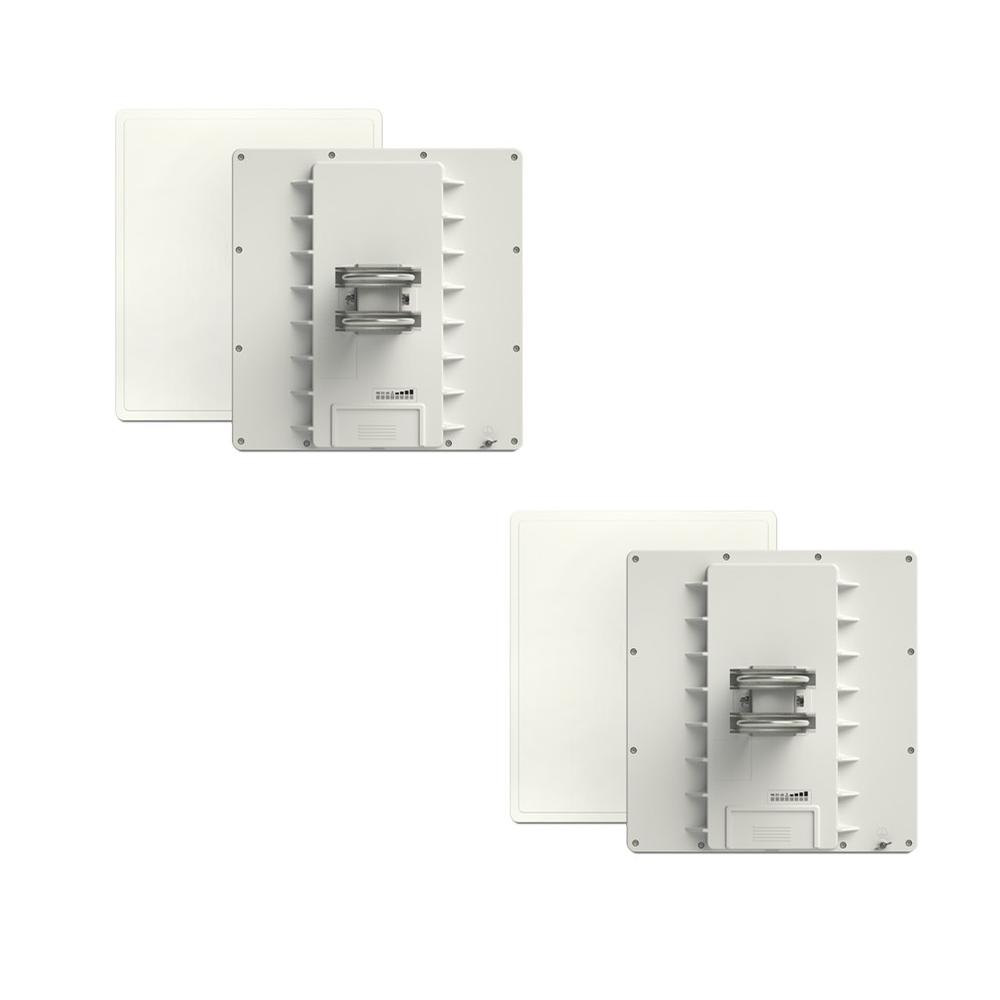

  • The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD
  • The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n
  • It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless
  • Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds
  • Operating System: RouterOS

    • Model#: RB911G5HPacDQRT-B2US

    Sku: IT2517



    MSRP: $439.99


    Out of stock

    The QRT 5 ac is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter which now supports 802.11ac and is also backwards compatible with 802.11a/n.

    Inside is the high power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11ac high speed wireless.

    Easy to use and quick to deploy, QRT is ideal for longer point to point links at 802.11ac speeds

    QRT 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    Specifications

    • Product code    RB911G-5HPacD-QRT
    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    309x320x50mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    10.5 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    24
    • Wireless 5 GHz chip model    QCA9882

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
