SXTsq 5 ac-US x2

Mikrotik

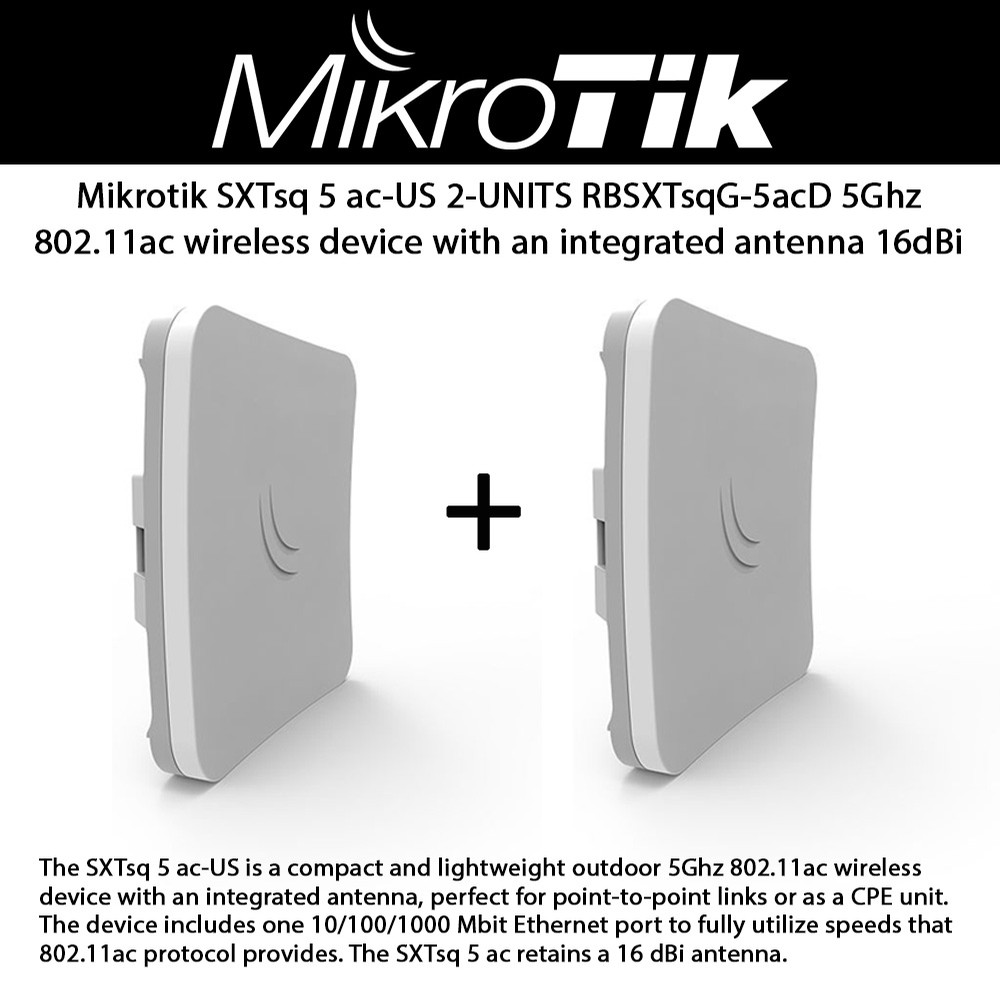

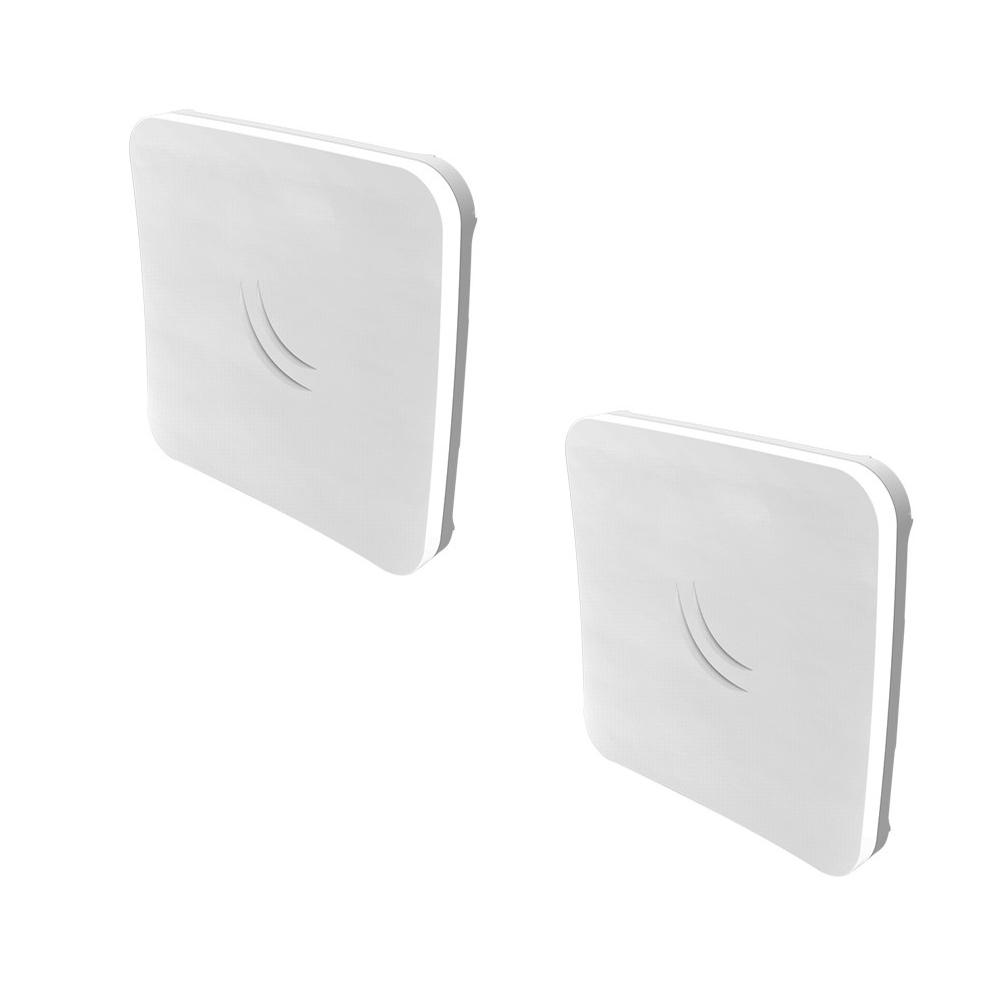

Mikrotik 2-units SXTsq 5 ac Outdoor CPE/Backbone US Version RBSXTsqG-5acD 5Ghz 11ac 16dBi integrated antenna


Product Highlights
  • The SXTsq 5 ac -US is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit
  • The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides
  • The SXTsq 5 ac -US retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced
  • SXTsq 5 ac -US supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)
  • The weatherproof enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings

    • Model#: SXTsq 5 ac-US x2

    Sku: IT2519



    MSRP: $107.99


    Out of stock

    The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

    The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
    The weatherproof enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. There is also an easily accessible grounding connection to protect it against lightning.


    SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    Architecture:    ARM 32bit
    CPU:    IPQ-4018
    CPU core count:   4
    CPU nominal frequency:    716 MHz
    Dimensions:      129 x 129 x 34 mm
    License level:    3
    Operating System:    RouterOS
    Size of RAM:    256 MB
    Storage size:   16 MB
    Storage type:   FLASH

    • Max Power consumption:   7W
    • PoE in:   Passive PoE
    • PoE in input Voltage:    10-30 V
    • Number of DC inputs:      1 (PoE-IN)
    • Wireless 5 GHz number of chains:    2
    • Wireless 5 GHz standards:       802.11a/n/ac
    • Antenna gain dBi for 5 GHz:     16
    • Wireless 5 GHz chip model:      IPQ-4018
    • 10/100/1000 Ethernet ports:     1
