LHG 5 ac-US x2

Mikrotik

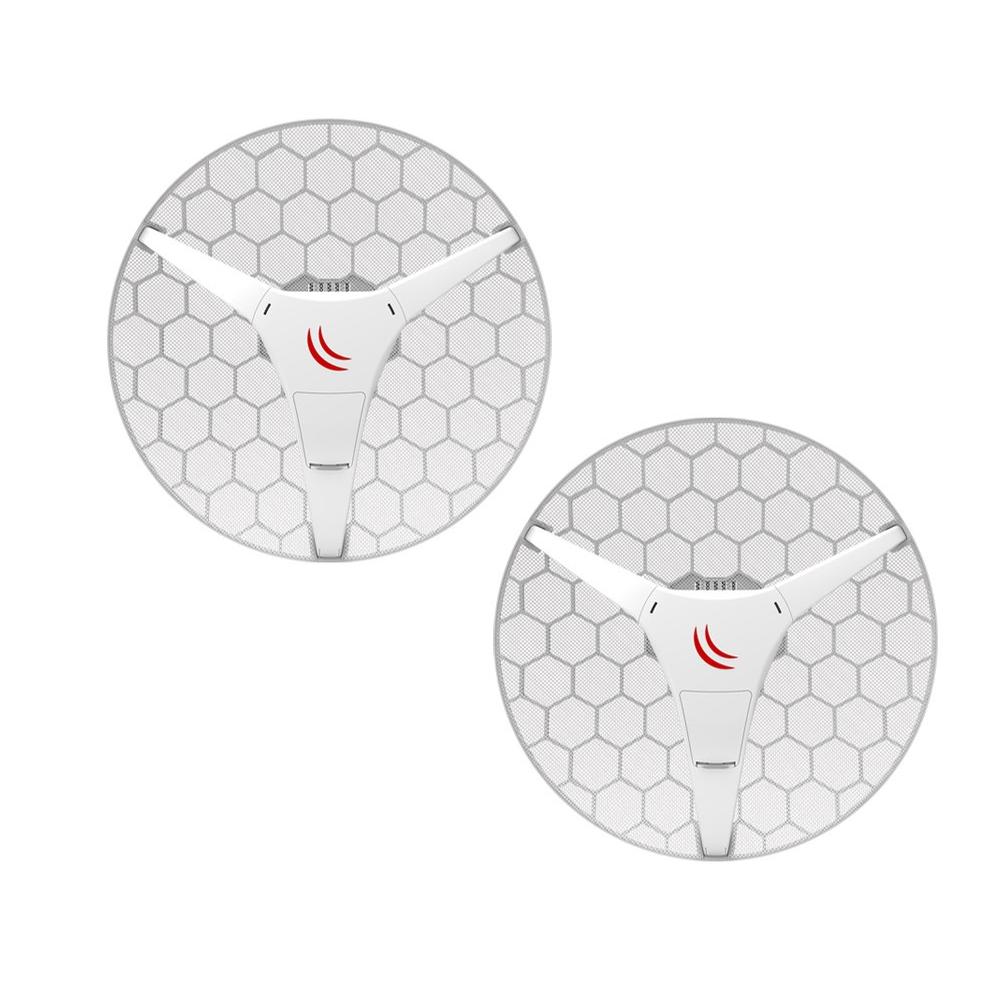

Mikrotik LHG 5 ac-US (RBLHGG-5acD) 2-UNITS Dual chain 24.5dBi 5GHz CPE/PTP Integrated Antenna


Model#: LHG 5 ac-US x2

Sku: IT2521



MSRP: $349.95


Out of stock

The LHG 5 ac is a compact and light 5GHz 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping, but is
very easy to assemble and includes a simple to use grounding attachment point.

LHG 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

  • Architecture:      ARM 32bit
  • CPU:     IPQ-4018
  • CPU core count:     4
  • CPU nominal frequency:    716 MHz
  • Dimensions:       391 x 222 mm
  • License level:    3
  • Operating System:     RouterOS
  • Size of RAM:     256 MB
  • Storage size:    16 MB
  • Storage type:    FLASH
  •
  • Max Power consumption:    8W
  • PoE in:     Passive PoE
  • PoE in input Voltage:    10-30 V
  • Number of DC inputs:     1 (PoE-IN)
  • Wireless 5 GHz number of chains:    2
  • Wireless 5 GHz standards:       802.11a/n/ac
  • Antenna gain dBi for 5 GHz:     24.5
  • Wireless 5 GHz chip model:      IPQ-4018
  • 10/100/1000 Ethernet ports:     1
