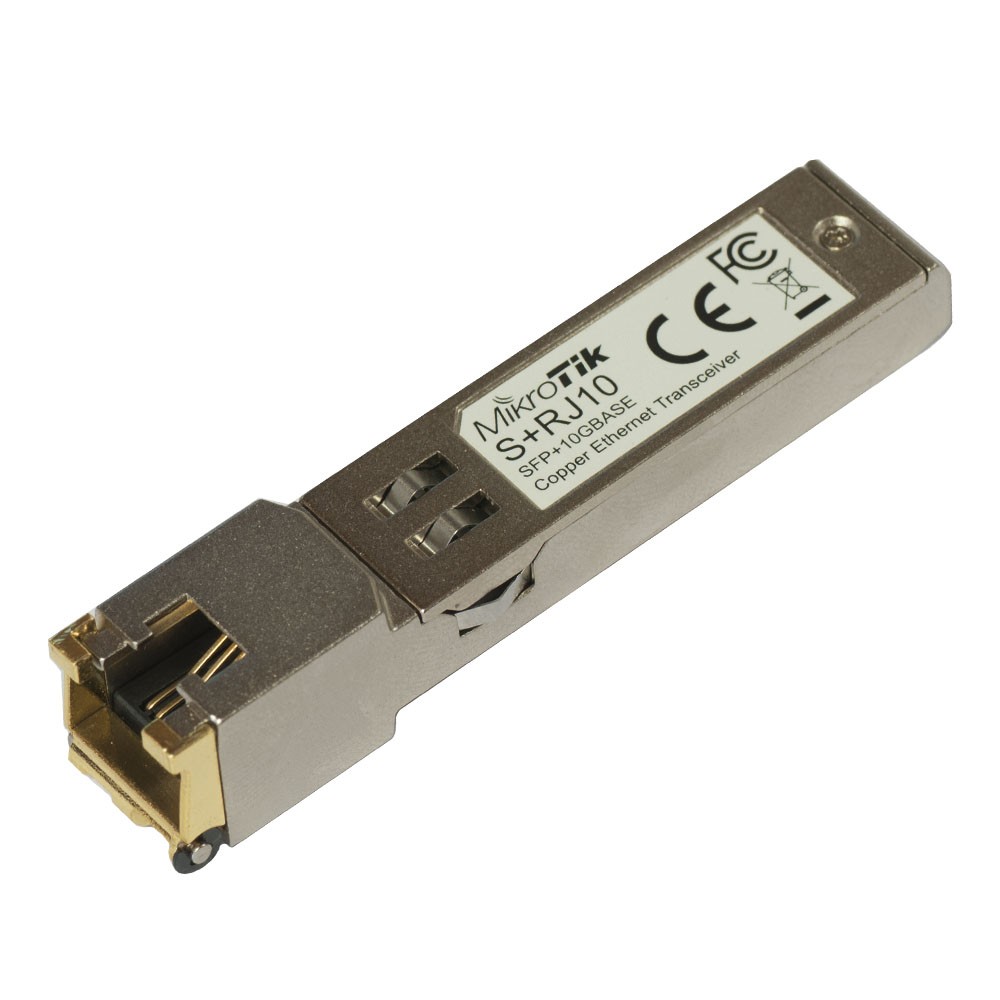

Mikrotik S+RJ10 6-speed RJ-45 Module for up to 10 Gbps

Product Highlights

This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports

Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware

S+RJ10 module is supported also on devices with passive cooling, but may require an extra cooling

Connector: RJ45; Data Rate: 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps; Distance: up to 200m

Size of RAM: 0 KB; Storage size: 256 KB; Storage type: FLASH; Tested ambient temperature: -20 celsius to 60 celsius

Model#: S+RJ10

Sku: IT2524

MSRP: $149.95

This unique module opens up a whole world of high speed connectivity possibilities, offering up to 10 Gbps speeds over regular familiar twisted-pair cables in your existing products that have SFP+ ports. Any MikroTik device with active cooling that has SFP+ ports can now be used without installing any optical fiber, just plug the S+RJ10 and your network can be upgraded to 10 Gbps, making it ready for the next generation of RJ45 hardware.

S+RJ10 module is supported also on devices with passive cooling, but may require an extra cooling.
New revision of S+RJ10 comes with several improvements:

- Jumbo frames up to 10218 Bytes are now supported;

- Link speed reporting is fixed - actual link speed in the interface menu is listed. Previously 100M/1G/2.5G/5G link speeds were not reported correctly;

- DDM monitoring (Supply Voltage, Module temperature) is now supported.

Connector RJ45
Data Rate 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps
Distance up to 200m
Size of RAM 0 KB
Storage size 256 KB
Storage type FLASH
Tested ambient temperature -20°C to 60°C
