LHG HP5

Mikrotik

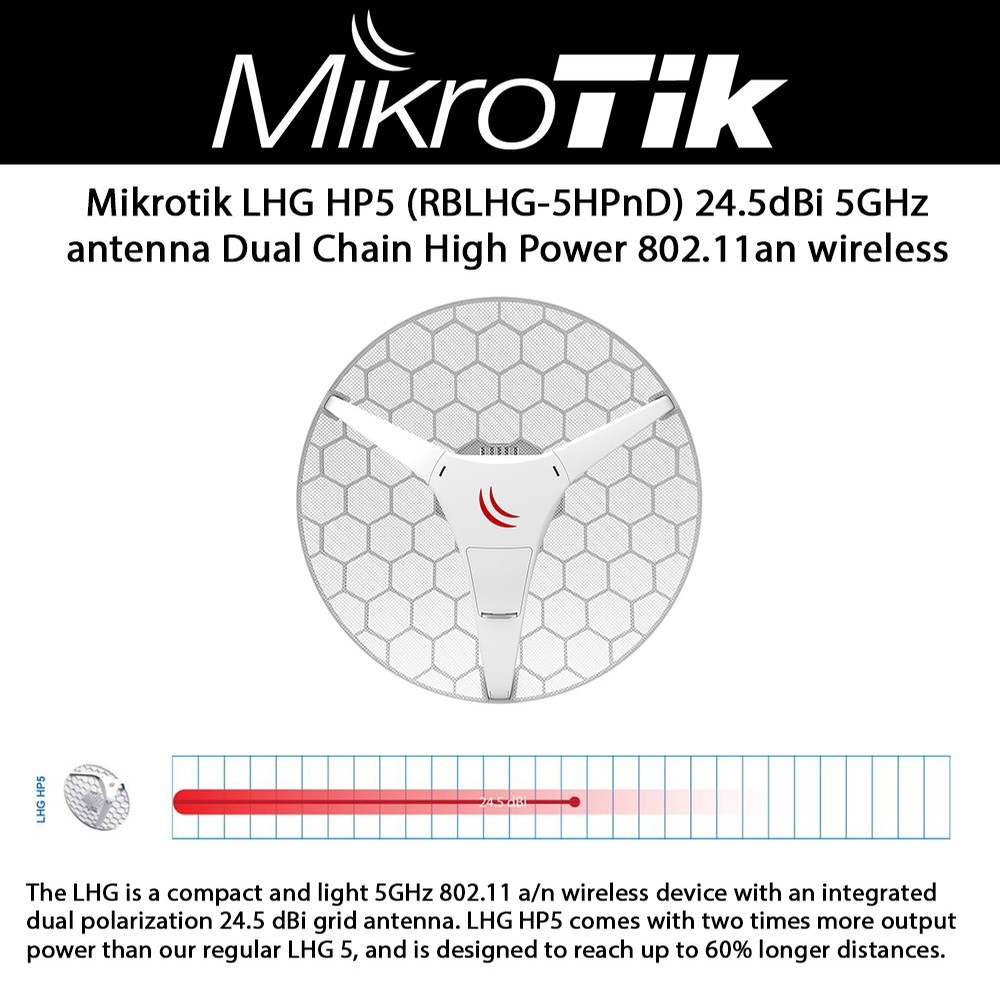

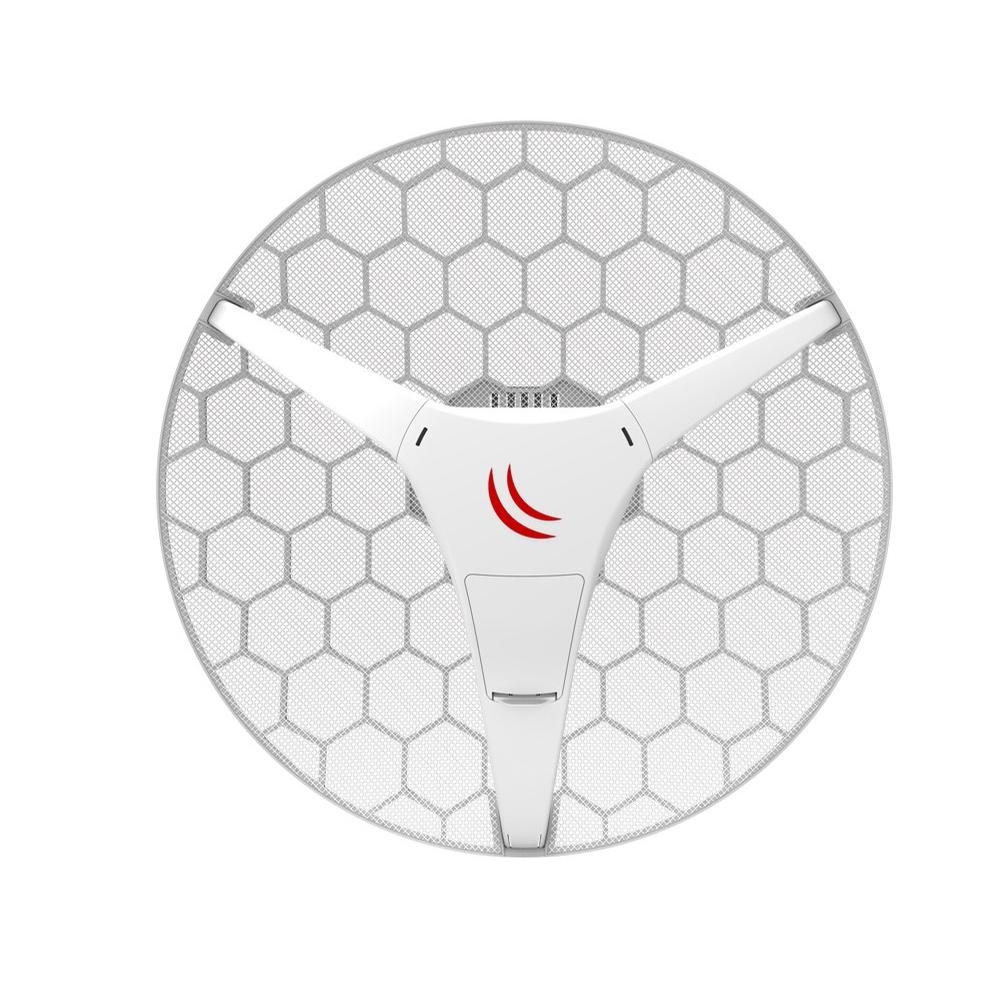

Mikrotik LHG HP5 (RBLHG-5HPnD) 24.5dBi 5GHz antenna Dual Chain High Power 802.11an wireless - INTERNATIONAL VERSION


Product Highlights
  • The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna.
  • LHG HP5 comes with two times more output power than our regular LHG 5, and is designed to reach up to 60% longer distances.
  • The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
  • CPU nominal frequency: 600 MHz; Size of RAM: 64 MB
  • Operating System: RouterOS

    • Model#: LHG HP5

    Sku: IT2530



    MSRP: $119.99


    Out of stock

    Your Price: $119.99


    MODEL:  LHG HP5 (RBLHG-5HPnD)

    International Version

    We are adding two new models to our LHG product family, the LHG HP5 (high power) and LHG XL HP5 (extra
    large, high power). LHG HP5 comes with two times more output power than our regular LHG 5 - up to 630 mW,
    and is designed to reach up to 60% longer distances.

    Unit comes with a PoE injector, power supply and pole mount, ready to be deployed.

    Specifications

    • Product code    RBLHG-5HPnD
    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    Ø 391 x 222 mm;
    • License level    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C


    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    10-28 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    7 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    300 Mbit/s
    • Wireless 5 GHz standards    802.11a/n
    • Antenna gain dBi for 5 GHz    24.5
    • Wireless 5 GHz chip model    AR9344

    Ethernet

    • 10/100 Ethernet ports    1

    Datasheet

    PDF File Mikrotik LHG HP5 (RBLHG-5HPnD) 24.5dBi 5GHz antenna Dual Chain High Power 802.11an wireless - INTERNATIONAL VERSION
