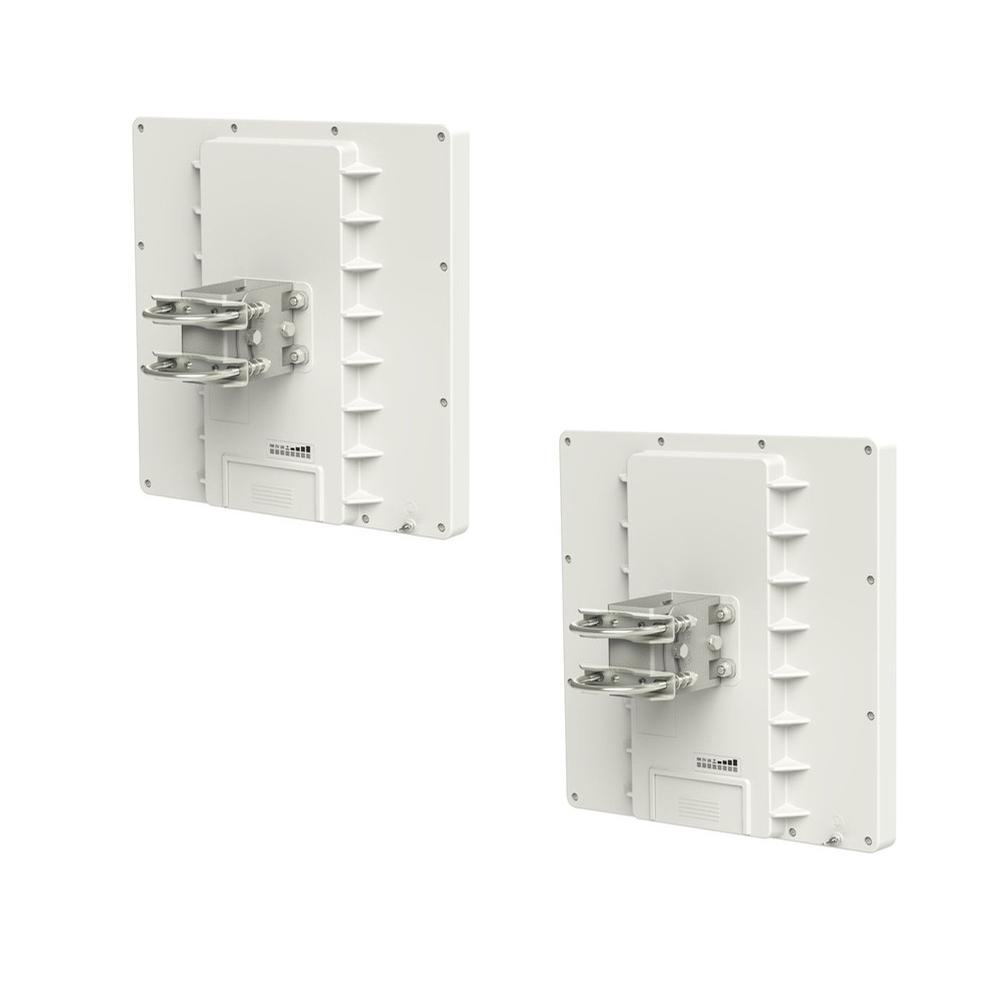

The QRT 5 is a rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 24dBi antenna and a high power 5GHz wireless transmitter.
Inside is the high power RB911 dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter. It has a Gigabit Ethernet port, to fully utilise the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, QRT is ideal for point to point links.
- CPU: AR9342
- CPU core count: 1
- CPU nominal frequency: 600 MHz
- Dimensions: 309x320x50mm
- License level: 4
- Operating System: RouterOS
- Size of RAM: 64 MB
- Storage size: 128 MB
- Storage type: NAND
- Max Power consumption: 11W at 24V
- PoE in: Passive PoE
- PoE in input Voltage: 8-30 V
- Number of DC inputs: 1 (PoE-IN)
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n
- Antenna gain dBi for 5 GHz: 24
- Wireless 5 GHz chip model: AR9342
- 10/100/1000 Ethernet ports: 1
