RB921UAGS-5SHPacT-NM-US

Mikrotik

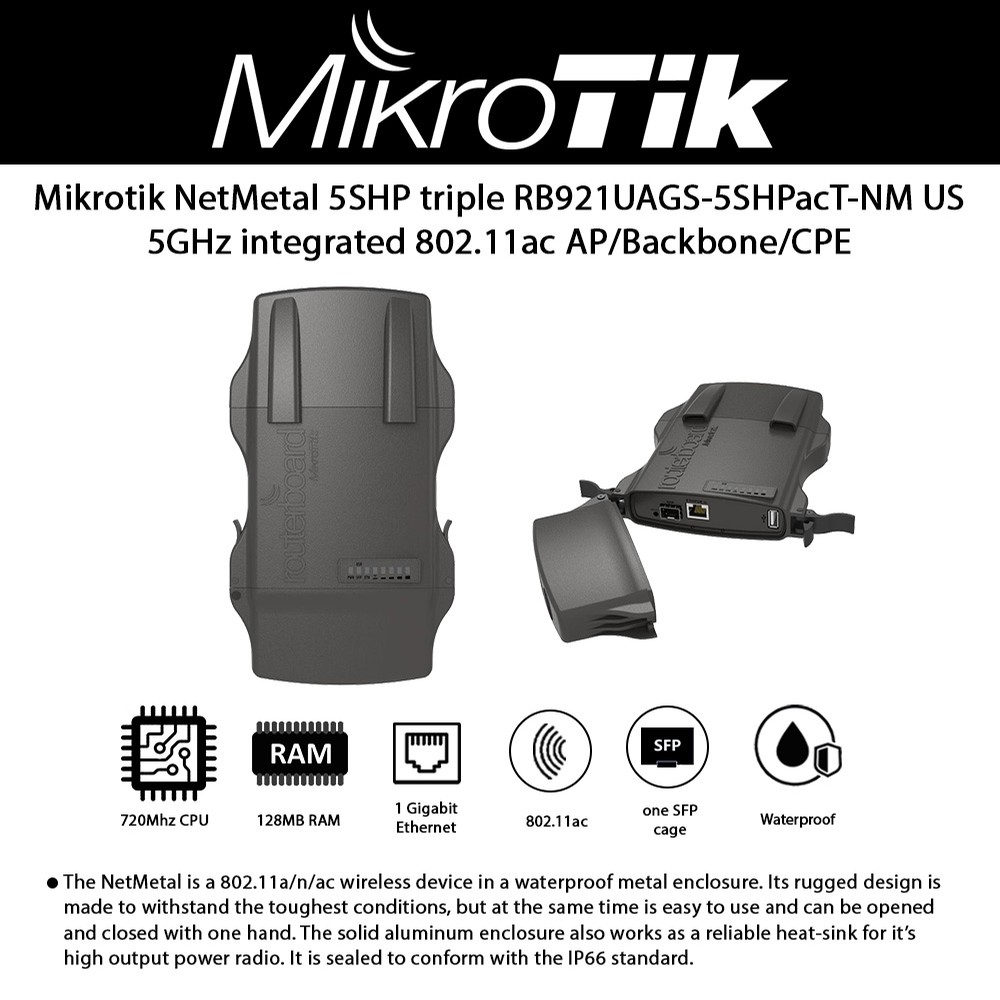

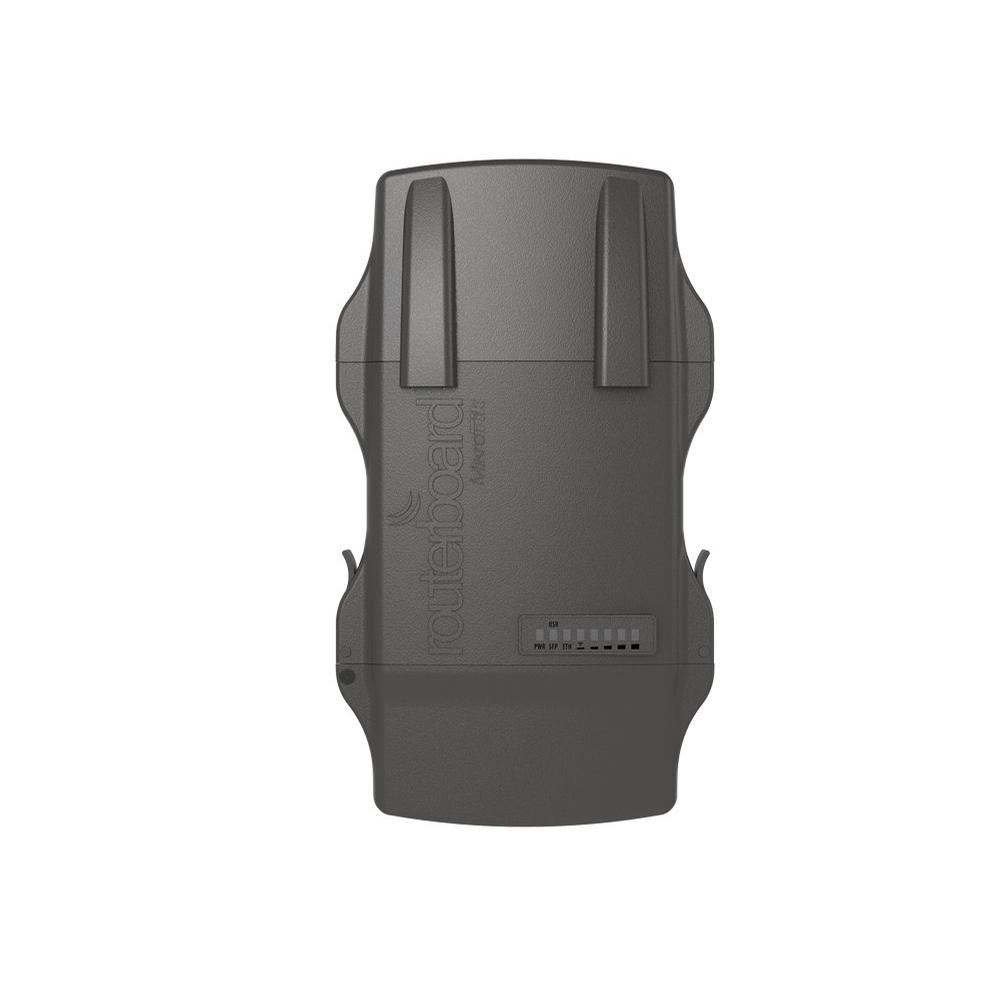

Mikrotik NetMetal 5SHP triple RB921UAGS-5SHPacT-NM 5GHz integrated 802.11ac AP/Backbone/CPE US


Product Highlights
  • The NetMetal is a 802.11a/n/ac wireless device in a waterproof metal enclosure
  • Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand
  • The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio. It is sealed to conform with the IP66 standard
  • The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license
  • RB921UAGS-5SHPacT-NM version is equipped with Super High power 3x3 Tripple Chain 802.11ac wireless and three RP-SMA connectors for external antennas

    • Model#: RB921UAGS-5SHPacT-NM-US

    Sku: IT2546



    MSRP: $159.99


    Out of stock

    • Mikrotik RB921UAGS-5SHPacT-NM NetMetal 5 (US Version) is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.

    • The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

    • RB921UAGS-5SHPacT-NM version is equipped with Super High power 2000mW 3x3 Tripple Chain 802.11ac wireless and three RP-SMA connectors for external antennas.

    • RB921UAGS-5SHPacD-NM-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    Specifications

    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    143x247x48mm (PCB)
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    25 W
    • Max power consumption without attachments    21W

    Wireless

    • Wireless 5 GHz number of chains    3
    • Wireless 5 GHz Max data rate    1300 Mbit/s
    • Wireless 5 GHz standards    802.11a/n/ac
    • Wireless 5 GHz chip model    QCA9880

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Fiber

    • SFP DDMI    yes
    • SFP ports    1

    Peripherals

    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
