Mikrotik RB921GS-5HPacD-15S-US mANTBox 15s 2-UNITS Built-in 5GHz 802.11a/n/ac 15dBi MIMO Sector Antenna OSL4
Product Highlights
Model#: RB921GS-5HPacD-15SX2-US
Sku: IT2548
Out of stock
Your Price: N/A

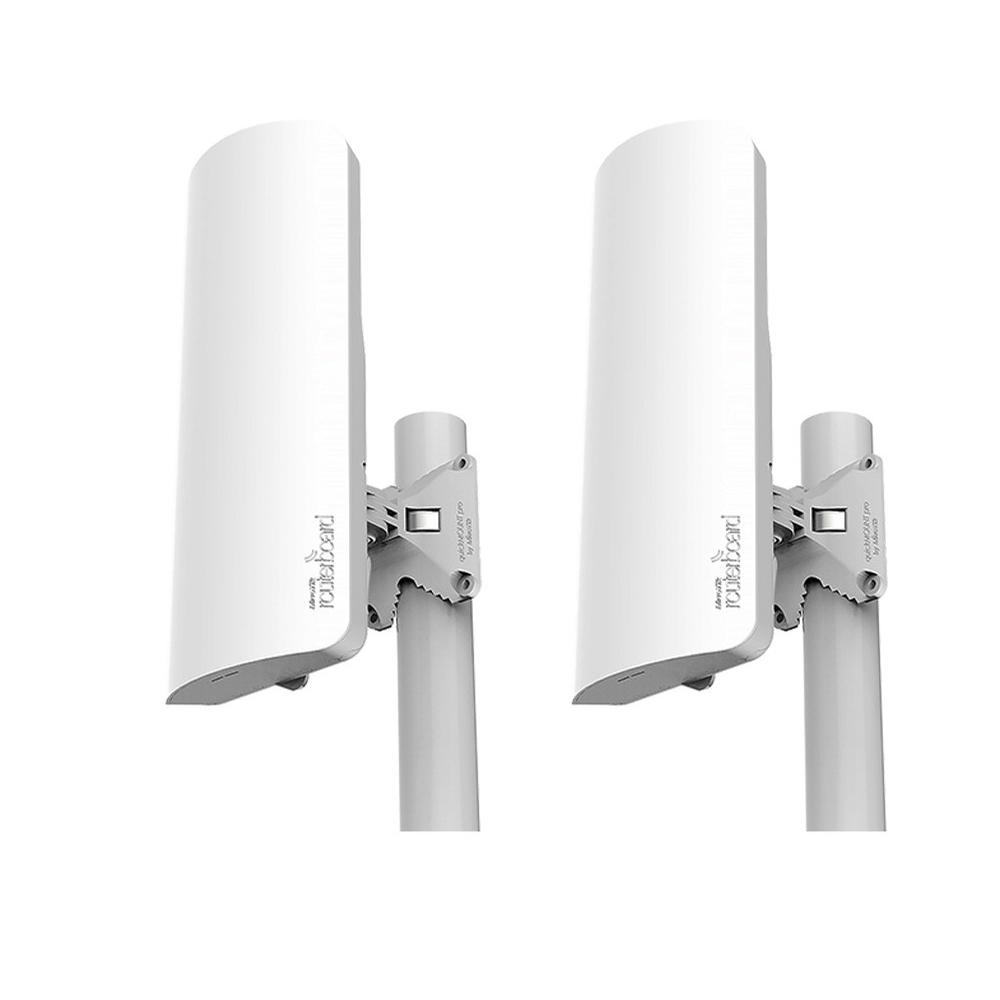

mANTBox 15s (RB921GS-5HPacD-15S)
The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
RB921GS-5HPacD-15S-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
- CPU QCA9557
- CPU core count 1
- CPU nominal frequency 720 MHz
- Dimensions 140 x 348 x 82 mm
- License level 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 128 MB
- Storage type NAND
- Tested ambient temperature -40°C to 70°C
Powering
- PoE in Passive PoE
- PoE in input Voltage 12-28 V
- Number of DC inputs 2 (PoE-IN, DC jack)
- DC jack input Voltage 9-30 V
- Max power consumption 13 W
Wireless
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz standards 802.11a/n/ac
- AC speed AC1600
- Antenna gain dBi for 5 GHz 15
- Wireless 5 GHz chip model QCA9892
Ethernet
- 10/100/1000 Ethernet ports 1
Fiber
- SFP ports 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
