CRS112-8P-4S-IN

Mikrotik


Mikrotik CRS112-8P-4S-IN 8 Gigabit Port PoE Smart Switch with 4 SFP Cages


Product Highlights
  • Mikrotik CRS CRS112-8P-4S-IN 8 Gigabit Port PoE Smart Switch 4 SFP Cages with 802.3af/at PoE/PoE+ and Passive PoE Autosensing
  • Four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps
  • There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately)
  • CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices)
  • Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V

    • Model#: CRS112-8P-4S-IN

    Sku: IT2553



    MSRP: $199.99


    Out of stock

    Mikrotik CRS112-8P-4S-IN 8 Gigabit Port PoE Smart Switch 4 SFP Cages with 802.3af/at PoE/PoE+ and Passive PoE Autosensing

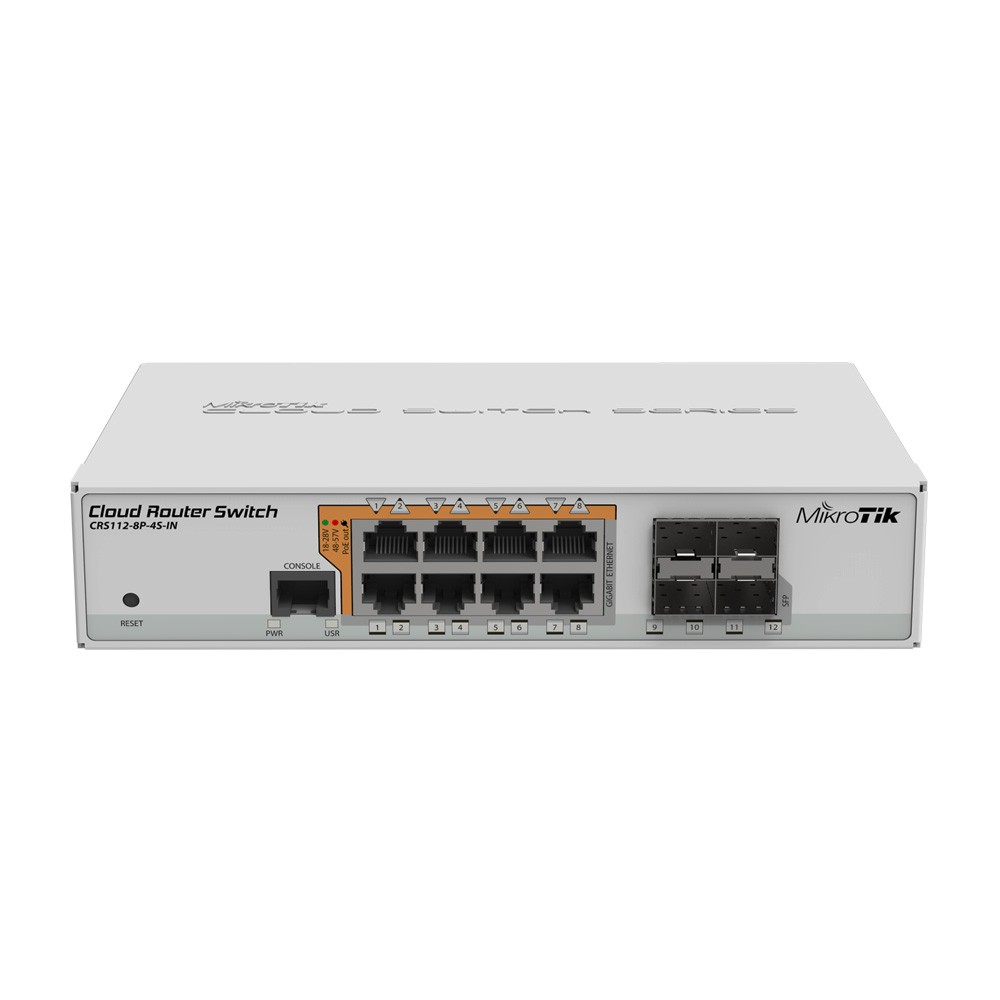

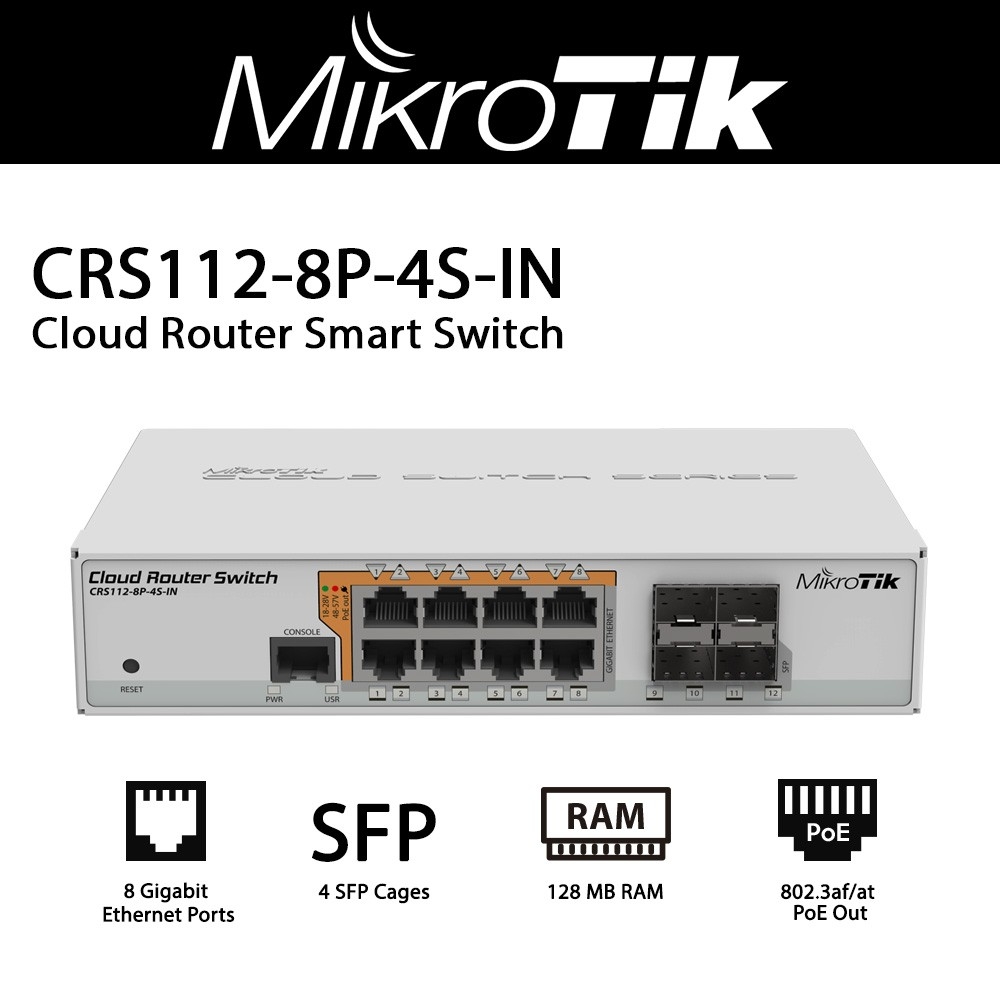

    CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

    CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins.

    • Architecture    MIPSBE
    • CPU    QCA8511
    • CPU core count    1
    • CPU nominal frequency    400 MHz
    • License level    5
    • Size of RAM    128 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -20°C to 60°C
    • PoE out    802.3af/at
    • PoE-out ports    Ether1-Ether8
    • Number of DC inputs    2 (DC jack)
    • DC jack input Voltage    18-28 V / 48-57 V
    • Max out per port output (input > 30 V)    450 mA
    • Max out per port output (input < 30 V)    1 A
    • Max total out (A)    2.8A (24V) & 1.4A (48V-57V)
    • Max power consumption    160 W
    • Max power consumption without attachments    10 W
    • 10/100/1000 Ethernet ports    8
    • SFP ports     4
    • Serial port     RJ45
    • PCB temperature monitor    Yes
