RBDiscG-5acD

Mikrotik


Mikrotik outdoor wireless CPE DISC Lite5 ac 21 dBi dual chain antenna with 5GHz 802.11a/n/ac INTL


Product Highlights
  • The DISC Lite5 ac (RBDiscG-5acD) is a low cost high gain 5 GHz CPE
  • DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license
  • It comes complete with a power supply, Gigabit PoE injector and a mounting ring
  • The DISC Lite5 ac is also compatible with our SXT mounting systems, including the quickMOUNT pro series
  • DISC Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

    • Model#: RBDiscG-5acD

    Sku: IT2556



    MSRP: $69.99


    Out of stock

    DISC Lite5 ac (RBDiscG-5acD) - International Version

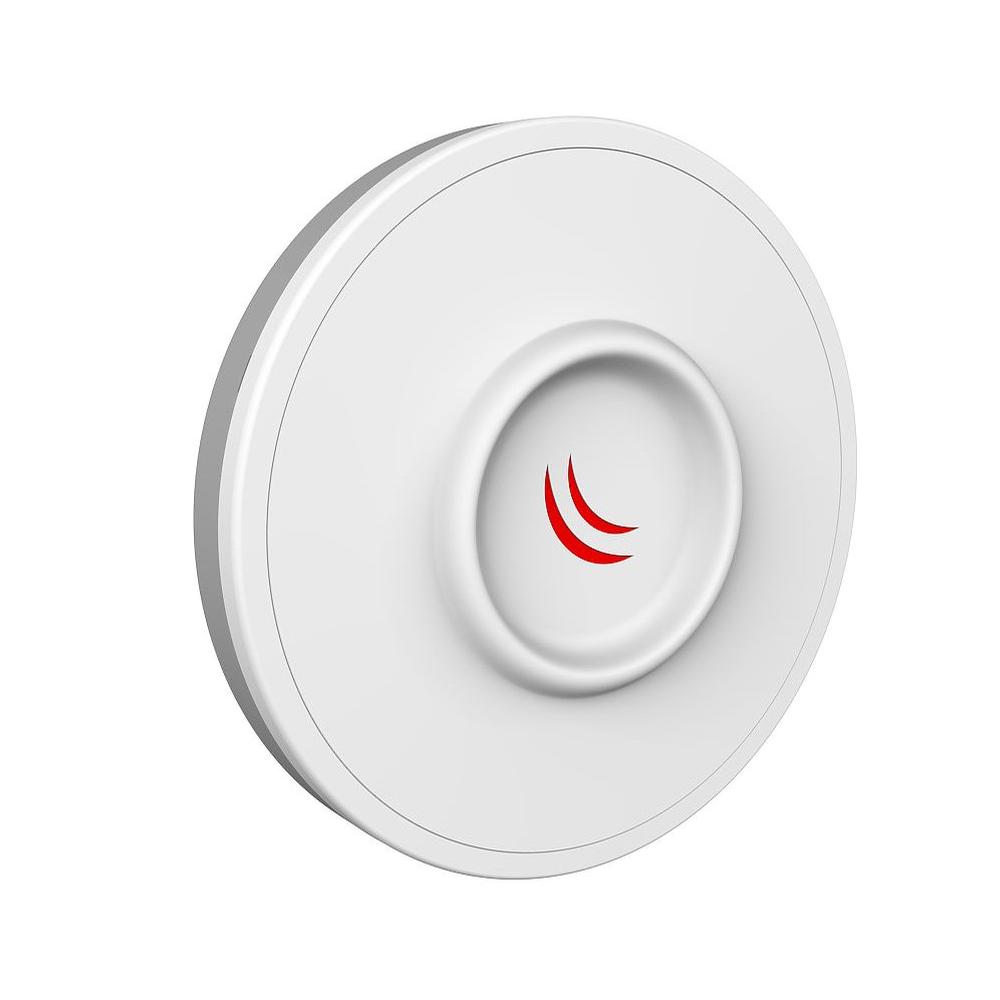

    The DISC is a low cost high gain 5 GHz CPE. We have improved antenna design, added Gigabit Ethernet port and 802.11a/n/ac support to achieve even more speed on longer distances.

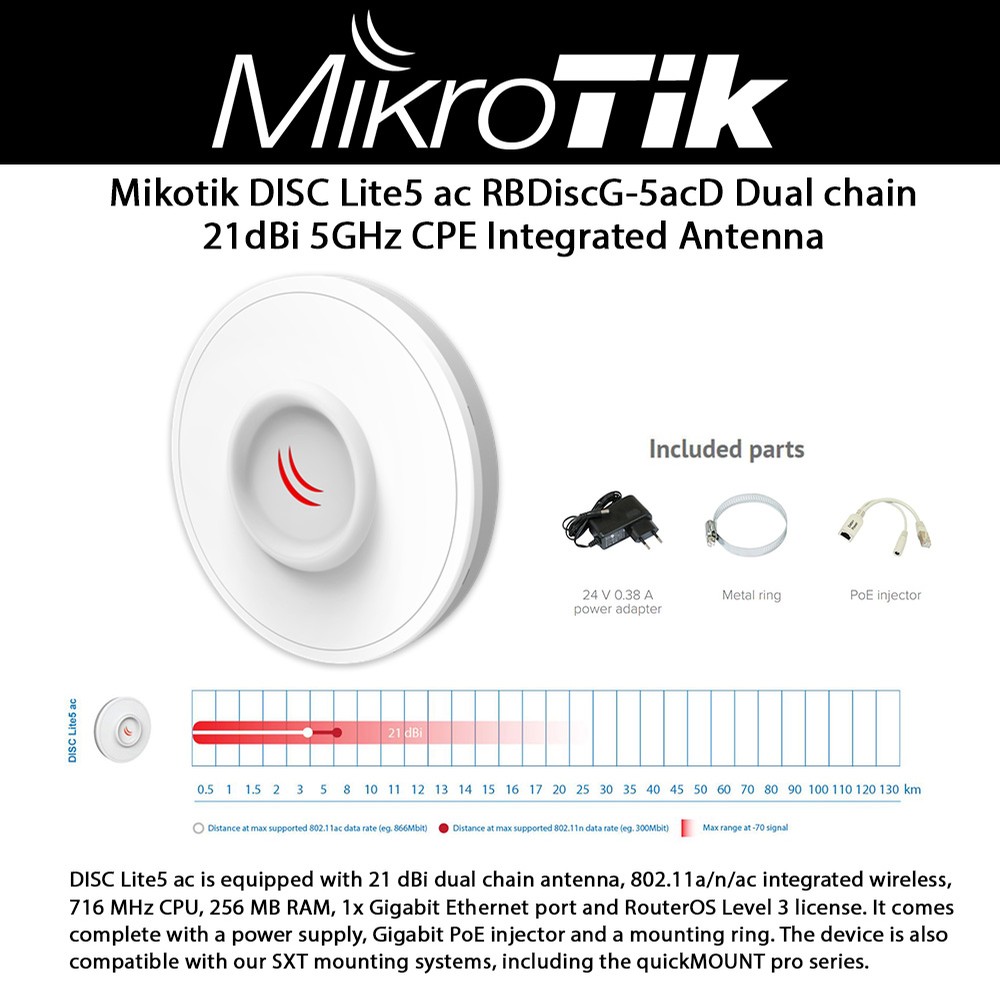

    DISC Lite5 ac is equipped with 21 dBi dual chain antenna, 802.11a/n/ac integrated wireless, 716 MHz CPU, 256 MB RAM, 1x Gigabit Ethernet port and RouterOS Level 3 license. It comes complete with a power supply, Gigabit PoE injector and a mounting ring. The device is also compatible with our SXT mounting systems, including the quickMOUNT pro series.

    The DISC is an outdoor wireless system with a built in directional antenna ans it can be used as a CPE or for Point to Point links.

    Architecture    ARM 32bit
    CPU    IPQ-4018
    CPU core count    4
    CPU nominal frequency    716 MHz
    Dimensions    265mm, height: 80mm
    License level    3
    Operating System    RouterOS
    Size of RAM    256 MB
    Storage size    16 MB
    Storage type    FLASH
    Tested ambient temperature    -40°C .. +70°C

    Max Power consumption    7W
    PoE in    Passive PoE
    PoE in input Voltage    10-30 V
    Number of DC inputs    1 (PoE-IN)

    Wireless 5 GHz number of chains    2
    Wireless 5 GHz standards    802.11a/n/ac
    Antenna gain dBi for 5 GHz    21
    Wireless 5 GHz chip model    IPQ-4018

    10/100/1000 Ethernet ports    1

    Package contents
    1x 24V 0.38A power adapter
    1x Metal ring
    1x Gigabit PoE injector
