MODEL: ACGPSA

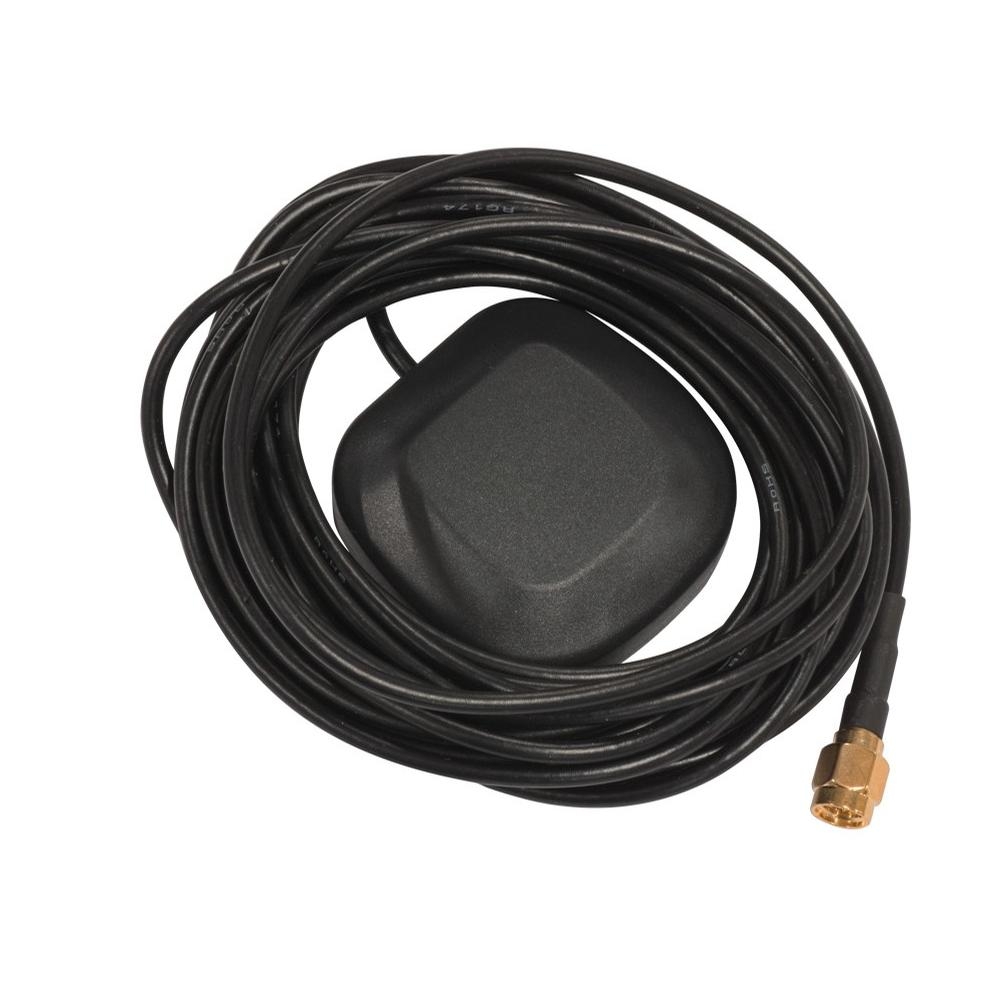

With introduction of our new LtAP mini with GPS support, we are now also offering a standalone active GPS antenna, that works in 1575.4 MHz spectrum. Antenna size is 46.5 mm x 26.5 mm x 12.5 mm with IP67 rating and includes internal magnet and double sided tape, so it can easily be attached to various surfaces. It has a long 5m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).
Product code | ACGPSA |
Center frequency | 1575.42 Mhz |
Gain | 26 dB |
Water resistance | 100% waterproof (IP67) |
Connector | SMA |
Cable | 5 m RG-174/U (standard) |
Standard mounting | Magnetic base |
DC voltages | 3 V +-0.3 V |
DC current | 8 mA max |
Dimensions | 46.5 x 46.5 x 12.5 mm |
Weight | 35 g (without cable), 120 g (with cable and connector) |
Operating temperature | -40°C .. +85°C tested |
